| Item | Clevis Hanger |
|---|---|
| Cushioned | No |
| Features | Clevis Bolt Spacer Included, V Block Design |
| For Insulated Pipe | Yes |
| For Pipe Size | 6" |
| For Threaded Rod Size | 3/4" |
| For Use On | Pipe |
| Hanger Material | Steel |
| Hanger Type | Clevis |
| Included Insulation Thickness | 1 1/2" |
| Insulation Od | 1" to 3" |
| Length | 10 1/4" |
|---|---|
| Load Capacity | 750 lbs. |
| Material | Malleable Iron |
| Max. Load | 750 lbs. |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 40°F |
| Overall Height | 10 1/4" |
| Overall Width | 10 1/4" |
| Series | FIGURE 260 ISS Series |
| standard | ASTM E84 CLASS 1-25/60, UL E94 V |

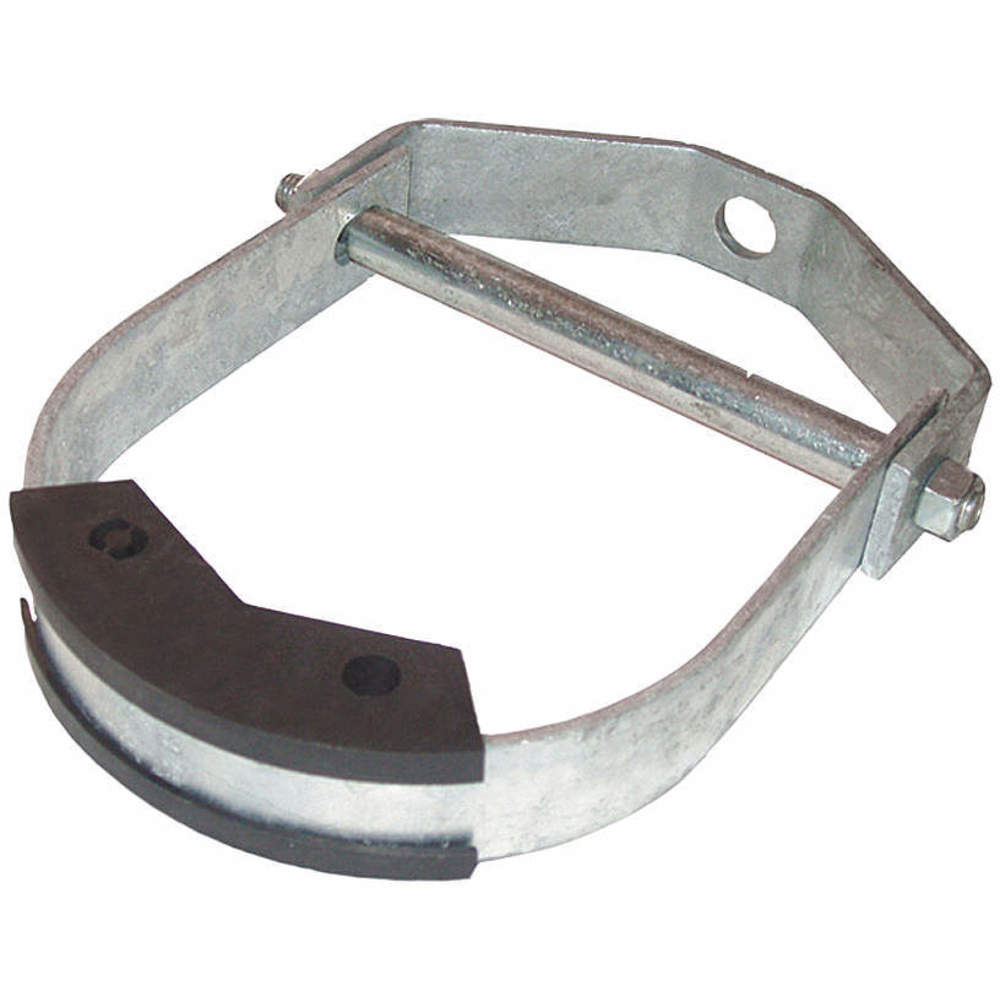

Anvil 0500173380 FIG 260 ISS clevis hanger with insulation saddle system is used in industrial and commercial settings to provide reliable support and insulation for piping systems. It offers stability, thermal efficiency and overall system integrity for various applications.
| Height (cm) | 26.04 |
|---|---|
| Length (cm) | 6.22 |
| Width (cm) | 26.04 |
| HS Code | 7326908530 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.53 |
| Style | Model | Material | For Pipe Size | Max. Load | Load Capacity | Overall Width | For Threaded Rod Size | Insulation Od | Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0500173307 | Malleable Iron | 2" | 550 lbs. | 550 lbs. | 4 1/2" | 3/8" | - | - | $45.34 | |
| A | 0500173323 | Malleable Iron | 3" | 550 lbs. | 550 lbs. | 6 1/2" | 1/2" | 1" to 2" | - | $55.30 | |
| A | 0500173349 | Malleable Iron | 4" | 550 lbs. | 550 lbs. | 7.81" | 5/8" | 1" to 2" | - | $71.41 | |
| A | 0500173364 | Malleable Iron | 5" | 750 lbs. | 750 lbs. | 8.94" | 5/8" | 1" to 2" | - | $105.74 | |
| A | 0500173406 | Malleable Iron | 8" | 1100 lbs. | 1100 lbs. | 12.69" | 3/4" | 1" to 4" | - | $159.70 | |
| A | 0500360300 | Steel | 2" | 550 lbs. | 550 lbs. | 4 1/2" | 3/8" | - | Galvanized | $49.53 | |
| A | 0500360326 | Steel | 3" | 550 lbs. | 550 lbs. | 6 1/2" | 1/2" | 1" to 2" | Galvanized | $60.00 |
