| Item | Reducing Coupling |
|---|---|
| Application | Natural Gas, Oil |
| Basic Fitting Shape | Reducer Coupling |
| Body Material | Forged Steel |
| Class | Class 3000 |
| Color | Black |
| Connection Type | Socket Weld |
| Fitting Side A Gender | Female |
| Fitting Side A Nominal Pipe Size | 1/2" |
| Fitting Side A Type | Socket |
| Fitting Side B Gender | Female |
| Fitting Side B Nominal Pipe Size | 1/4" |
| Fitting Side B Type | Socket |
| For Pipe Schedule | 80 |
|---|---|
| Includes Pre-applied Thread Sealant | No |
| Includes Seal | No |
| Max. Pressure | 3000 psi |
| Maximum Operating Pressure | 2000 psi @ 150°F |
| Number Of Holes | 2 |
| Pipe Fitting Material | Forged Steel |
| Pipe Size | 1/2" x 1/4" |
| Saturated Steam Pressure | 300 psi @ 550 Degrees F |
| Specific Fitting Shape | Reducing Insert |
| Temp. Range | -20°F to +550°F |
| standard | ANSI B1.20.1, ASME B16.11, ASTM A105, ASTM A182, ASTM A350 |
| Height (cm) | 3.18 |
|---|---|
| Length (cm) | 3.18 |
| Width (cm) | 1.65 |
| HS Code | 7307199060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.081 |
| Style | Model | Class | Pipe Size | Connection Type | Outside Dia. | Material | Body Material | Max. Pressure | Number Of Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0362175408 | Class 3000 | 2" x 1" | Socket Weld | 2.906" | - | Forged Steel | 3000 psi | 2 | $71.41 | |
| A | 0362175804 | Class 3000 | 2" x 1 1/4" | Socket Weld | 2.906" | - | Forged Steel | 3000 psi | 2 | $67.03 | |
| A | 0362176208 | Class 3000 | 2" x 1 1/2" | Socket Weld | 2.906" | - | Forged Steel | 3000 psi | 2 | $67.03 | |
| A | 0362179202 | Class 3000 | 2 1/2" x 1" | Socket Weld | 3.547" | - | Forged Steel | 3000 psi | 2 | $225.87 | |

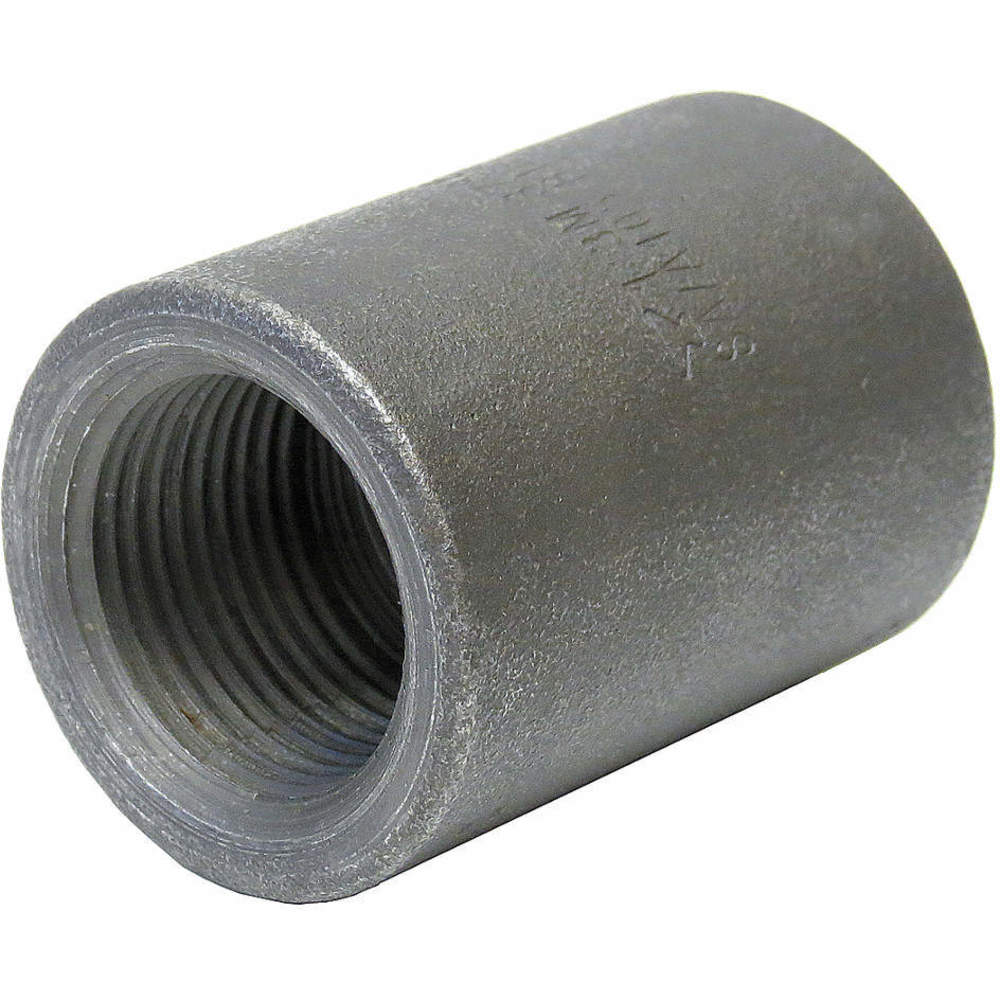

| B | 0361181209 | Class 3000 | 4" x 1 1/2" | Threaded | 5 1/2" | - | Forged Steel | 3000 psi | 2 | $445.55 | |
| B | 0361181308 | Class 3000 | 4" x 2" | Threaded | 5 1/2" | - | Forged Steel | 3000 psi | 2 | $445.55 | |
| B | 0361181407 | Class 3000 | 4" x 2 1/2" | Threaded | 5 1/2" | - | Forged Steel | 3000 psi | 2 | $445.55 |
