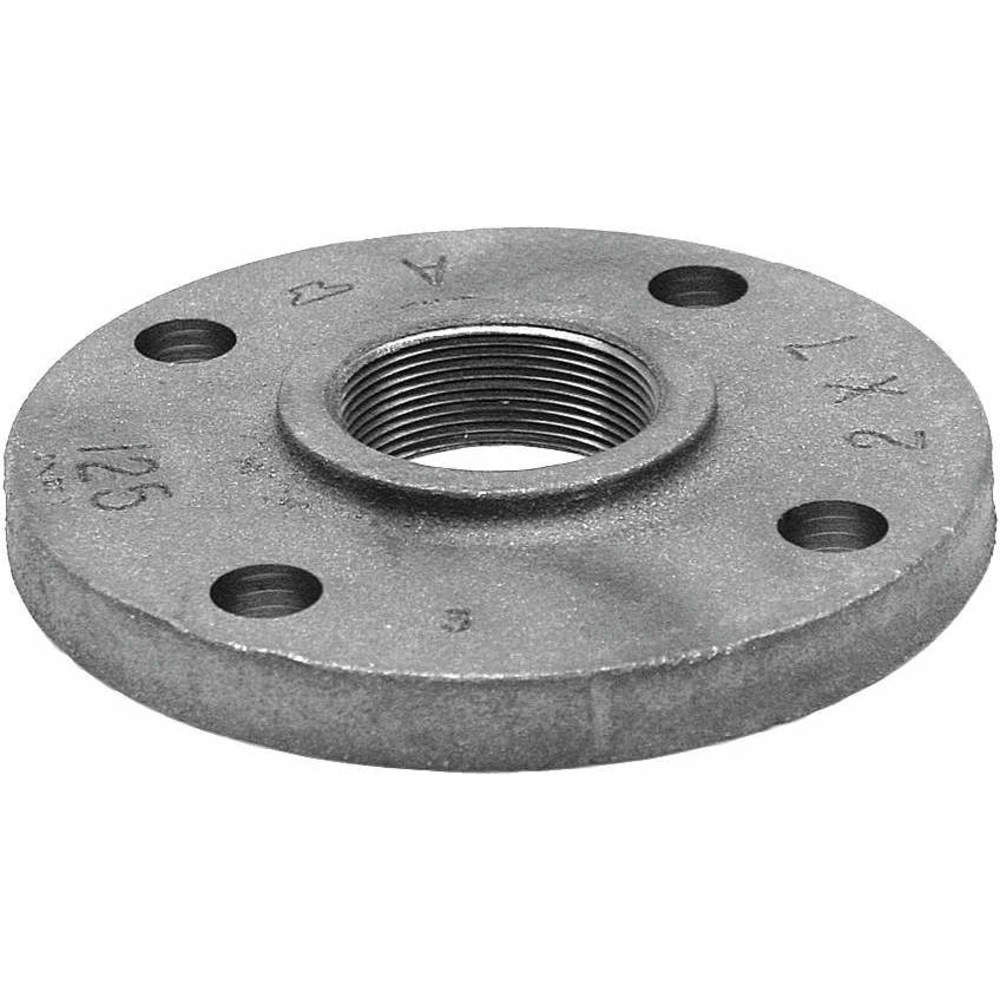

| Item | Reducing Companion Flange, Threaded |
|---|---|
| Application | Fire Protection, Non-Potable Water |
| Basic Fitting Shape | Flange |
| Body Material | Cast Iron |
| Class | Class 125 |
| Connection Type | Flanged x FNPT |
| Fitting Connection Type | Flanged x FNPT |
| Flange Outside Diameter | 11" |
| Max. Pressure | 175 psi @ -20° To 150°F |
| Maximum Operating Pressure | 175 psi |
| Number Of Bolt Holes | 4 |
|---|---|
| Number Of Holes | 4 |
| Outside Dia. | 11" |
| Overall Length | 11" |
| Pipe Fitting Material | Cast Iron |
| Pipe Size | 2 1/2" |
| Saturated Steam Pressure | 125 psi |
| Specific Fitting Shape | Reducing Companion Flange |
| Standards | Asme B16.4, Fm Approved, Ul Listed |
| Temp. Range | -20°F to +150°F |
| Height (cm) | 31.42 |
|---|---|
| Length (cm) | 27.94 |
| Width (cm) | 27.94 |
| HS Code | 7307110030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 9.702 |
| Style | Model | Pipe Size | Number Of Holes | Overall Length | Outside Dia. | Basic Fitting Shape | Connection Type | Class | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0308006501 | 1" | 4 | 5" | 5" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $212.49 | |
| A | 0308006600 | 1 1/4" | 4 | 5" | 5" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $226.34 | |
| A | 0308006907 | 1" | 4 | 6" | 6" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $202.77 | |
| A | 0308007004 | 1 1/4" | 4 | 6" | 6" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $194.49 | |
| A | 0308007202 | 1 1/2" | 4 | 6" | 6" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $167.09 | |
| A | 0308007400 | 1 1/2" | 4 | 7" | 7" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $214.13 | |
| A | 0308007608 | 2" | 4 | 7" | 7" | Flange | Flanged x FNPT | Class 125 | -20°F to +150°F | $158.96 |
