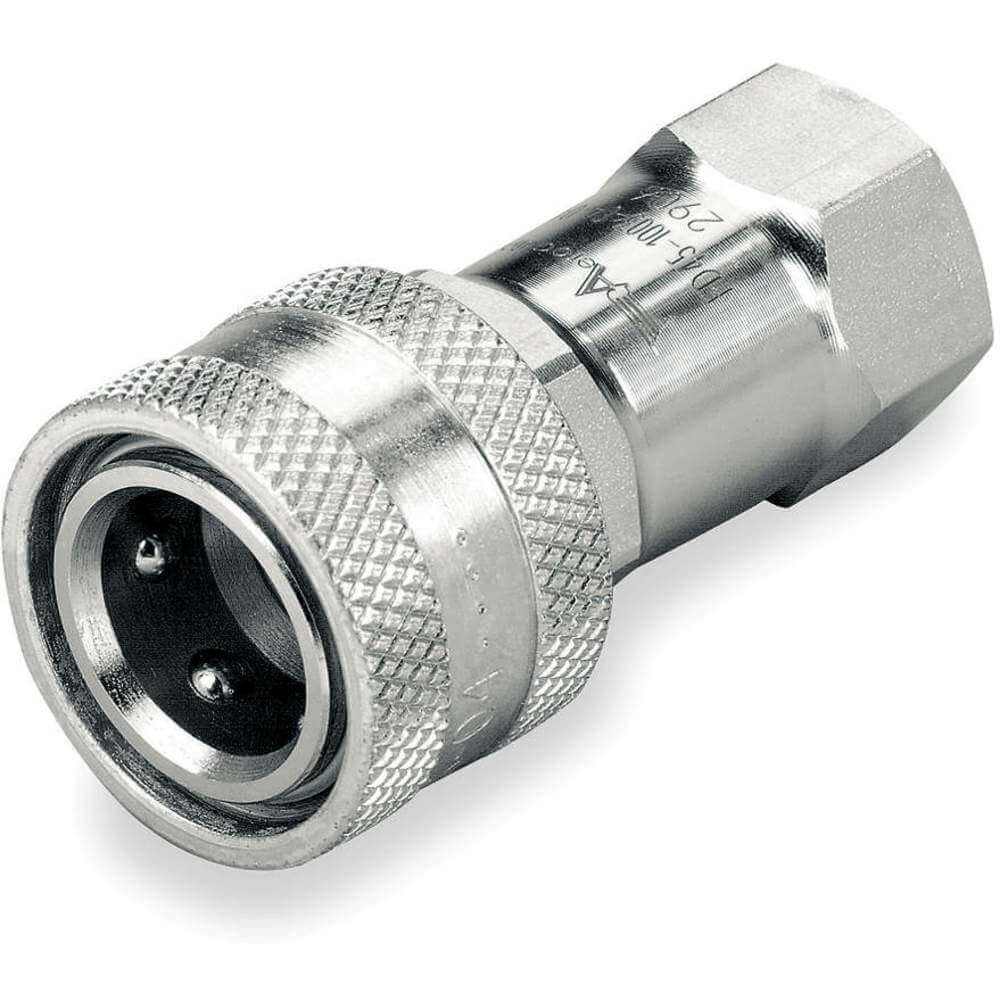

| Item | Hydraulic Coupler Body |
|---|---|
| Bearing Type | Ball |
| Body Material | Steel |
| Body Size | 1/4" |
| Connection Type | NPT |
| Coupling Component | Plug |
| Coupling Locking Type | Sleeve |
| Coupling Size | 1/4" |
| Finish | Trivalent Chromium Zinc Plated |
| Finish/coating | Trivalent Chromium Zinc |
| Fitting Type | FNPT |
| Flow Rate | 3 GPM |
| For Use With | All Hydraulic Applications |
| Hose Fitting Gender | Female |
| Includes Bearing | Yes |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Durable Ball |
| Max. Flow Rate | 11 LPM |
| Max. Pressure | 5000 psi |
| Max. Working Pressure @ 70 F | 5000 psi |
|---|---|
| Maximum Vacuum | 28 in. hg |
| Operating Temp. Range | -40°F to +250°F |
| Overall Length | 1 17/32" |
| Parker Interchange | H2-63 |
| Pull Ring Material | PTFE |
| Safeway Interchange | S101-2 |
| Seal Material | Nitrile |
| Seal Type | Captive Valve |
| Seals | Captive Valve |
| Series | FD45 Series, B Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Snap-tite Interchange | 72N4-4F |
| Temp. Range | -40°F to +250°F |
| Thread Size | 1/4"-18 |
| Type | Nipple Tip |
| Valve Design | Poppet |
| Valve Type | Poppet |
| Standards | ISO 7241-1 SERIES B |
| Height (cm) | 4.83 |
|---|---|
| Length (cm) | 11.94 |
| Width (cm) | 9.4 |
| HS Code | 7307995045 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.036 |
| Style | Model | Coupling Size | Type | Max. Pressure | Body Size | Pipe Size | Body Material | Connection Type | Valve Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

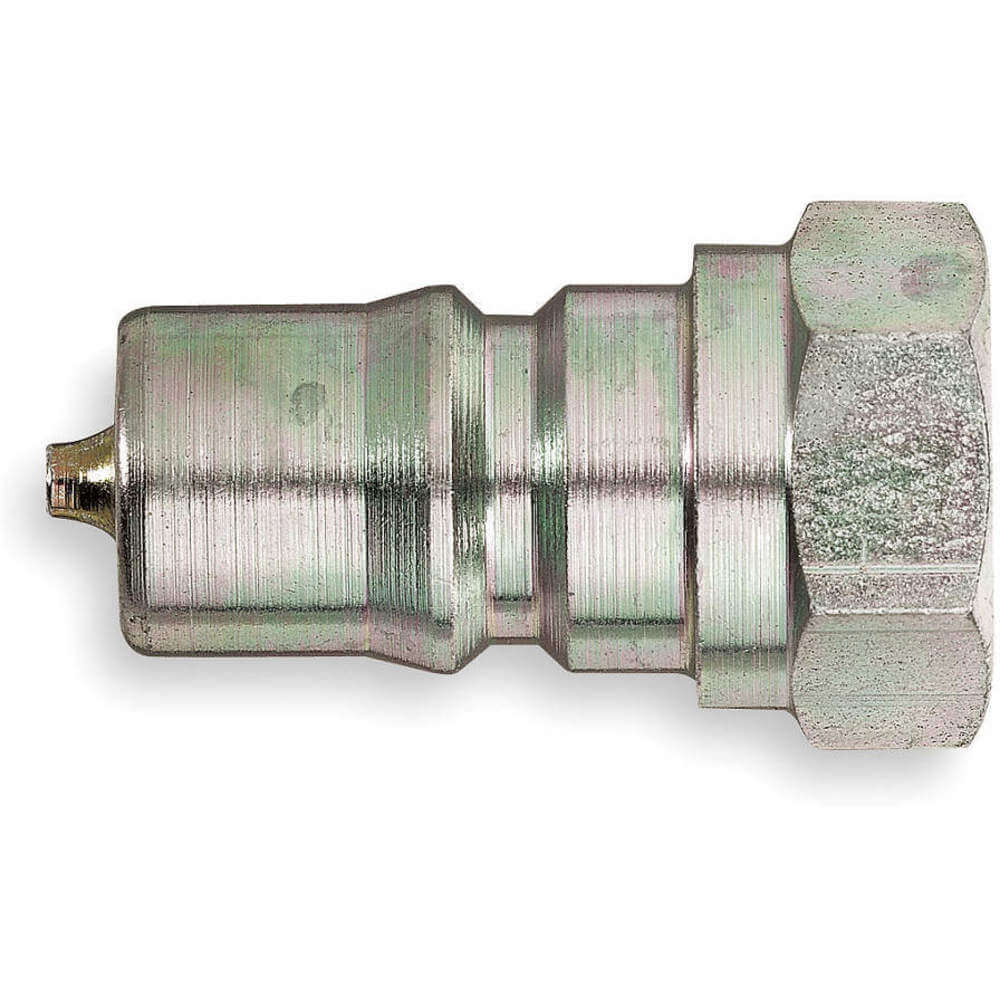

| A | FD45-1002-0606 | 3/8" | Nipple Tip | 4000 psi | 3/8" | 3/8" | Steel | NPT | Poppet | $41.60 | |
| A | FD45-1002-0810 | 5/8" | Nipple Tip | 4000 psi | 5/8" | - | Steel | NPT | Poppet | $44.87 | |
| B | FD45-1003-0404 | 1/4" | Coupler Body | 5000 psi | 1/4" | - | Steel | NPT | Poppet | $75.59 | |
| B | FD45-1003-0606 | 3/8" | Coupler Body | 4000 psi | 3/8" | 3/8" | Steel | NPT | Poppet | $85.57 | |
| B | FD45-1003-0810 | 5/8" | Coupler Body | - | - | - | Steel | NPT | Poppet | $97.31 | |
| A | FD45-1002-1212 | 3/4" | Nipple Tip | 4000 psi | 3/4" | 3/4" | Steel | NPT | Poppet | $71.41 | |
| A | FD45-1002-1616 | 1" | Nipple Tip | 4000 psi | - | 1" | Steel | NPT | Poppet | $112.43 |
