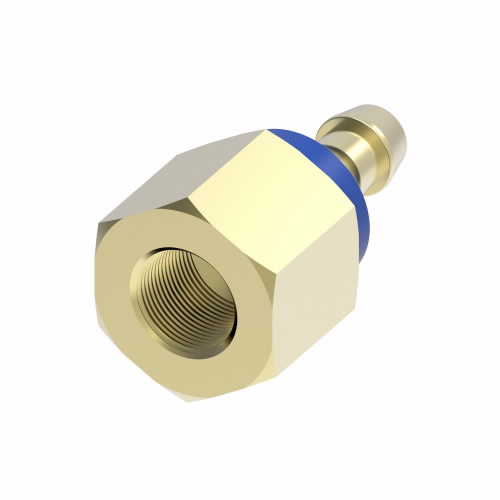

| Item | Hydraulic Hose Fitting |
|---|---|
| Angle | Straight |
| Barb Size | 3/8" |
| Compatible Hose Id | 0.38" |
| Compatible Hoses | 2556 Hose |
| Construction Style | Reusable |
| Dust Cap Part Number If Included | FF91126-6 |
| End Gender 1 | Female |
| End Size 1 | 3/8" |
| End Type 1 | Nptf |
| End Type 2 | Line, Hose, Tube |
| Fitting Material | Brass x Brass |
| Fitting Shape | Straight |
| For Hose Dash Size | -6 |
| For Hose I.d. | 3/8" |
| For Use With Hose Series | 2556 Series, 2565 Series, 2575 Series, FC332 Series, FC647 Series, H201 Series |
| Height | 22/25" |
| Hex Size 1 | 22/25" |
| Hose Cut-off Factor | 0.83" |
| Hose Dash Size | -6 |
| Hose Fitting A Connection Type | Hose Barb |
| Hose Fitting A Gender | Male |
|---|---|
| Hose Fitting A Size | 3/8" |
| Hose Fitting B Connection Type | NPT |
| Hose Fitting B Gender | Female |
| Hose Fitting B Size | 3/8" |
| Inside Dia. | 0.3" |
| Item Type | Fitting Assembly |
| Length | 1.7" |
| Material | Brass |
| Material Grade | Ca360 |
| Max. Working Pressure @ 70 F | 300 psi |
| Outside Diameter | 22/25" |
| Overall Length | 1.7 mm |
| Reusable | Yes |
| Thread Sealant | No |
| Thread Size | 3/8"-18 |
| Thread Size 1 | 3/8"-18 |
| Thread Type | NPT |
| Width | 22/25" |
| Standards | SAE/JIC |
| Height (cm) | 2.24 |
|---|---|
| Length (cm) | 4.32 |
| Width (cm) | 2.24 |
| HS Code | 7412200045 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.054 |
