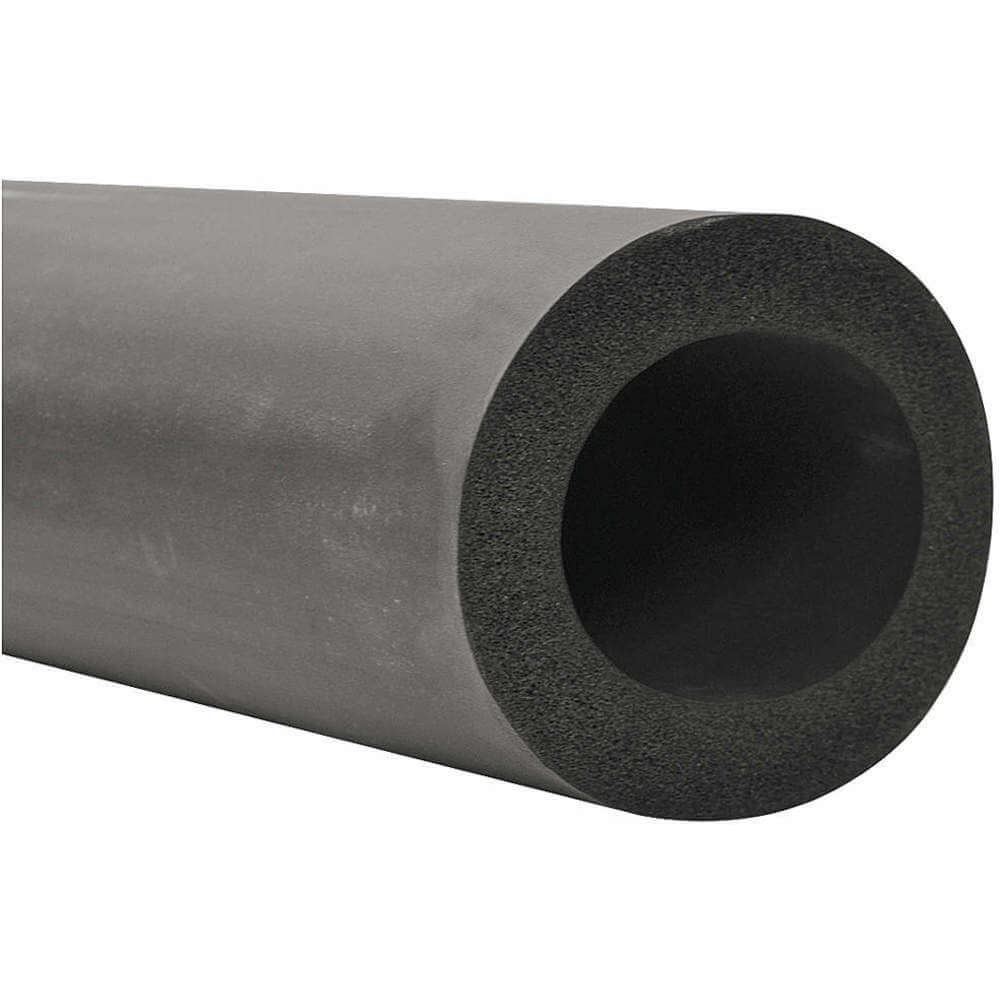

| Item | Pipe Insulation |
|---|---|
| Approx. "r" Value | 4.08 |
| Clean Room Class | Not Applicable |
| Color | Black |
| Features | Lightweight, Non Corrosive To Copper And Stainless Steel, Requires No Vapor Barrier, And Paintable |
| Fits Pipe Size | 6" |
| Flame Spread Index | 20 |
| Flexibility | Flexible |
| Foam Cell Type | Closed |
| For Copper Tube Size | 6 5/8" |
| For Iron Pipe Size | 6" |
| For Material Type | Copper, Stainless Steel |
| For Piping System | Chilled Water, Hot Liquid, Refrigeration |
| Form | Tube |
| Inside Diameter | 6 5/8" |
| Installation Style | Unslit |
| Insulation Material | EPDM |
| Insulation Nominal I.d. | 6 5/8" |
| Insulation R-value | 4.08 |
|---|---|
| Insulation Type | Flexible |
| K Value | 0.25 btu |
| Length | 6" |
| Material | EPDM |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | -297°F |
| Outdoor Weather Protection | None Required |
| Outside Diameter | 8 5/8" |
| Overall Length | 6 ft. |
| Plenum Rating | Plenum Rated |
| Resistance Properties | Corrosion Resistant, UV Resistant |
| Smoke Developed Index | 50 |
| Temp. Range | -297°F to +300°F |
| Thickness | 1" |
| Wall Thickness | 1" |
| Standards | ASTM C534, ASTM C692, ASTM D635, ASTM E84, ASTM E96 |
| Height (cm) | 23.62 |
|---|---|
| Length (cm) | 186.94 |
| Width (cm) | 23.62 |
| HS Code | 4016996000 |
|---|---|
| Weight (kg) | 2.7675 |
| Style | Model | For Copper Tube Size | Thickness | Approx. "r" Value | Insulation R-value | Insulation Nominal I.d. | For Tube O.d. | For Tube I.d. | For Iron Pipe Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 510-AC11810 | 1 1/8" | 1" | 4.08 | 4.08 | 1 1/8" | 1 1/8" | 1" | - | $82.53 | |
| A | 200-AC1438 | 1/4" | 3/8" | 1.53 | 1.53 | - | - | 1/8" | - | $10.86 | |
| A | 202-AC3838 | 3/8" | 3/8" | 1.53 | 1.53 | - | 3/8" | - | - | $12.10 | |
| A | 204-AC1238 | 1/2" | 3/8" | 1.53 | 1.53 | 1/2" | 1/2" | 3/8" | - | $12.71 | |
| A | 206-AC5838 | 5/8" | 3/8" | 1.53 | 1.53 | 5/8" | 5/8" | 1/2" | - | $14.47 | |
| A | 208-AC3438 | 3/4" | 3/8" | 1.53 | 1.53 | 3/4" | - | - | - | $15.00 | |
| A | 210-AC7838 | 7/8" | 3/8" | 1.53 | 1.53 | - | - | - | 1/2" | $15.71 |
