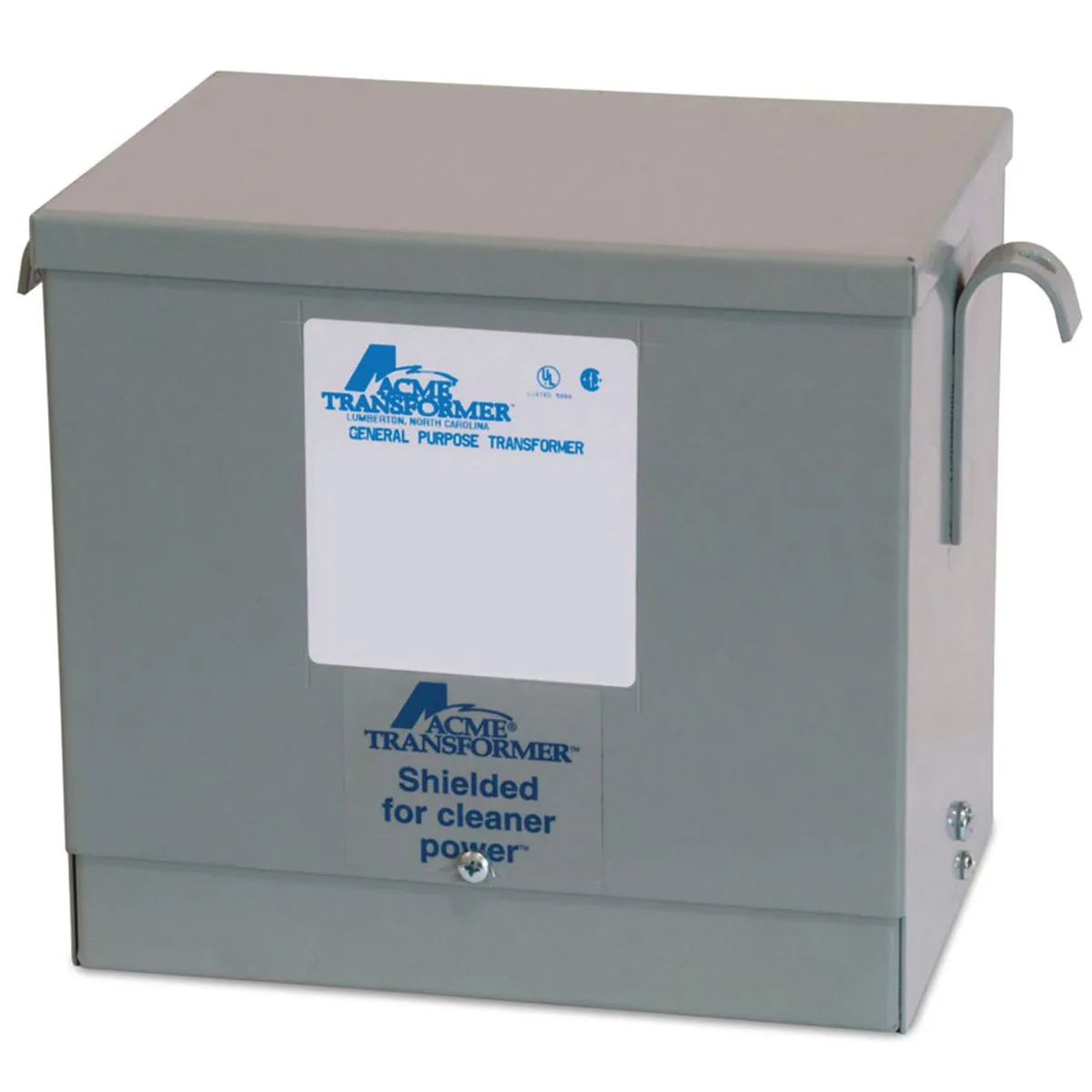

| Item | Drive Isolation Transformer |
|---|---|
| Anfc Taps | 1 |
| Bnfc Taps | 1 |
| Carton Quantity | 1 |
| Color | Gray |
| Construction | Encapsulated |
| Depth | 7 2/5" |
| Dimensions | 7.37" x 19.25" x 15.21" |
| Electrostatic Shield | Shielded |
| Enclosure Material | Steel |
| Features | Copper Terminations For Trouble Free Operation |
| Frequency | 60 Hz |
| Height | 15.21" |
| Input Voltage | 460V AC |
| Ip Rating | IP14 |
| Kva | 7.5 kVA |
| Length | 7.37" |
| Max Temperature Rise | 115°C |
| Max. Temp. | 115°C |
| Mounting Loctaion | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 3R |
| Nema Rating | Nema 3R |
|---|---|
| Outdoor Rated - Transformer | Yes |
| Output Voltage | 133/230V |
| Overall Depth | 7.37" |
| Overall Height | 15.21" |
| Overall Width | 19 1/4" |
| Pallet Quantity | 8 |
| Phase | Three |
| Power Rating | 7.5 kVA |
| Primary Voltage | 460V |
| Secondary Voltage | 230/133V |
| Shielded / Unshielded | Shielded |
| Taps % Steps | 5% |
| Temperature Rise | 239°F |
| Ul Insulation Class | 180°C |
| Ul Standard | UL 506 |
| Va Rating - Transformer | 7.5 kVA |
| Voltage Function - Transformer | Step Down |
| Width | 19.25" |
| Winding Material | Aluminum |
| Winding Material - Transformer | Aluminum |
| Standards | CSA CERTIFIED C22.2 NO. 47, UL 506 |
| Height (cm) | 38.63 |
|---|---|
| Length (cm) | 18.72 |
| Width (cm) | 48.9 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 81 |
