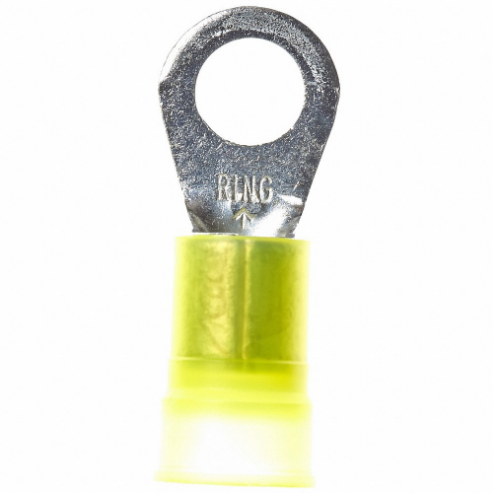

| Item | Ring Terminal |
|---|---|
| Barrel Length | 0.47" |
| Barrel Style | Brazed |
| Color Code | Yellow |
| Connection Material | Copper |
| Connection Orientation | Straight |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Hole Spacing | 0.53" |
| Insulated | Insulated Barrel |
| Insulation | Nylon |
| Insulation Color | Yellow |
| Insulation Coverage | Partial Coverage |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Max. Temp. | 221°F |
|---|---|
| Max. Voltage | 600V |
| Maximum Voltage | 1000V |
| Maximum Wire Size | 4 AWG |
| Minimum Wire Size | 4 AWG |
| Overall Length | 0.74" |
| Rohs Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Terminal Connection | Crimp |
| Terminal Connection Type | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard |
| Termination | Crimp Termination Only |
| Tongue Length | 0.27" |
| Tongue Thickness | 0.08" |
| Tongue Width | 0.68" |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 1.88 |
| Width (cm) | 2.54 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.1105 |
| Style | Model | Insulation Color | Stud Size | Terminal Type | Color Code | Overall Length | Tongue Width | Barrel Length | Color | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7100164997 | Yellow | #4 | Standard | Yellow | 3/5" | 0.2" | - | - | 1000 | $2,357.89 | |
| B | 7100165003 | Yellow | #8 | Standard | Yellow | 0.69" | 1/4" | - | - | 1000 | $2,357.89 | |
| C | 7100164999 | Yellow | #6 | Standard | Yellow | 3/5" | 0.2" | - | - | 1000 | $2,429.57 | |
| D | 7100077614 | Red | #10 | Standard | Red | 1.26" | 0.47" | 0.31" | - | 200 | $262.87 | |
| E | 7010397559 | Red | - | Standard | Red | 1.26" | 0.47" | 0.31" | - | 200 | $264.34 | |
| F | 7000132144 | Red | 5/16" | Standard | Red | 1.38" | 0.59" | 0.31" | Red | 200 | $546.71 | |
| G | 7000132147 | Blue | 1/4" | Standard | Blue | 1 1/2" | 0.47" | 0.39" | Blue | 200 | $561.37 |
