| Item | Pin Terminal |
|---|---|
| Barrel Inside Dia. | 0.075" |
| Barrel Inside Diameter | 0.09" |
| Color Code | Blue |
| Connection Material | Copper |
| Connection Type | Crimp |
| Diameter (d) | 0.075" |
| Dimension E | 0.47" |
| Insulation Color | Blue |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Max. Insulation Outer Dia. | 0.17" |
| Max. Temp. | 167°F |
|---|---|
| Max. Voltage | 600V |
| Maximum Conductor Size | 14 AWG |
| Min. Conductor Size | 16 AWG |
| Overall Length | 0.9" |
| Seam | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Terminal Connection | Crimp |
| Wire Range | 16 AWG to 14 AWG |
| Wire Size | 16 AWG to 14 AWG |
| standard | UL LISTED/CSA CERTIFIED |
| Height (cm) | 7.11 |
|---|---|
| Length (cm) | 2.29 |
| Width (cm) | 4.32 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.0945 |
| Style | Model | Wire Size | Insulation Color | Color Code | Barrel Inside Dia. | Insulation Material | Insulation Type | Max. Voltage | Seam | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

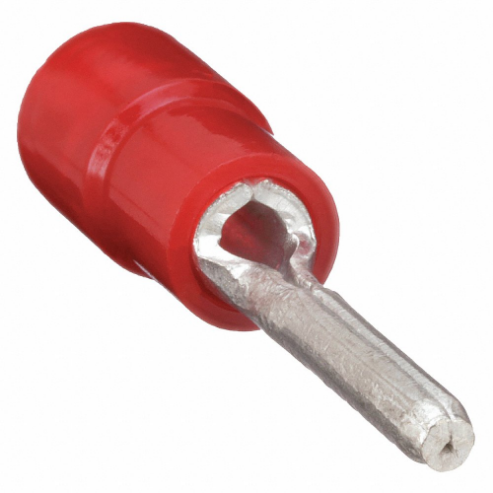

| A | 7100054896 | 22 AWG to 18 AWG | Red | Red | 0.075" | Vinyl | Vinyl | 600V | Butted | 100 | $123.91 | |

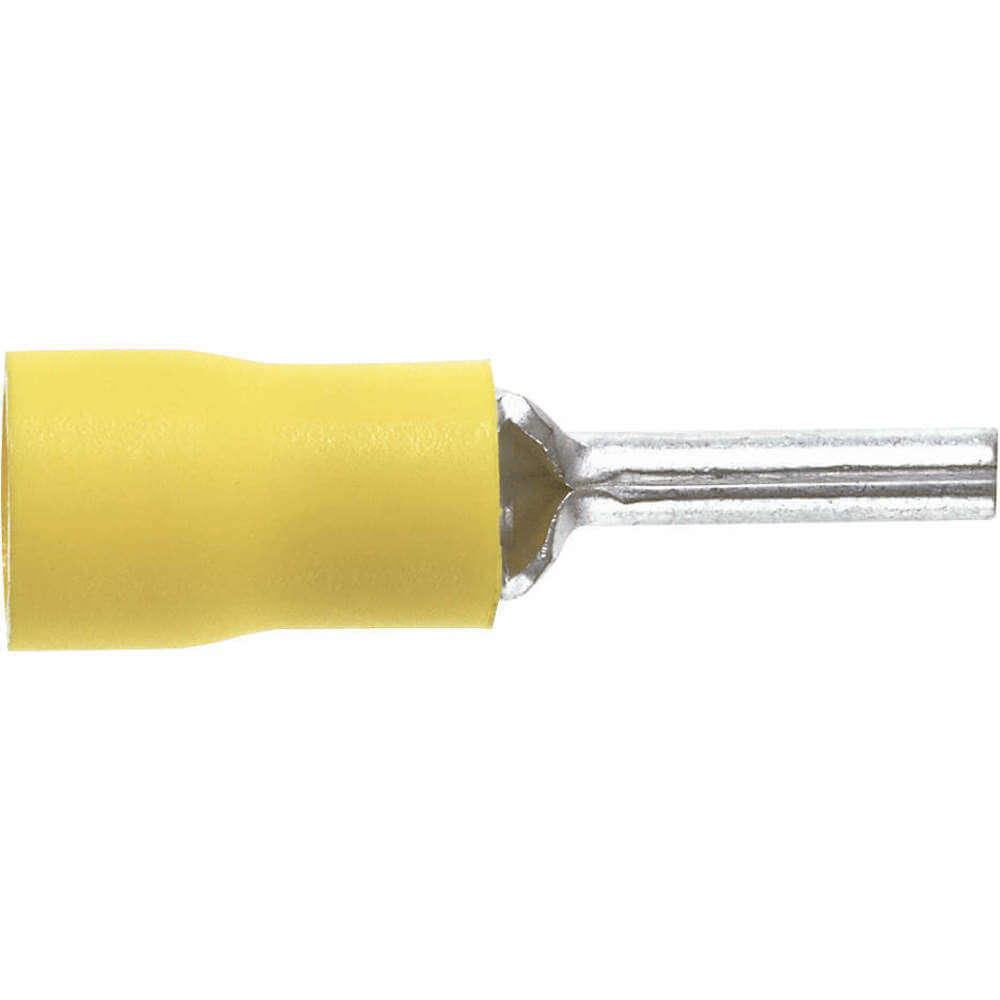

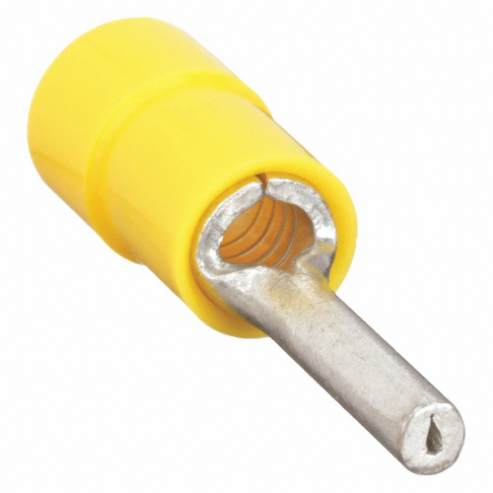

| B | 7100055061 | 12 AWG to 10 AWG | Yellow | Yellow | 0.11" | Vinyl | Vinyl | 600V | Butted | 50 | $120.36 |
