| Item | Insulation Disp. Connector |
|---|---|
| Application | Dry Environment |
| Color | Blue |
| Compatible Installation Tool Model Number | E-9BM |
| Compatible With Product Type | Building Wire, Fixtures, Luminaires, Signs |
| Connector Type | Single U Element |
| Contact Finish | Tin |
| Contact Material | Brass |
| Fill Material | No Fill |
| Flame Retardant | Yes |
| Flammability Rating | V-2 |
| Insulation Material | Polypropylene |
| Material | Polypropylene |
| Max. Insulation Dia. | 0.145" |
| Max. Run Conductors | 2 |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Insulation Diameter | 0.145" |
| Maximum Run Wire Insulation Diameter | 0.145" |
| Maximum Run Wire Size | 16 AWG |
|---|---|
| Maximum Tap Conductors | 2 |
| Maximum Tap Wire Insulation Diameter | 0.145" |
| Maximum Tap Wire Size | 14 AWG |
| Maximum Voltage | 1000V |
| Minimum Run Wire Size | 18 AWG |
| Minimum Tap Wire Size | 22 AWG |
| No. Of Ports | 2 |
| Number Of Ports | 2 |
| Resistance Properties | Moisture Resistant |
| Rohs Compliant | Yes |
| Run Wire Size Range | 18 AWG to 16 AWG |
| Special Features | Self Stripping |
| Tap Wire Size Range | 22 AWG to 14 AWG |
| Type | Dry Environment |
| Ul 94 Flammability Rating | V-2 |
| Wire Range | 18 AWG to 14 AWG |
| Wire Type | Electrical |
| Height (cm) | 9.65 |
|---|---|
| Length (cm) | 8.64 |
| Width (cm) | 8.64 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1575 |
| Style | Model | Number Of Ports | Connector Type | Color | Insulation Material | Fill Material | Max. Voltage | Flame Retardant | Wire Type | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7000005878 | 2 | Single U Element | White | Polypropylene | No Fill | 600V | Yes | Electrical | 5000 | $1,736.19 | |

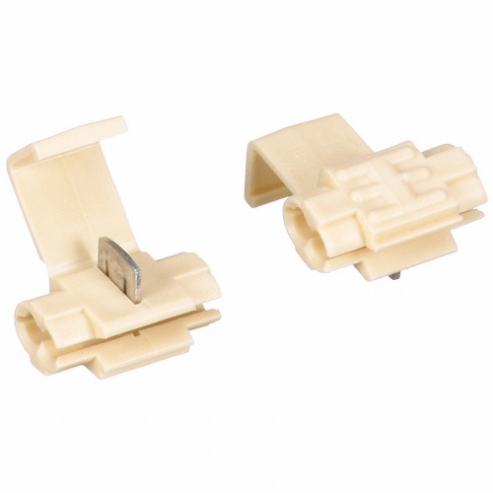

| B | 7000005870 | 2 | Single U Element | Beige | Polypropylene | No Fill | 600V | No | Electrical | 5000 | $1,370.18 | |
| C | 7000148820 | 2 | Pigtail | Red | Polypropylene | No Fill | 600V | Yes | Electrical | 5000 | $3,781.96 | |

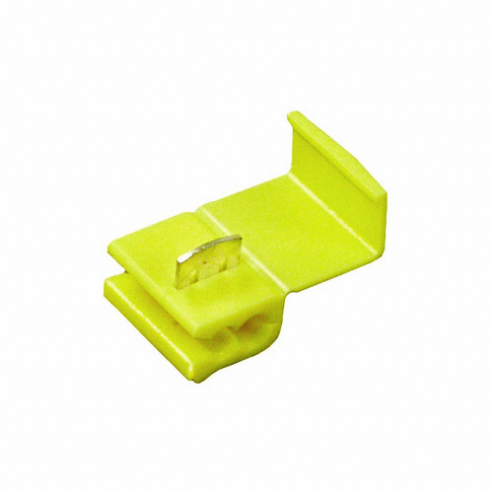

| D | 903-BULK | 2 | Single U Element | Yellow | Polypropylene | No Fill | 600V | No | Electrical | 1000 | $680.43 | |
| E | 902 | 2 | Single U Element | Brown | Polypropylene | No Fill | 600V | Yes | Electrical | 1000 | $683.59 | |

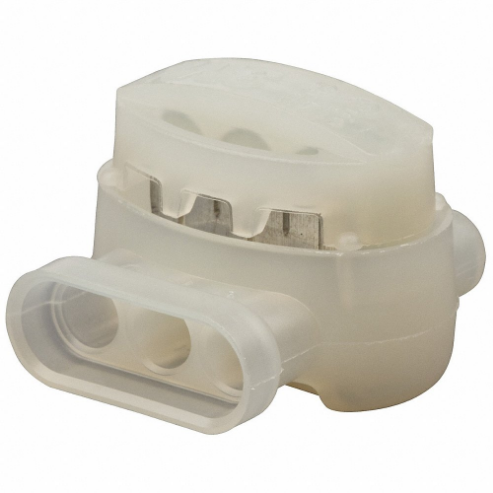

| F | 314U-BOX | 3 | Single U Element | White | Nylon | No Fill | 600V | Yes | Electrical | 500 | $1,126.56 | |
| E | 7100177012 | 2 | Single U Element | Brown | Polypropylene | No Fill | 600V | Yes | Electrical | 500 | $703.24 |
