| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC029A |
| Composition | Cast Iron |
| Duty Cycle | Continuous |
| Efficiency | 93.6% |
| Efficiency Group | Premium |
| Frame | 324TS |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 117/58.7A |
| Full Load Amps @ 50hz | 56.6/57.5A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 50 hp |
| Insulation Class | Class F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3555 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Length | 24 5/16" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 3 3/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Warranty | 3 yrs. |
| Height (cm) | 49.2 |
|---|---|
| Length (cm) | 81 |
| Width (cm) | 57.2 |
| HS Code | 8501528040 |
|---|---|
| Country Of Origin | BR |
| Weight (kg) | 229.95 |
| Style | Model | Frequency | Full Load Amps | Service Factor | Phase | Nameplate Rpm | Motor Type | Hp | Mounting Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

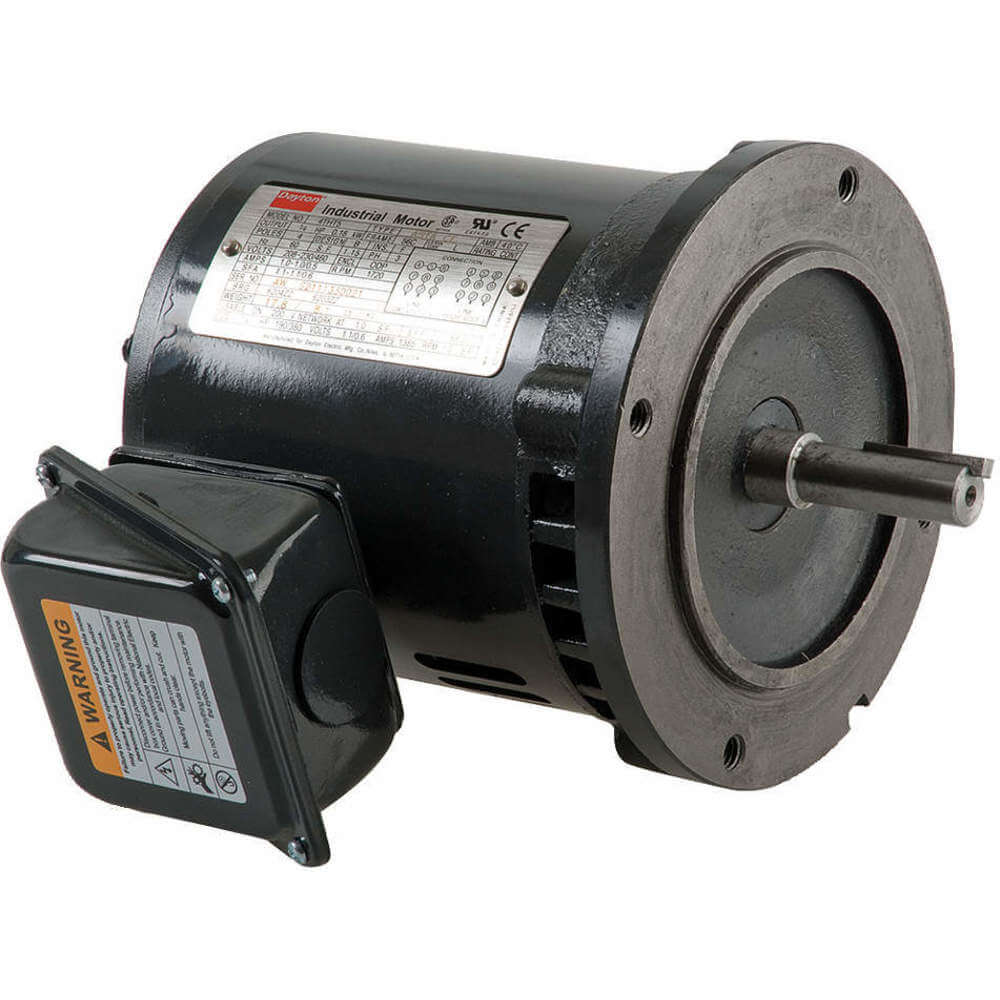

| A | 11W342 | 60 Hz | 8.3/4.2A | 1.15 | 3 | 1750 RPM | Three Phase | 3 hp | Face | $700.46 | |
| B | 02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | $2,341.47 | |
| B | 02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | $3,017.32 | |
| B | 03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | 3 | - | - | - | - | $3,503.76 | |

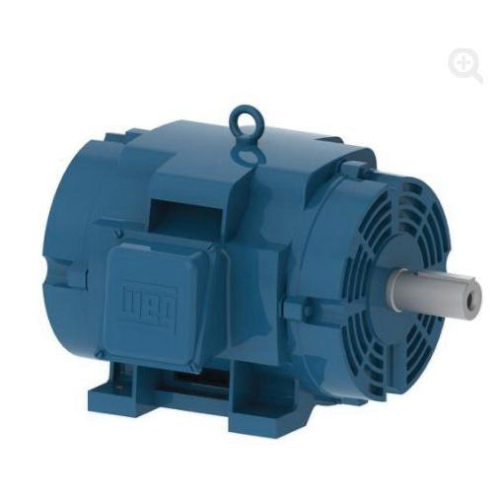

| C | 02018OT3E256T-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | $2,017.15 | |

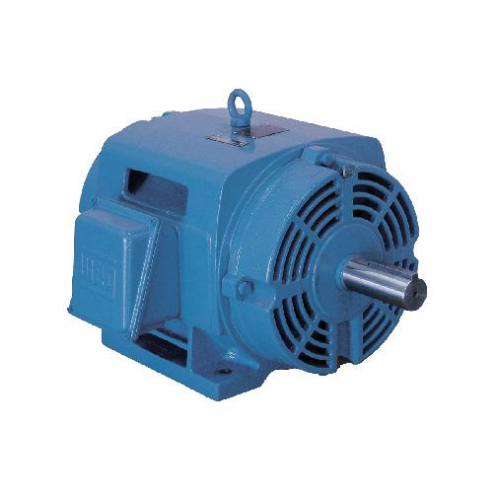

| B | 02036OT3E254T-W40 | 60 Hz | 48.6/24.3A | 1.25 | 3 | 3535 RPM | Three Phase | 20 hp | Rigid Base | $2,096.36 | |
| D | 02518OT3E284T-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | $2,052.25 |
