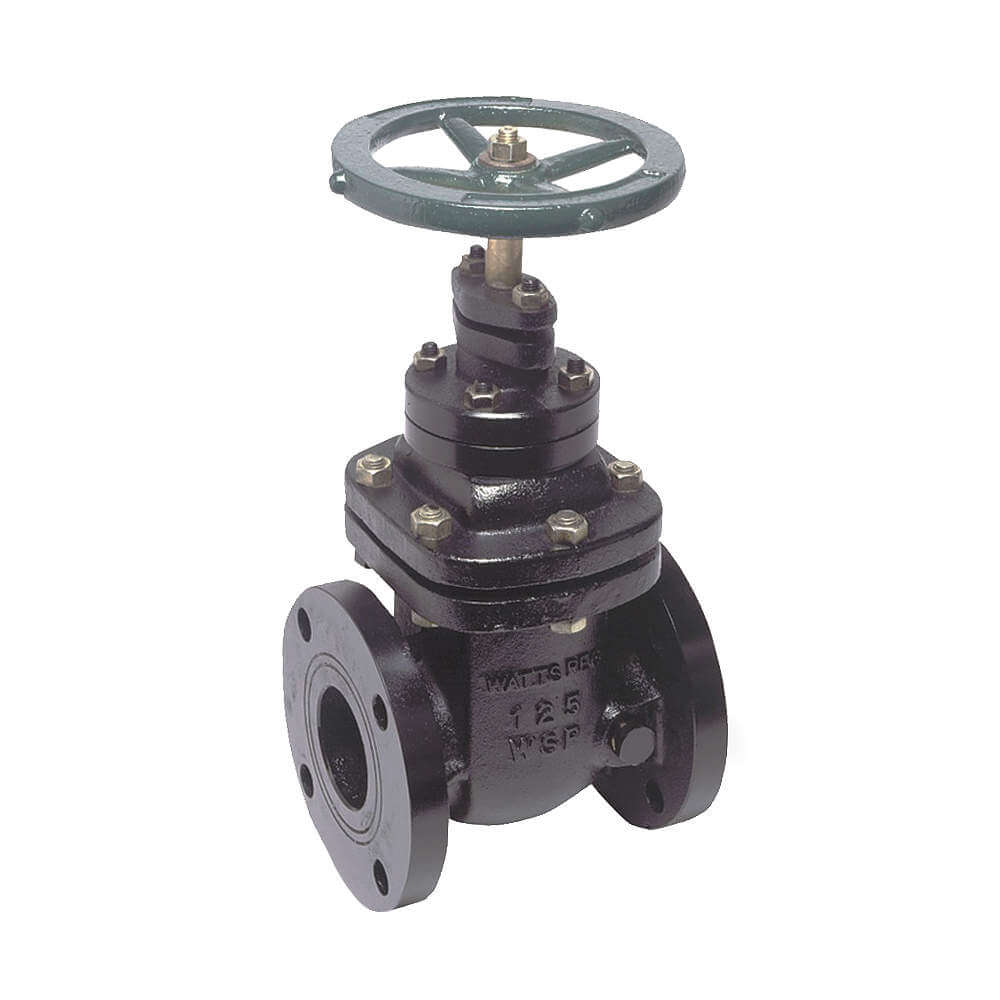

| Item | Gate Valve |
|---|---|
| Ansi Flange Class | Class 250 |
| Body Material | Cast Iron |
| Bonnet Material | Cast Iron |
| Bonnet Style | Bolted |
| Class | Class 250 |
| Connection Size - Side 1 | 4" |
| Connection Size - Side 2 | 4" |
| Connection Type | Class 250 Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Water |
| Handle Dia. | 10" |
| Handle Height | 12 1/2" |
| Handle Material | Cast Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 9" |
| Max. Fluid Temp. | 140°F |
| Max. Pressure (cwp) | 250 psi |
|---|---|
| Max. Water Pressure | 250 psi |
| Media Temp. Range | 33°F to 140°F |
| Nominal Valve Size | 4" |
| Nsf Certifications For Food And Drinking Water | Not Rated |
| Number Of Flange Bolt Holes | 8 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 33°F |
| Overall Length | 9" |
| Pipe Size | 4" |
| Pipe Size - Valves | 4" |
| Standards | Asse, Csa, Fm, Nsf, Ul, Ulc, Usc, Wqa |
| Stem Material | Bronze |
| Stem Type | Outside Screw and Yoke (Os&Y) |
| Top Of Handle To Inlet Center | 22 3/4" |
| Valve Class | Class 250 |
| Wedge Material | Cast Iron |
| Wedge Style | Resilient |
| Height (cm) | 25.91 |
|---|---|
| Length (cm) | 59.69 |
| Width (cm) | 25.91 |
| HS Code | 8481803010 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 40.05 |
| Style | Model | Connection Type | Stem Material | Overall Length | Body Material | For Media | Operating Temperature - Maximum | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | NRS-RW-Gate21/2 | Class 200 Flange | Stainless Steel | 7.5" | Cast Iron | Water | 140°F | $1,492.81 | |
| A | NRS-RW-Gate 3 | Class 125 Flange | Stainless Steel | 8" | Cast Iron | Water | 140°F | $1,556.82 | |
| A | NRS-RW-Gate4 | Class 200 Flange | Stainless Steel | 9" | Cast Iron | Water | 140°F | $1,926.65 | |
| B | OSY-RW-Gate21/2 | Class 250 Flange | Bronze | 7.5" | Cast Iron | Water | 140°F | $2,088.62 | |
| B | OSY-RW-Gate 3 | Flanged | Bronze | - | Cast Iron | Water | - | $1,788.71 |
