| Item | Offset Roller Chain Link |
|---|---|
| Ansi Chain Size | C2120H |
| Application | Baking, Bottling Equipment, Farming Implements, Material Handling Equipment, Packaging, Road Building Machinery, Textile Machinery |
| Chain Construction | Cottered Pin |
| Chain Link Overall Width | 2 6/25" |
| Chain Number | C2120 |
| Chain Overall Width | 2 17/64" |
| Chain Roller Dia. | 7/8" |
| Connecting End To Center Line | 1.21" |
| Display Qty | 1 |
| For Chain Material | Steel |
| For Chain Style (combined) | Yes |
| Heavy Series | Yes |
| Industry Chain Pitch | 3" |
| Inside Pin Dia. | 0.437" |
| Inside Width | 1" |
| Length | 2 1/2" |
| Link Type | Offset |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 5380 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
|---|---|
| Outside Pin Dia. | 0.437" |
| Overall Width | 2 6/25" |
| Pin Contruction | Cottered Pin |
| Pin Length | 2 6/25" |
| Pin Link Plate Thickness | 1.37" |
| Pin Outside Dia. | 7/16" |
| Pin Type | Cottered |
| Pitch | 3" |
| Pitch Type | Double Pitch |
| Plate Height | 1 23/64" |
| Plate Thickness | 7/32" |
| Rivet End To Center Line | 1.03" |
| Roller Chain Link Item | Offset Link |
| Roller Chain Link Type | Heavy Conveyor |
| Roller Chain Standard | ANSI |
| Roller Dia. | 7/8" |
| Roller Link Plate Height | 1.37" |
| Series | Conveyor Series |
| Tensile Strength | 34000 lbf. |
| Type | Double Pitch |
| Width Between Roller Link Plates | 1" |
| Working Load Limit | 5380 lbs. |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 5.69 |
| HS Code | 7315190000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.378 |
| Style | Model | Material | Ansi Chain Size | Pitch | Roller Dia. | Tensile Strength | Temp. Range | Finish | Inside Pin Dia. | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

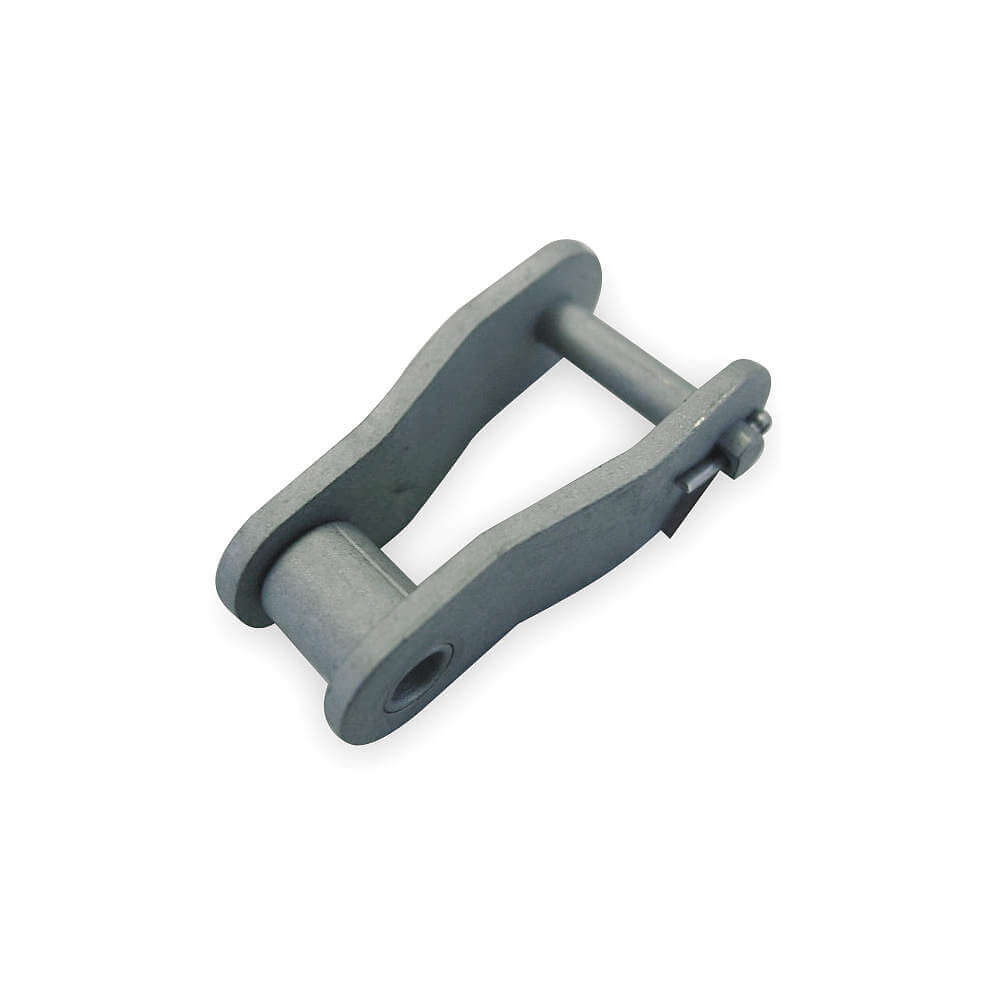

| A | C2060HNEPOL | Steel | C2060H | 1 1/2" | 0.469" | 9040 lbf. | +14°F to +302°F | Coated | 0.234" | 1 | $64.50 | |

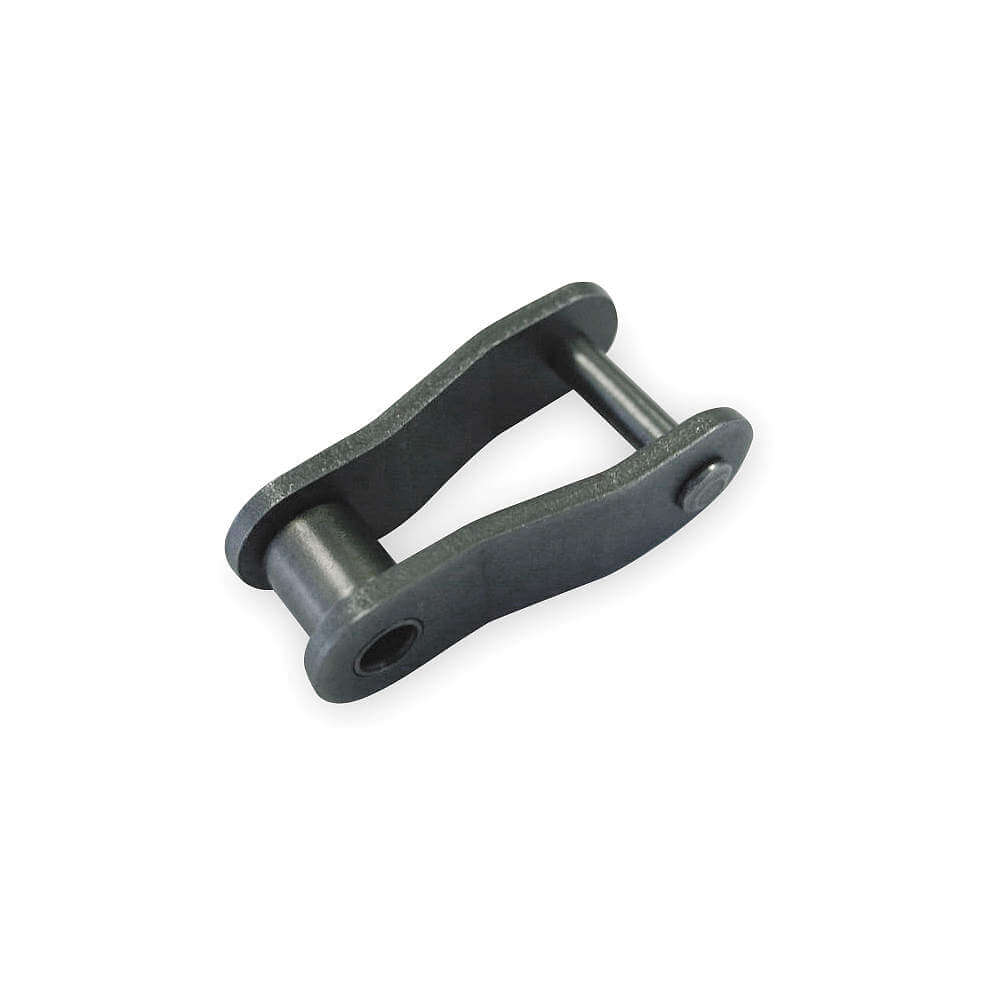

| B | C2062HOL | Steel | C2062H | 1 1/2" | 7/8" | 9040 lbf. | +15°F to +300°F | - | 0.234" | 1 | $35.29 | |
| A | C2080HNEPOL | Steel | C2080H | 2" | 5/8" | 15430 lbf. | +14°F to +302°F | Coated | 0.312" | 1 | $96.67 | |
| B | C2082HOL | Steel | C2082H | 2" | 1 1/8" | 15400 lbf. | +15°F to +300°F | - | 0.312" | 1 | $51.74 | |

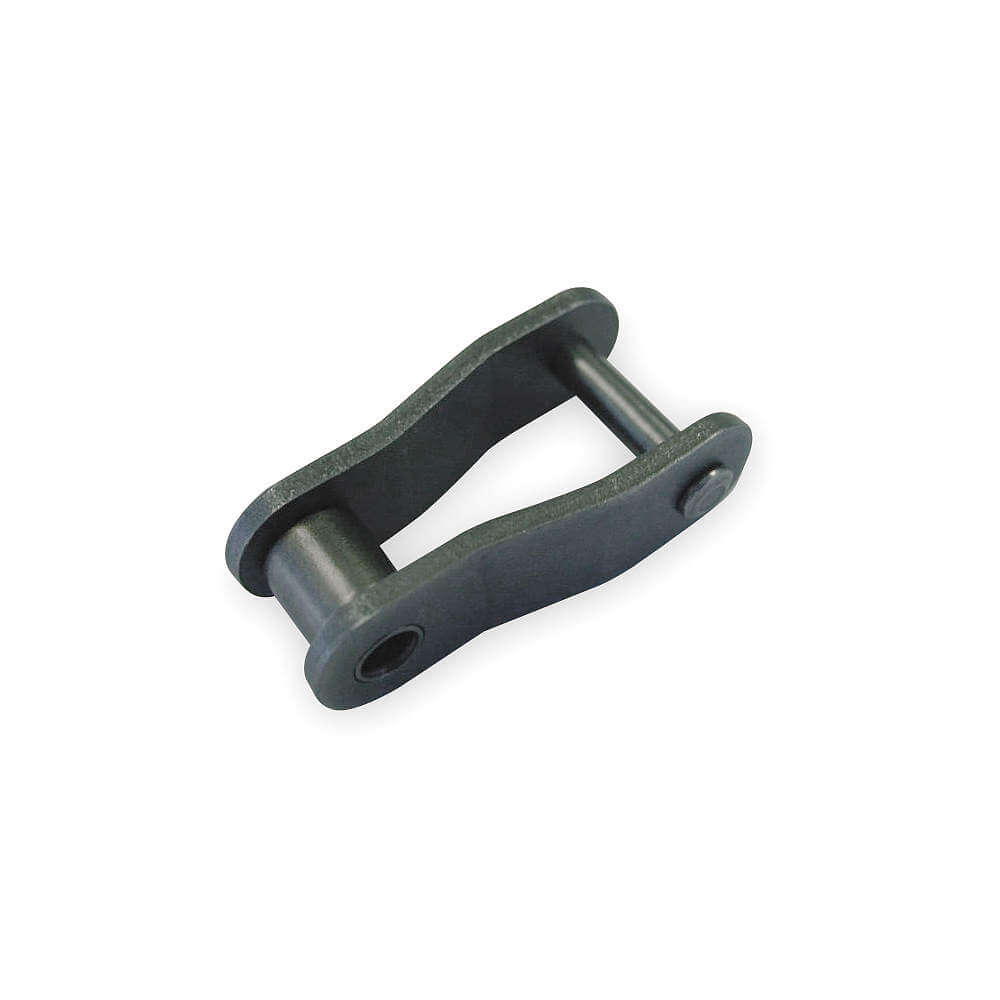

| C | C2100HOL | Steel | C2100H | 2 1/2" | 3/4" | 24300 lbf. | - | - | 3/8" | 1 | $82.56 | |
| C | C2102HOL | Steel | C2102H | 2 1/2" | 1.562" | 24300 lbs. | - | - | 3/8" | 1 | $109.87 | |
| C | C2122HOL | Steel | C2122H | 3" | 1 3/4" | 34000 lbf. | - | - | 0.437" | 1 | $183.71 |
