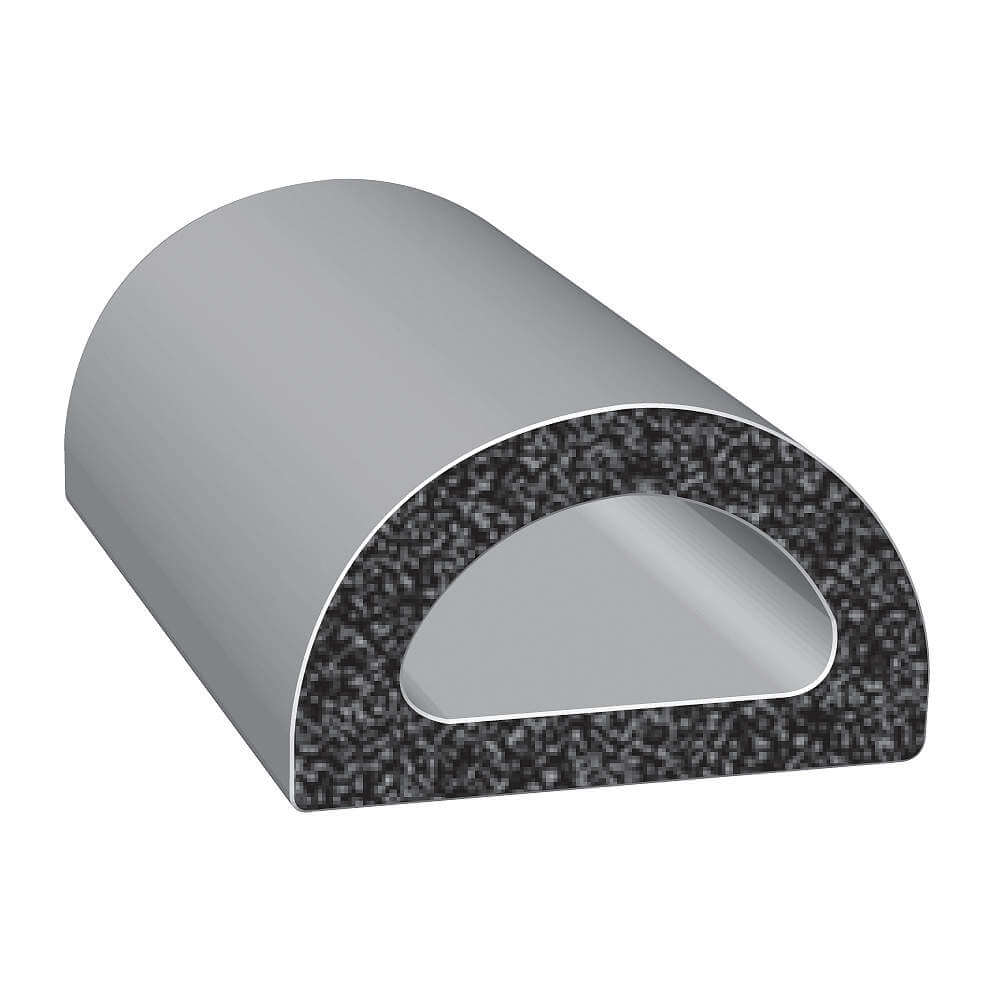

TRIM LOK INC X109HT-500 Rubber Seal D-section 0.63 Inch Width 500 Feet

Item: AA2BYF
Model: X109HT-500
Cross Ref: 10D163
Check Availability
In Stock.

Get it by Wednesday, Feb 11

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$478.89
10% off
$431.00 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item Foam Rubber Seal Adhesive
Adhesive Bond Standard
Backing Type Pressure Sensitive Adhesive
Color Black
Length 500 ft.
Material EPDM
Maximum Operating Temperature 150°F
Minimum Operating Temperature -20°F
Mounting Location Door, Hatch
Mounting Style Self Adhesive
Overall Height 3/8"
Overall Length 500 ft.
Overall Width 5/8"
Product Type Seal
Resistance Properties Ozone Resistant, Temperature Resistant,UVResistant, Water Resistant
Ribbing Non-Ribbed
Seal Shape D Shaped
Seal Type Tape
Style D Shaped
Ul Fire Rating UL94HB
Standards FILE # MH49032 - UL50, FMVSS 302

Product Details

Trim Lok Inc X109HT-500 rubber seal is suitable for weatherstripping applications to prevent air leaks, moisture, dirt, and debris. It is used on doors, car trucks, windows, hatches, electrical enclosures & coolers.

Shipping Information

Height (cm) 27.94
Length (cm) 53.34
Width (cm) 53.34
HS Code 4016100000
Country Of Origin US
Weight (kg) 5.4

Features

  • This D-shaped rubber seal can reduce vibrations, offer excellent noise cancellation and protect facilities from outside elements.
  • It features an HT (pressure sensitive) adhesive that holds the rubber seal in place while installing it for a static application or compressed between two stationary objects.
  • The acrylic-based adhesive has an operating temperature range of -20 and 158 degrees Fahrenheit.

Standards and Approvals

  • FMVSS 302
  • UL50

Frequently Asked Questions

What is the advantage of using an EPDM rubber compound?

EPDM rubber compounds provide excellent resistance to water absorption, ozone, sunlight ageing & low temperature.

What is meant by high tack adhesive?

HT-type adhesive has a high initial tack that creates an immediate bond between the rubber seal and a substrate. It continues to strengthen into a strong permanent bond.

What steps must be followed before installation?

Make sure that the surface is properly cleaned (50/50 denatured alcohol and water solution). This keeps off dirt and elements that might hinder the proper installation of the rubber sealing.
