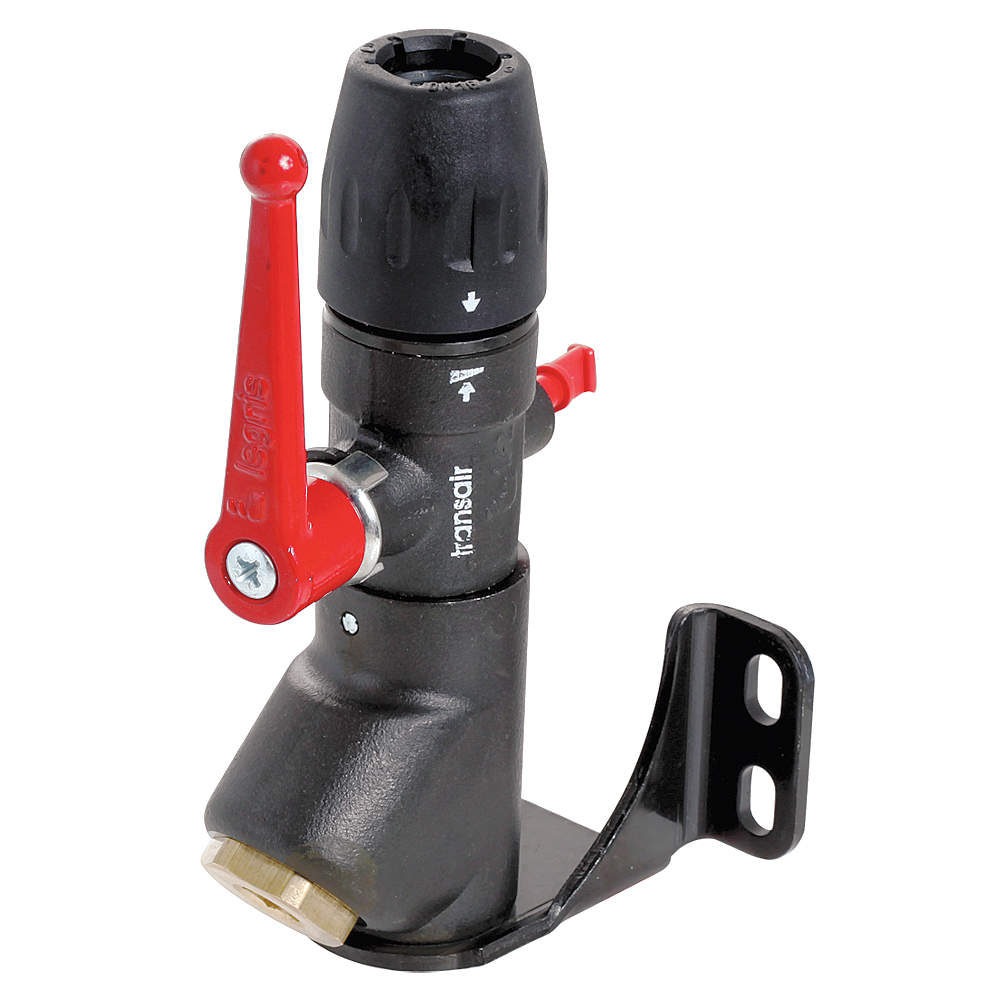

| Item | Fitting |
|---|---|
| Application | Air, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Material | Aluminum |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 1" |
| Fitting Side B Connection Type | NPT |
| Fitting Side B Pipe Size | 1/2" |
| Fitting Size | 1/2" |
| For Tubing O.d. 1 | 25 mm |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 232 psi |
|---|---|
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 10 13/16" |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Drop Bracket Adapter |
| Standards | Asme B31.1, Asme B31.3, Atex Directive 2014/34/Eu, Ce Directive 2014/68/Eu, En 13501-1, En 13501-2, Iatf 16949 Version 2016 Certified, Iso 14001, Iso 8573, Iso 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, Reach |
| System Of Measurement | Imperial |
| Type | Ball Valve |
| Vacuum Rating | 0.03 in. hg |
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 17.78 |
| HS Code | 8481803025 |
|---|---|
| Weight (kg) | 0.585 |
| Style | Model | Application | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | 6679 17 22GR | Air, Inert Gases, Vacuum | Black | $489.16 | |
| A | 6679 25 22GR | Air, Inert Gases, Vacuum | Black | $713.90 | |
| B | 6694 17 22GR | Air, Inert Gases, Vacuum | Black | $519.29 | |
| B | 6694 25 22GR | Air, Inert Gases, Vacuum | Black | $681.64 | |
| C | 6668 40 22GR | Air, Inert Gases, Vacuum | Black | $237.89 |
