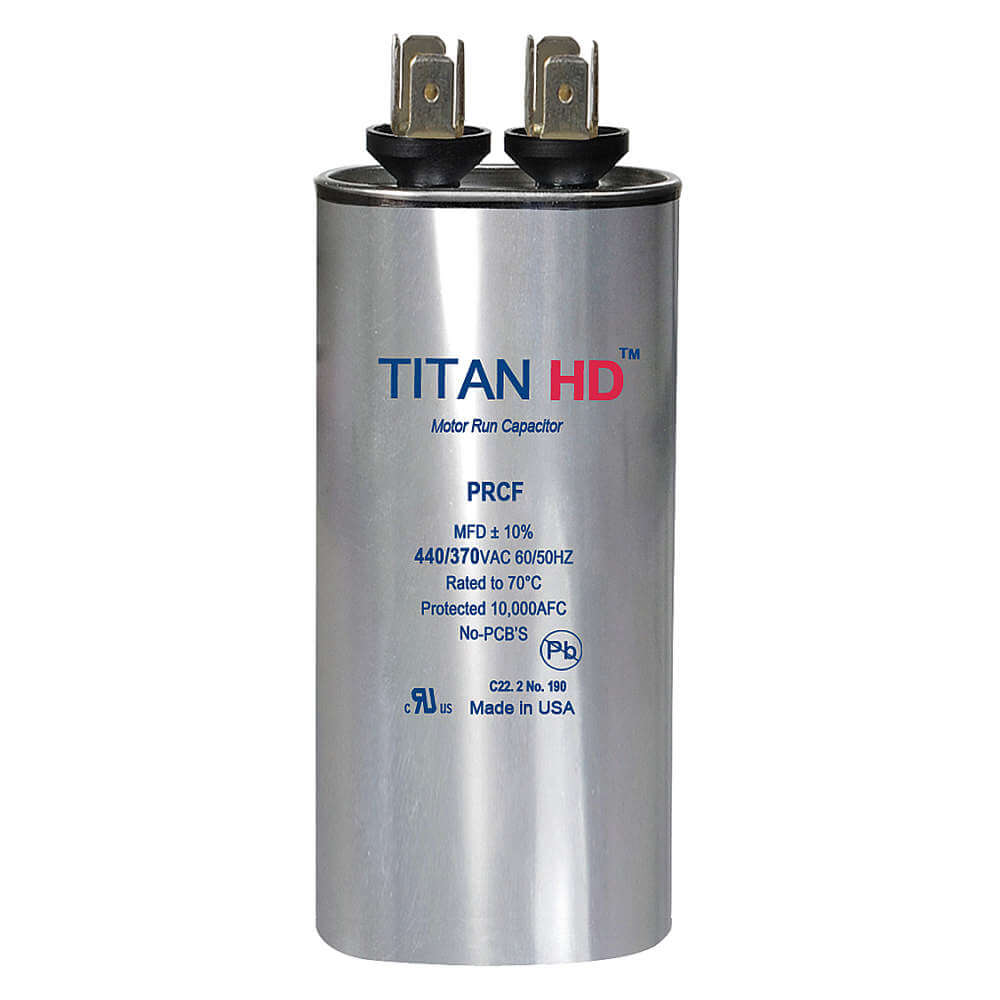

| Item | Motor Run Capacitor |
|---|---|
| Capacitor Shape | Round |
| Capacitor Voltage | 440/370V AC |
| Case Height | 2 3/8" |
| Case Material | Aluminum |
| Connection Type | Quick Connect |
| Cover Material | Steel |
| Dia. | 1 3/4" |
| Diameter | 1 3/4" |
| Eia Tolerance Code | A |
| Eia Ul Base | A |
| For Use With | Electric Motors |
| Frequency | 50/60 Hz |
| Max. Temperature | 70°C |
| Microfarad Rating | 20 µF |
| Min. Temperature | -40°C |
| Motor Capacitor Type | Motor Run Capacitor |
|---|---|
| Number Of Pieces | 1 |
| Number Of Terminals | 2 |
| Overall Height | 2 7/8" |
| Overall Width | 1 3/4" |
| Shape | Round |
| Tab Width | 1/4" |
| Temp. Range | -40°C to +70°C |
| Terminal Design | Standard |
| Terminal Designations | Standard |
| Terminal Gender | Male |
| Terminal Tab Width | 1/4" |
| Terminal Type | Male Quick Connect |
| Voltage | 440/370V AC |
| Standards | CUL, IEC 60252, ROHS COMPLIANT, UL |
| Height (cm) | 8.13 |
|---|---|
| Length (cm) | 5.59 |
| Width (cm) | 5.59 |
| HS Code | 8532300090 |
|---|---|
| Weight (kg) | 0.1125 |
| Style | Model | Voltage | Microfarad Rating | Overall Height | Motor Capacitor Type | Dia. | Overall Width | Overall Depth | Max. Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 22F163 | 370V AC | 2 µF | 1 1/2" | Motor Run Capacitor | - | 1 7/16" | 21/32" | - | $5.94 | |
| A | 22F164 | 370V AC | 3 µF | 1 1/2" | Motor Run Capacitor | - | 1 7/16" | 21/32" | - | $5.56 | |
| A | 22F165 | 370V AC | 4 µF | 1 7/8" | Motor Run Capacitor | - | 1 7/16" | 7/8" | - | $8.21 | |
| A | 22F166 | 370V AC | 5 µF | 1 7/8" | Motor Run Capacitor | - | 1 7/16" | 7/8" | - | $6.64 | |

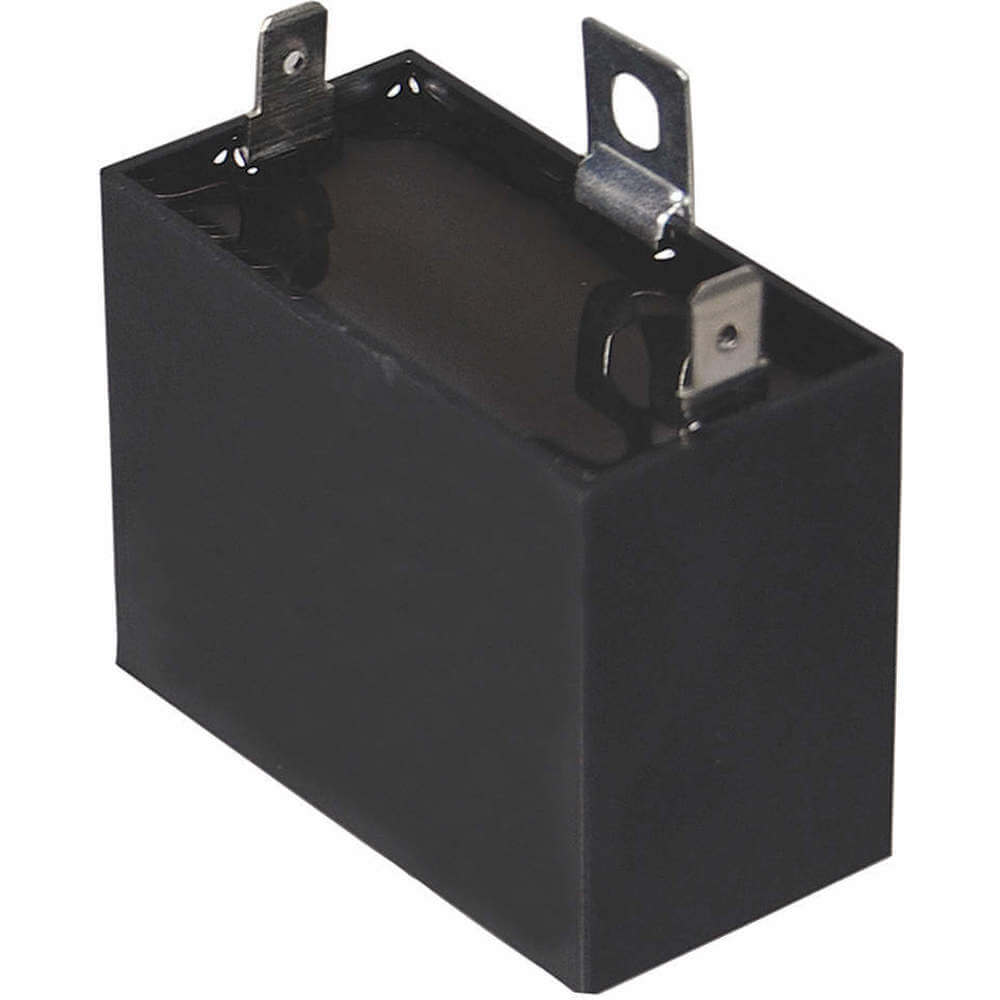

| B | 22F167 | 370V AC | 7.5 µF | - | Motor Run Capacitor | - | 1 7/8" | 1" | - | $10.80 | |
| B | 22F168 | 370V AC | 8 µF | 2" | Motor Run Capacitor | - | 1 7/8" | 1" | - | $12.10 | |
| B | 22F169 | 370V AC | 10 µF | 2 1/4" | Motor Run Capacitor | - | 2 1/4" | 1 3/16" | - | $11.30 |
