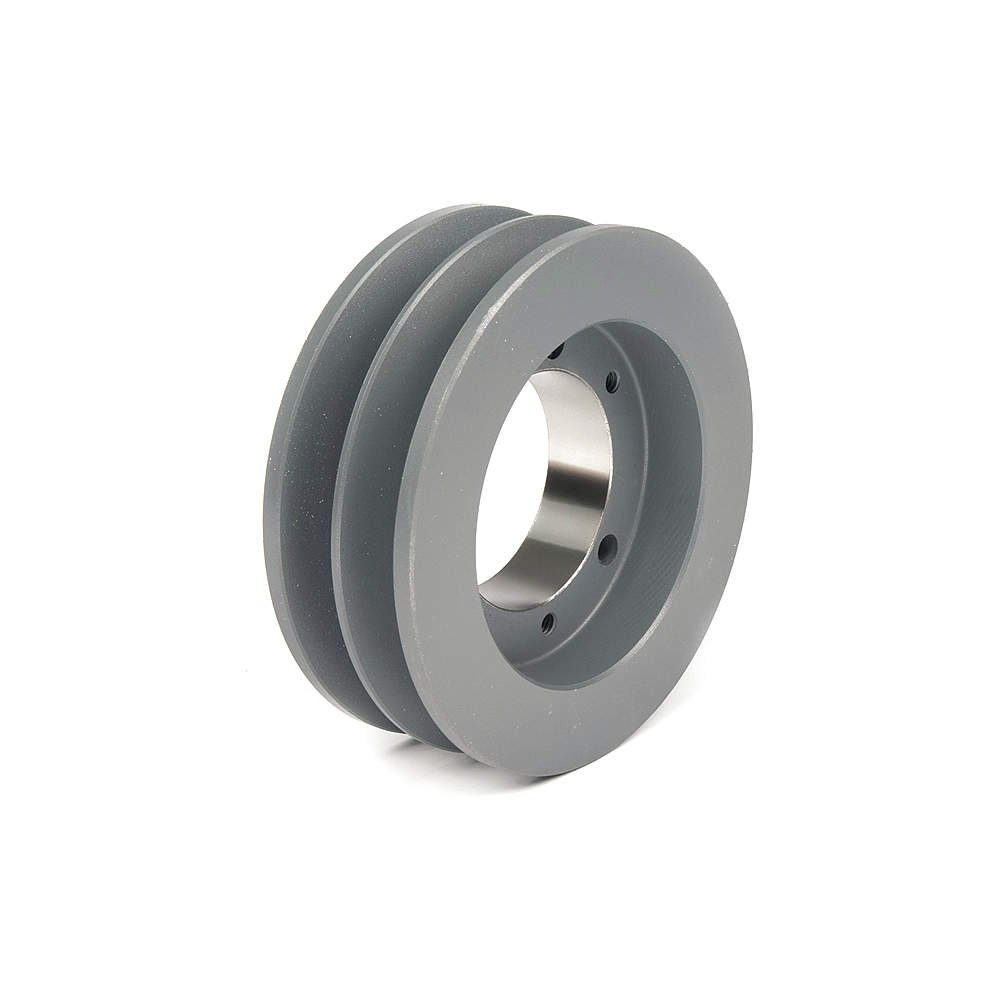

| Item | V-Belt Sheave |
|---|---|
| 5v Belt Pitch Dia. | 4 2/5" |
| 5vx Pitch Diameter | 4.4" |
| Belt Type | 5V |
| Bore Type | Bushed |
| Bushing | SD |
| Bushing Required | SD |
| Construction | Solid |
| Datum Dia. | 4 2/5" |
| Dimension E | 1 22/25" |
| Dimension L | 1.81" |
| Face Width | 3.063" |
| For Belt Section | 5V, 5VX |
| For Bushing Size | SD |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Wedge, Cogged, Banded |
| Industry Number | 5V444 |
| Inside Dia. | 2.69" |
|---|---|
| Length Through Bore | 1 13/16" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 5690 RPM |
| No. Of Grooves | 4 |
| Outside Dia. | 4 2/5" |
| Outside Diameter | 4.4" |
| Overall Length | 3.688" |
| Overall Width | 3 11/16" |
| Pitch Dia. | 4.4" (5V) |
| Product Type | Narrow |
| Pulley Construction | Plain |
| Pulley Industry Number | 5V440 |
| Pulley Series | Narrow Wedge |
| Set Screw Included | No |
| Standards | ISO 9001:2015 CERTIFICATION |
| Height (cm) | 9.14 |
|---|---|
| Length (cm) | 13.72 |
| Width (cm) | 13.46 |
| HS Code | 8483509040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.34 |
| Style | Model | Material | Bore Type | Outside Dia. | Industry Number | For Belt Section | For Bushing Size | C Or Cx Belt Pitch Dia. | Datum Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5V1252 | Cast Iron | Quick Disconnect Bushing | 12 1/2" | 5V1252 | - | - | - | 12 1/2" | $455.19 | |
| A | 5V1602 | Cast Iron | Bushed | 16" | 5V1602 | 5V, 5VX | SF | - | 16" | $587.16 | |
| A | 5V1872 | Cast Iron | Quick Disconnect Bushing | 18.7" | 5V1872 | - | - | - | 18.7" | $785.69 | |
| B | 5V1874 | Cast Iron | Bushed | 18.7" | 5V1874 | 5V, 5VX | E | - | 18.7" | $995.25 | |
| C | 5V442 | Cast Iron | Bushed | 4 2/5" | 5V442 | 5V, 5VX | SH | - | 4 2/5" | $203.73 | |
| D | 5V443 | Cast Iron | Bushed | 4 2/5" | 5V443 | 5V, 5VX | SDS | - | 4 2/5" | $236.50 | |
| E | 5V4652 | Cast Iron | Bushed | 4.65" | 5V4652 | 5V, 5VX | SDS | - | 4.65" | $214.10 |
