| Item | Unit Mount Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120/240V AC |
| Amps | 70A |
| Awg Gauge | 12 AWG to 2/0 AWG |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Surface/Din Rail |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Component Type | Miniature Circuit-Breaker |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 60V DC |
| Depth | 2.95" |
| Electrical Connection | Slotted Box Lugs, Line Side, Load Side |
| For Use With | Air Conditioning And Refrigeration Equipment, Heating |
| Frame Size | 100A, QOU |
| Height | 4.05" |
|---|---|
| Length | 4.05" |
| Line Rated Amps | 70A |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 2/0 AWG |
| Min. Wire Size | 12 AWG |
| Mounting Mode | Unit Mount |
| Number Of Poles | 3 |
| Phase | 3 |
| Rated Operational Voltage | 120/240V AC/60V DC |
| Returnability | No |
| Terminal Connection | Slotted Box Lug (Reversible Line And Load) |
| Tightening Torque | 45 lbf.in. @ 14 AWG to 2 AWG |
| Width | 2 1/4" , 2.25" |
| Standards | IEC, UL LISTED |
| Warranty | 18 Months |
| Height (cm) | 6.6 |
|---|---|
| Length (cm) | 12.19 |
| Width (cm) | 8.89 |
| HS Code | 8536200040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.6525 |

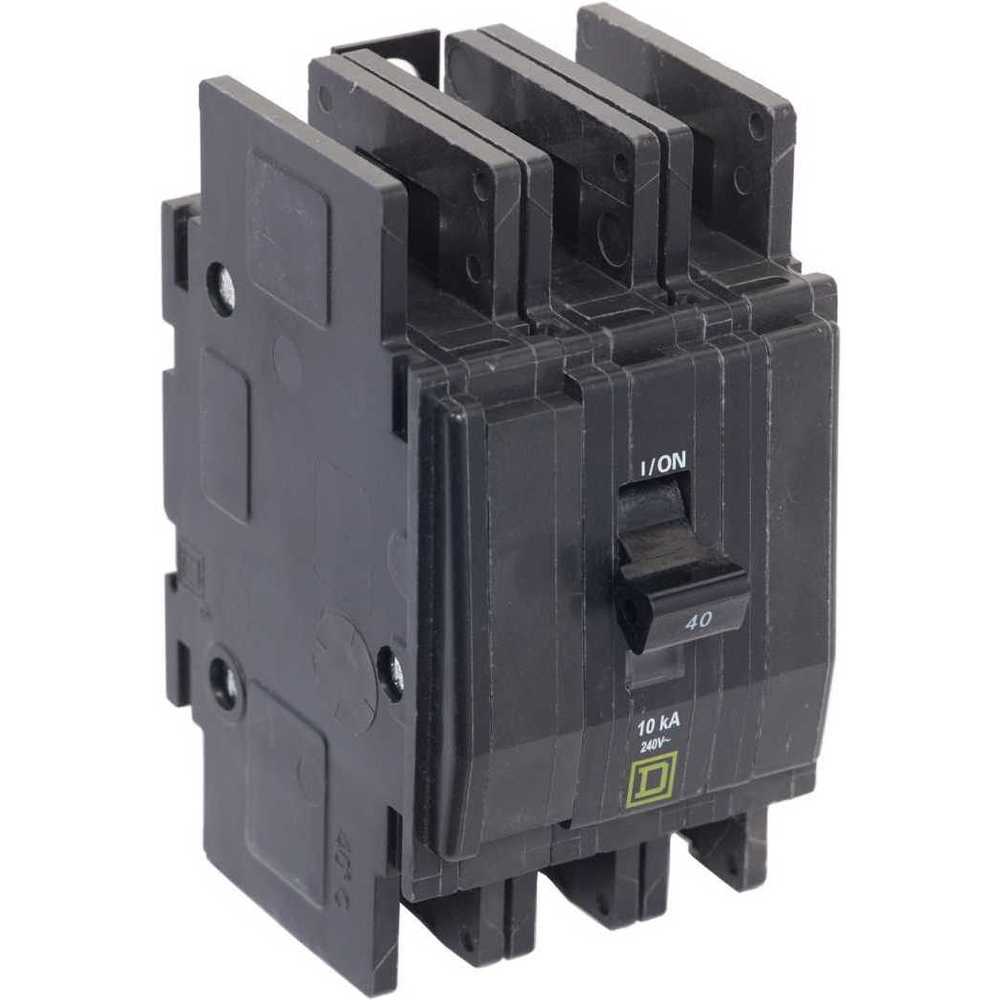

| Style | Model | Amps | Circuit Breaker Type | Max. Air Rating | Dc Voltage Rating | Terminal Connection | Min. Wire Size | Number Of Poles | Ac Voltage Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

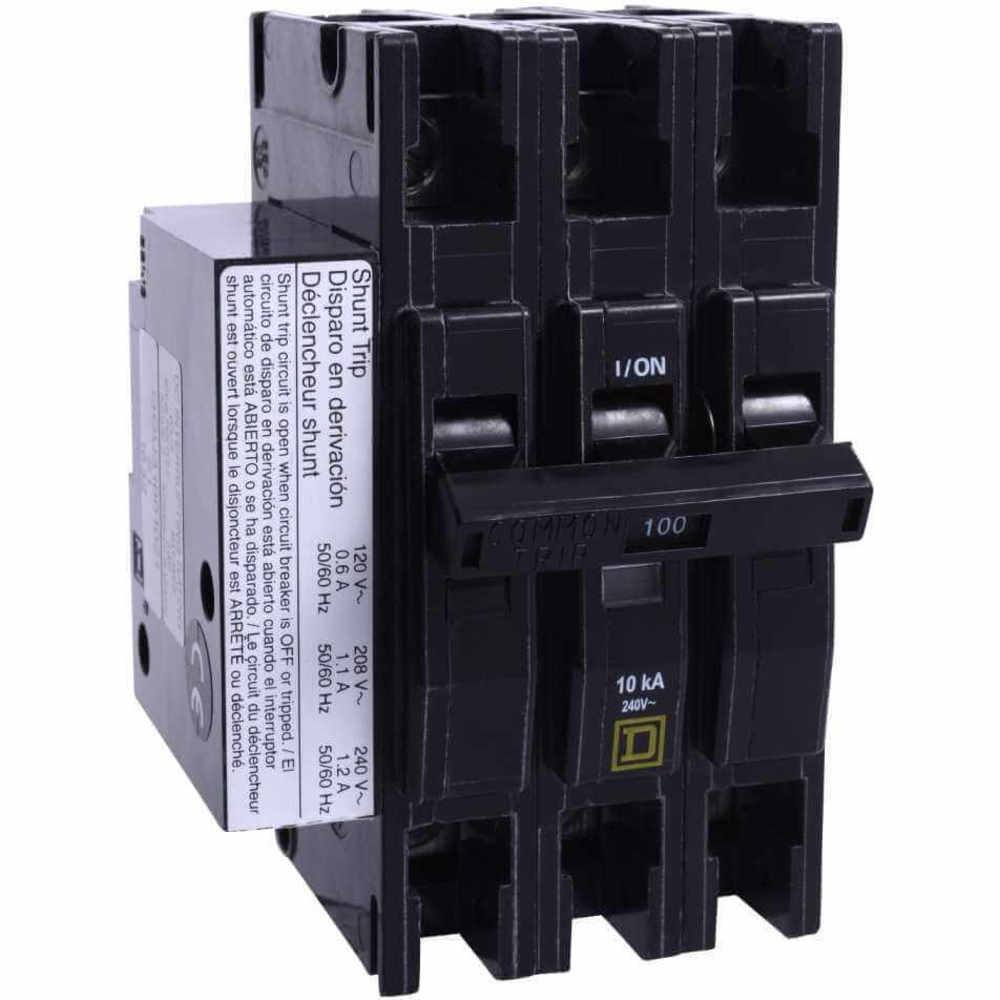

| A | QOU31001021 | 100A | Standard | 10 kA At 120/240V AC | 60V DC | Slotted Box Lug (Line And Load) | 12 AWG | 3 | 120/240V AC | $1,033.88 | |
| B | QOU320VH | 20A | Standard | 22 kA At 240V AC | 48V | Slotted Box Lug (Reversible Line And Load) | 14 AWG | 3 | 120/240V AC | $856.95 | |
| A | QOU3501021 | 50A | Standard | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Line And Load) | 14 AWG | 3 | 120/240V AC | $724.75 | |
| A | QOU3601021 | 60A | Standard | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Line And Load) | 14 AWG | 3 | 120/240V AC | $673.49 | |
| A | QOU3151021 | 15A | Standard | 10 kA At 120/240V AC | 48V | Slotted Box Lug (Line And Load) | 14 AWG | 3 | 120/240V AC | $726.20 |
