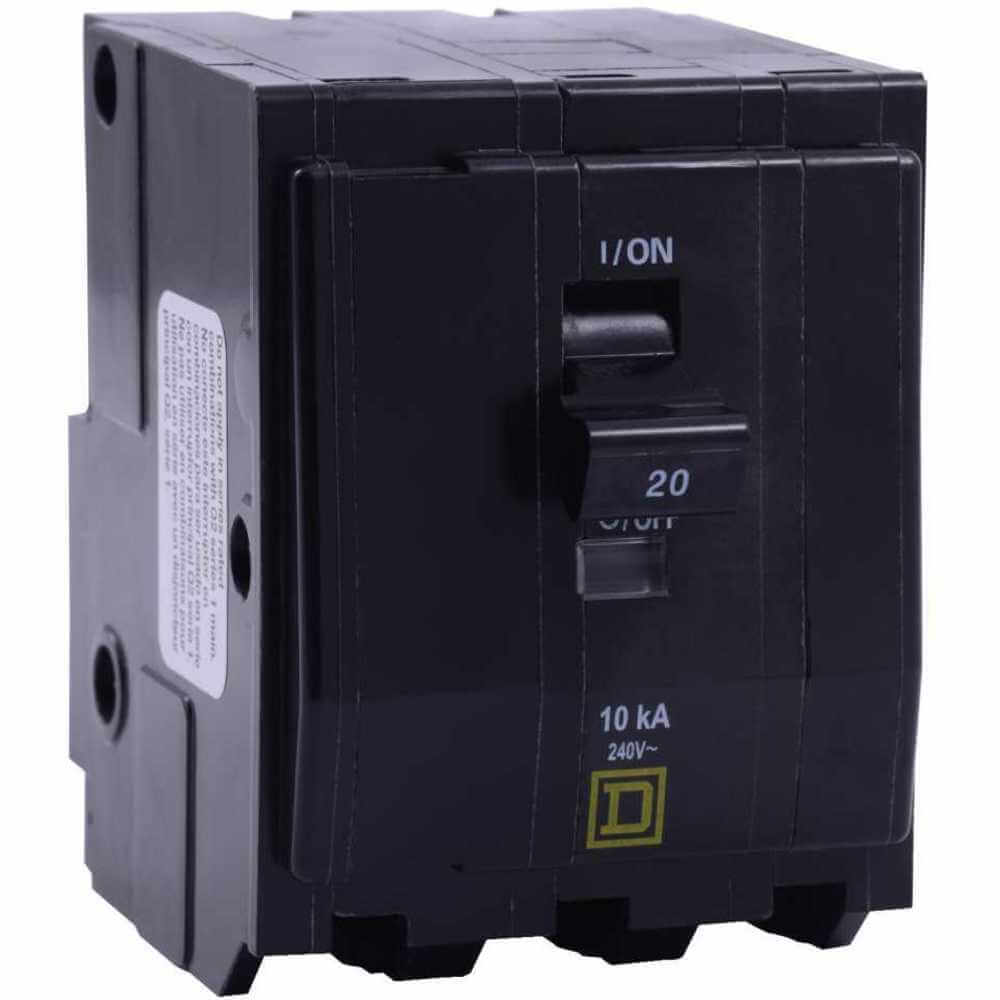

| Item | Plug In Circuit Breaker |
|---|---|
| Ac Voltage Rating | 120/240V AC |
| Air @ 120v Ac | 10 kA |
| Air @ 240vac | 10 kA |
| Air @ 48v Dc | 5 kA |
| Ambient Rating | 104°F |
| Amps | 10A |
| Amps Rating | 10A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | 48V DC |
| Dc Voltage Rating | 48V |
| Depth | 2.9" , 2.91" |
| Electrical Connection | Pressure Plate |
| For Use With | QO Load Centers And NQ Panelboards |
| Frame Size | 100A, QO |
| Height | 3" |
| Interrupt Rating | 10 kA @ 120/240V AC, 10 kA @ 240V AC, 10 kA @ 120V AC |
| Length | 3" |
| Max. Air Rating | 10 kA At 120/240V AC |
|---|---|
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 14 AWG |
| Mounting Type | Plug In |
| No. Of Panel Spaces | 3 |
| No. Of Poles | 3 |
| Number Of Poles | 3 |
| Phase | Three |
| Ratings | HACR Rated |
| Returnability | Yes |
| Terminal Connection | Pressure Plate |
| Terminal Connection Type | Screw Clamp |
| Tightening Torque | 35.4 lbf.-in. |
| Voltage Rating | 120/240V AC |
| Width | 2 1/4" , 2.2" |
| Wire Size | 14 AWG , 14 AWG to 8 AWG |
| Standards | HACR, UL LISTED |
| Warranty | 18 Months |
| Height (cm) | 5.59 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 8.38 |
| HS Code | 8536200040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.3465 |
| Style | Model | Amps | Number Of Poles | Max. Air Rating | Ac Voltage Rating | Phase | Depth | Dc Voltage | Terminal Connection Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | QO115 | 15A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | $18.89 | |
| B | QO115HM | 15A | 1 | 10 kA At 120V AC | - | Single | 2.91" | 48V DC | Screw Clamp | $41.89 | |
| C | QO120 | 20A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | $20.16 | |
| D | QO120HM | 20A | 1 | 10 kA At 120/240V AC | 120V AC | Single | 2.91" | Not Rated | Screw Clamp | $41.89 | |
| E | QO120VH | 20A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | $51.44 | |
| F | QO130 | 30A | 1 | 10 kA At 120/240V AC | 120/240V AC | Single | 2.91" | 48V DC | Screw Clamp | $20.16 | |
| E | QO130VH | 30A | 1 | 22 kA At 120/240V AC | 120/240V AC | Single | 2.91" | Not Rated | Screw Clamp | $49.80 |
