| Item | Hex Socket Head Male Adapter |
|---|---|
| Application | Air, Non-Potable Water |
| Basic Material | Plastic |
| Body Material | Polybutylene Terephthalate |
| Color | White |
| Compatible Tube Material | FEP, Nylon, PFA, Polyurethane, Soft Nylon |
| Connection Type | Tube x MNPT |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 3/16" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 0.141" |
| Includes Pre-applied Thread Sealant | Yes |
|---|---|
| Maximum Operating Pressure | 145 psi |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | 41°F |
| Overall Length | 19.8125 mm |
| Pipe Size | 1/8" |
| Release Type | Button |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Imperial |
| Temp. Range | +23°F to +140°F |
| Tube Size | 0.188" |
| Standards | ANSI/ASME1.20.1, ROHS |
| Height (cm) | 1.02 |
|---|---|
| Length (cm) | 2.03 |
| Width (cm) | 1.02 |
| HS Code | 3917400090 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.009 |
| Style | Model | Color | Connection Type | Hex Size | Tube Size | Fitting Side B Connection Type | Overall Length | Fitting Side A Tube Outer Diameter | Fitting Side B Pipe Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | KQ2S01-32A | White | Tube x UNF | 2 mm | 1/8" | Munf | 17.5 mm | 1/8" | - | $4.84 | |

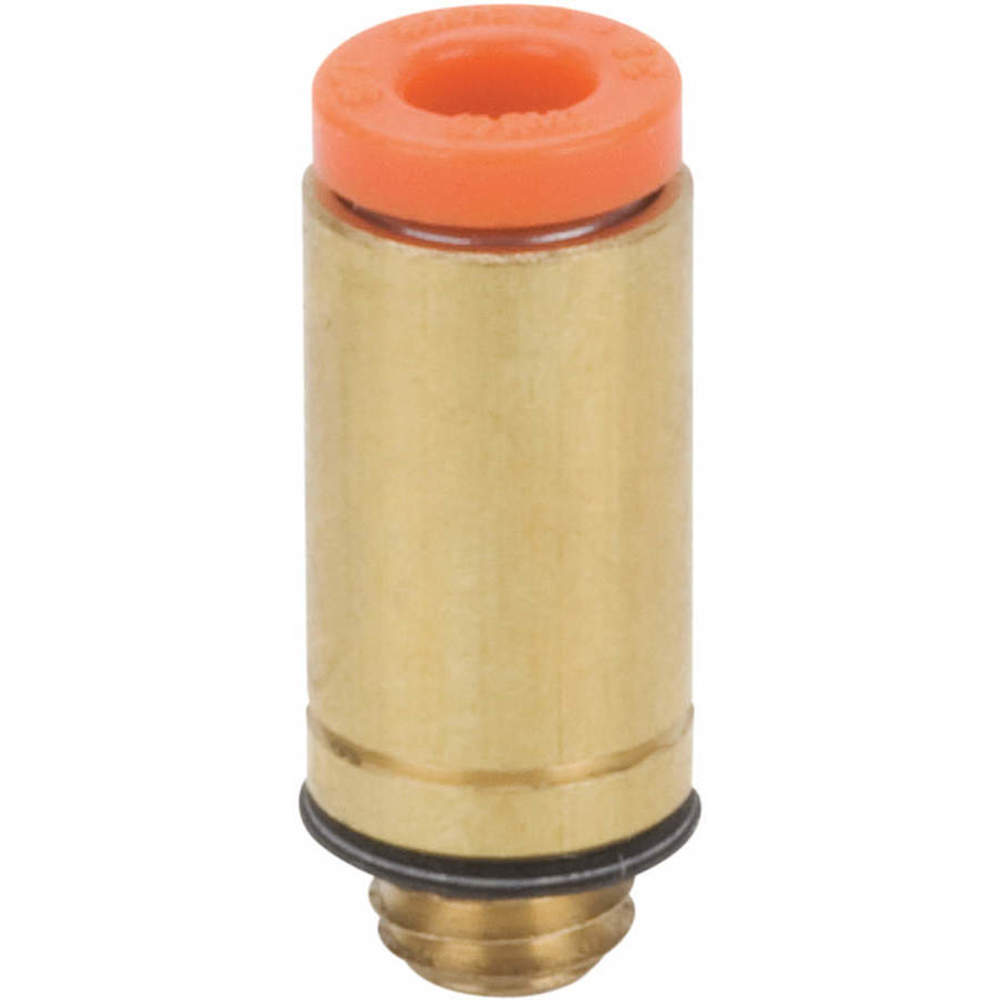

| A | KQ2S03-32A | White | Tube x UNF | 2 mm | 0.156" | Munf | 18.59375 mm | 5/32" | - | $4.84 | |

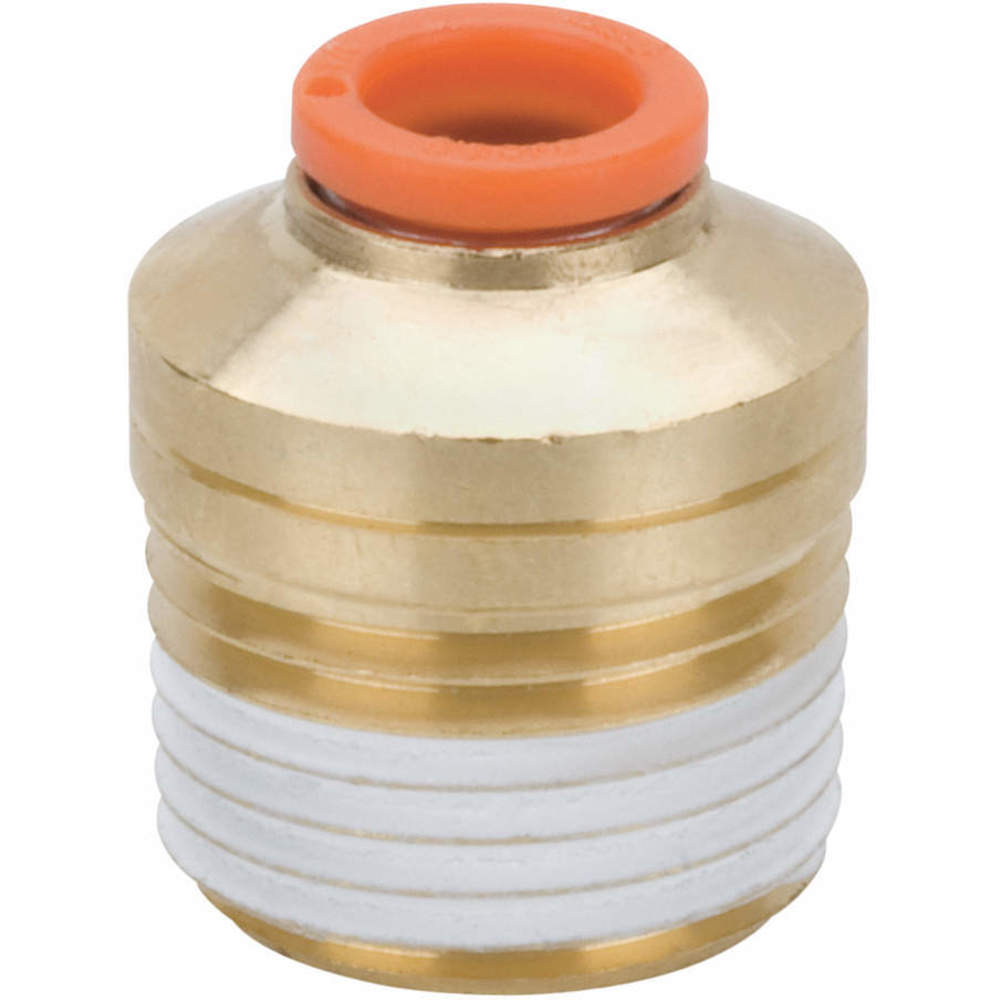

| B | KQ2S03-34AS | White | Tube x MNPT | 1/8" | 0.156" | MNPT | 17.3125 mm | 5/32" | 1/8" | $4.43 | |
| C | KQ2S04-01AS | Gray, White | Tube x Male BSPT | 3 mm | 4 mm | MBSPT | 19.6875 mm | 4 mm | 1/8" | $3.91 | |
| A | KQ2S04-M5A | White | RPT x Tube | 2 mm | 4 mm | Male Metric | 18.59375 mm | 4 mm | 5 mm | $3.91 | |

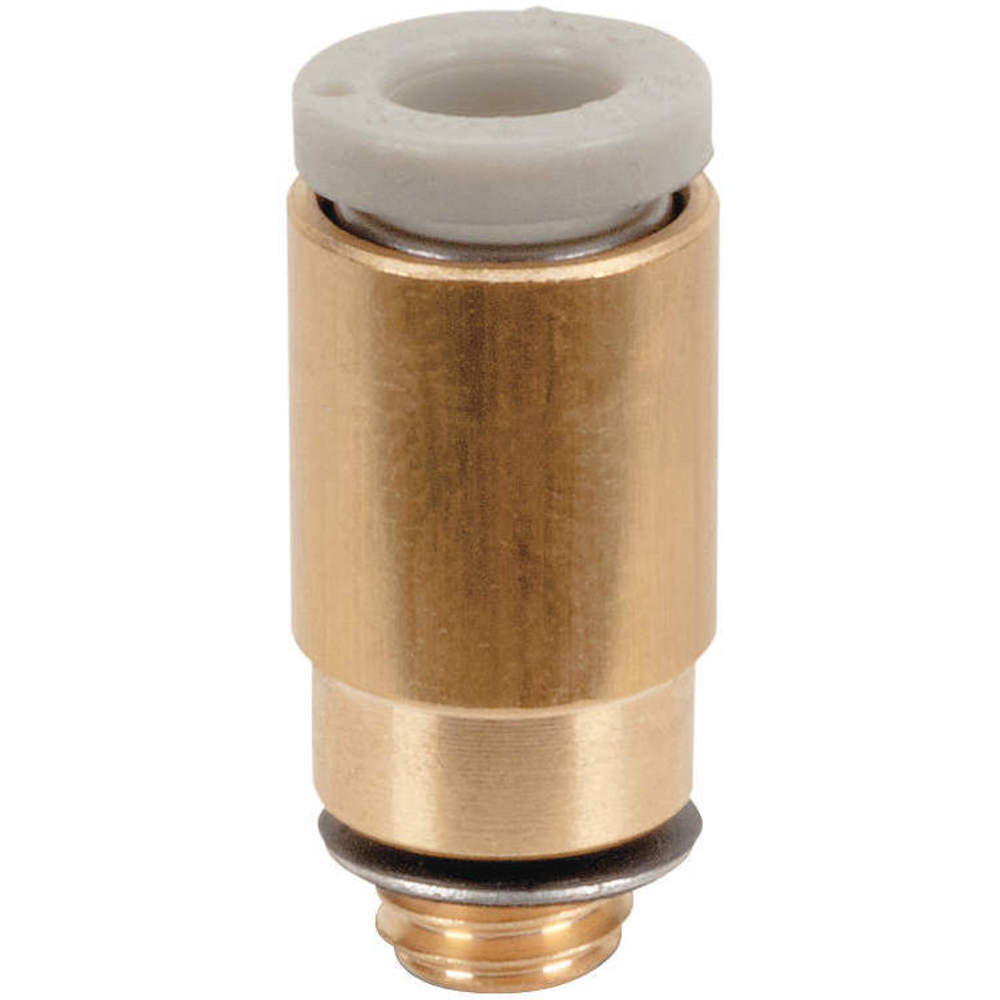

| D | KQ2S04-M6A | Gray, White | RPT x Tube | 3 mm | 4 mm | Male Metric | 18.5 mm | 4 mm | 6 mm | $3.67 | |
| C | KQ2S06-01A | White | Tube x Male BSPT | 4 mm | 6 mm | MBSPT | 18.8125 mm | 6 mm | 1/8" | $3.40 |
