| Item | Bolt On Circuit Breaker |
|---|---|
| Ac Voltage Rating | 240V AC |
| Aic Rating | 65 kAIC @ 240V |
| Amps | 300A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing Lug In |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | Not Rated |
| Depth | 4" |
| For Use With | Sb Switchboards Without Lugs, Sentron Panelboards |
| Frame Size | 400A/JD |
| Frame Type | JXD |
| Height | 11" |
| High Amp Trip Setting | 300A |
| Instantaneous Trip | Fixed |
|---|---|
| Low Amp Trip Setting | 300A |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Wire Size | 500 mcm |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | JXD2-A Series |
| Terminal Connection | Lug |
| Trip Type | Thermal Magnetic |
| Voltage | 240V |
| Voltage Type | AC |
| Width | 7.5" |
| Standards | HACR RATED, UL LISTED |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 19.05 |
| HS Code | 8536200020 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 8.19 |
| Style | Model | Number Of Poles | Amps | Phase | Voltage | Aic Rating | Dc Voltage Rating | High Amp Trip Setting | Low Amp Trip Setting | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JXD23B250 | 3 | 250A | Three | 240V | 65 kAIC @ 240V | Not Rated | 250A | 250A | $2,151.34 | |
| B | JXD23S400A | 3 | 400A | - | 240V | 65 kAIC @ 240V | - | - | - | $2,151.34 | |

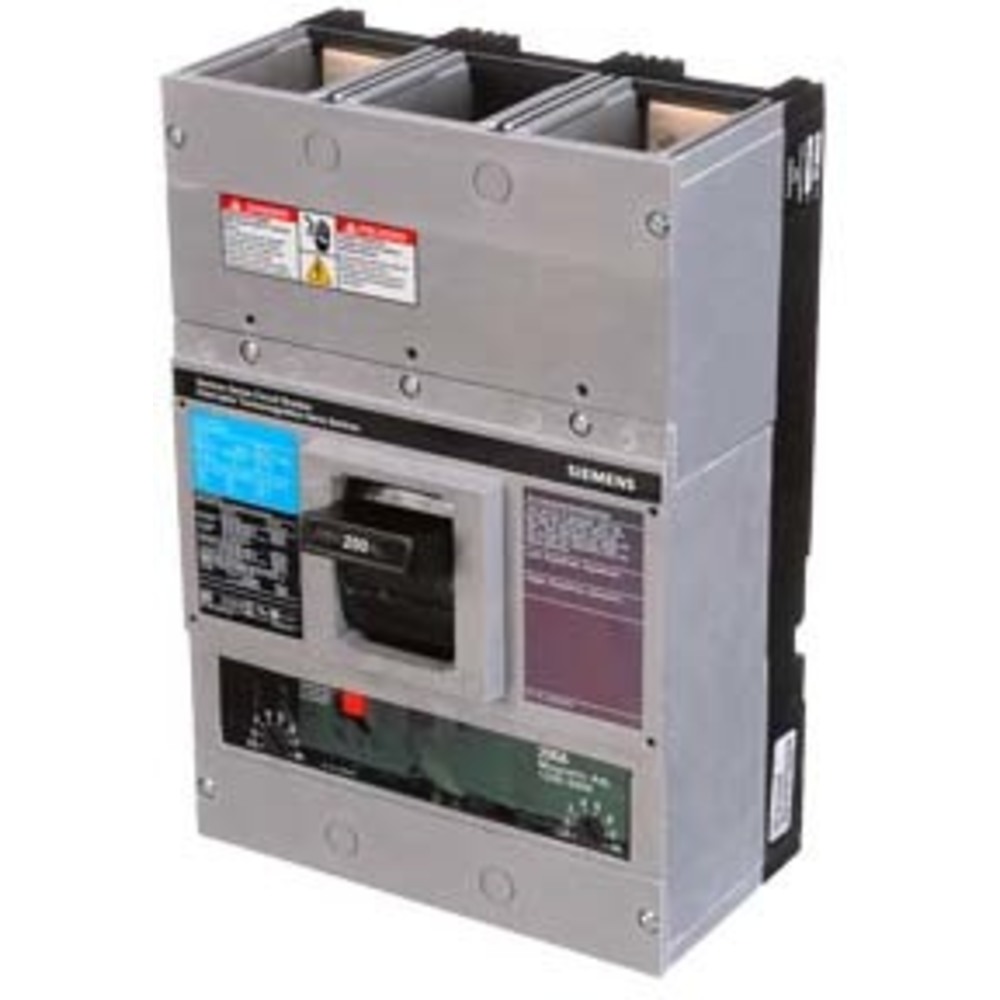

| C | JXD62B200 | 2 | 200A | - | 600V | 35 kAIC @ 480V | - | - | - | - | RFQ
|
| A | JXD62B225 | 2 | 225A | - | 600V | 35 kAIC @ 480V | - | - | - | $2,527.77 | |
| A | JXD62B250 | 2 | 250A | - | 600V | 35 kAIC @ 480V | - | - | - | $2,527.77 | |

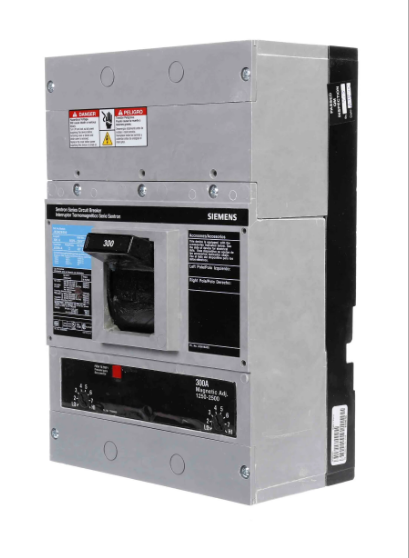

| D | JXD62B300 | 2 | 300A | - | 600V | 35 kAIC @ 480V | - | - | - | $2,527.77 | |

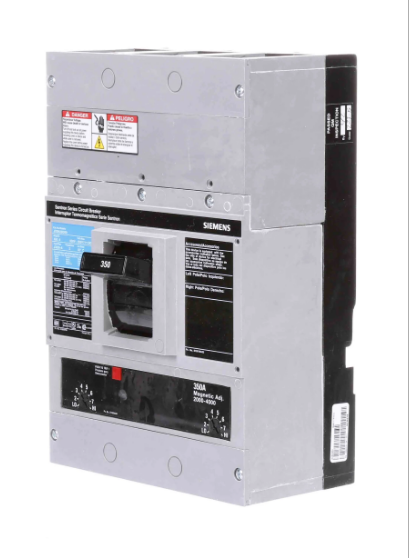

| E | JXD62B350 | 2 | 350A | - | 600V | 35 kAIC @ 480V | - | - | - | $2,527.77 |
