| Item | Ball Valve Pump |
|---|---|
| Air Consumption | 40 SCFM |
| Air Consumption (maximum) | 40 SCFM |
| Air Inlet Size | 1" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 1" |
| Air Intake Pressure (maximum) | 125 psi |
| Body Material | Stainless Steel |
| Center Section Material | Aluminum |
| Check Seat Material | PTFE |
| Chemical Compatibility | Oil Based Paint |
| Compatible Chemicals | Oil-Based Paint |
| Connection Size | 1" |
| Connection Type | NPT |
| Diaphragm Material | PTFE |
| Displacement Per Stroke | 0.11 gal. |
| Display Qty | 1 |
| Feet Of Head (maximum) | 289 ft. |
| Flow Rate (maximum) | 45 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 43.1 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 26.4 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 35.8 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 41 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 42.8 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Discharge Connection Size | 1" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 1" |
| Fluid Intake Connection Type | NPT |
| For Use With Potable Systems | No |
| Grade | Grade 316 |
| Height | 13" |
| Housing Material | Stainless Steel |
| Inlet Size | 1" |
| Inlet Type | NPT |
| Inlet/outlet Size | 1" |
| Length | 10" |
|---|---|
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 1/4" |
| Max. Discharge Pressure | 125 psi |
| Max. Flow Rate | 45 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 125 psi |
| Max. Solid Dia. | 1/4" |
| Media Discharge Connection Size | 1" |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1" |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Aluminum |
| Non-wetted Material | Aluminum |
| Operating Pressure (maximum) | 125 psi |
| Operation Type | Air Operated |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 12.9" |
| Overall Length | 10.3" |
| Overall Width | 10.3" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 125 psi |
| Self Priming | Yes |
| Self-priming Dry | 17 ft. |
| Self-priming Wet | 17 ft. |
| Series Family | Sf1 |
| Solid Diameter (maximum) | 1/4" |
| Solids Handling | 1/4" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Material | Stainless Steel |
| Width | 10" |
| Standards | ABS TYPE APPROVED, CE CERTIFIED, EAC, ISO |
| Height (cm) | 32.61 |
|---|---|
| Length (cm) | 26.37 |
| Width (cm) | 26.04 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 12.6 |
| Style | Model | Max. Flow Rate | Diaphragm Material | Valve Material | Check Seat Material | Max. Media Temp. | Housing Material | Air Consumption | Inlet Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

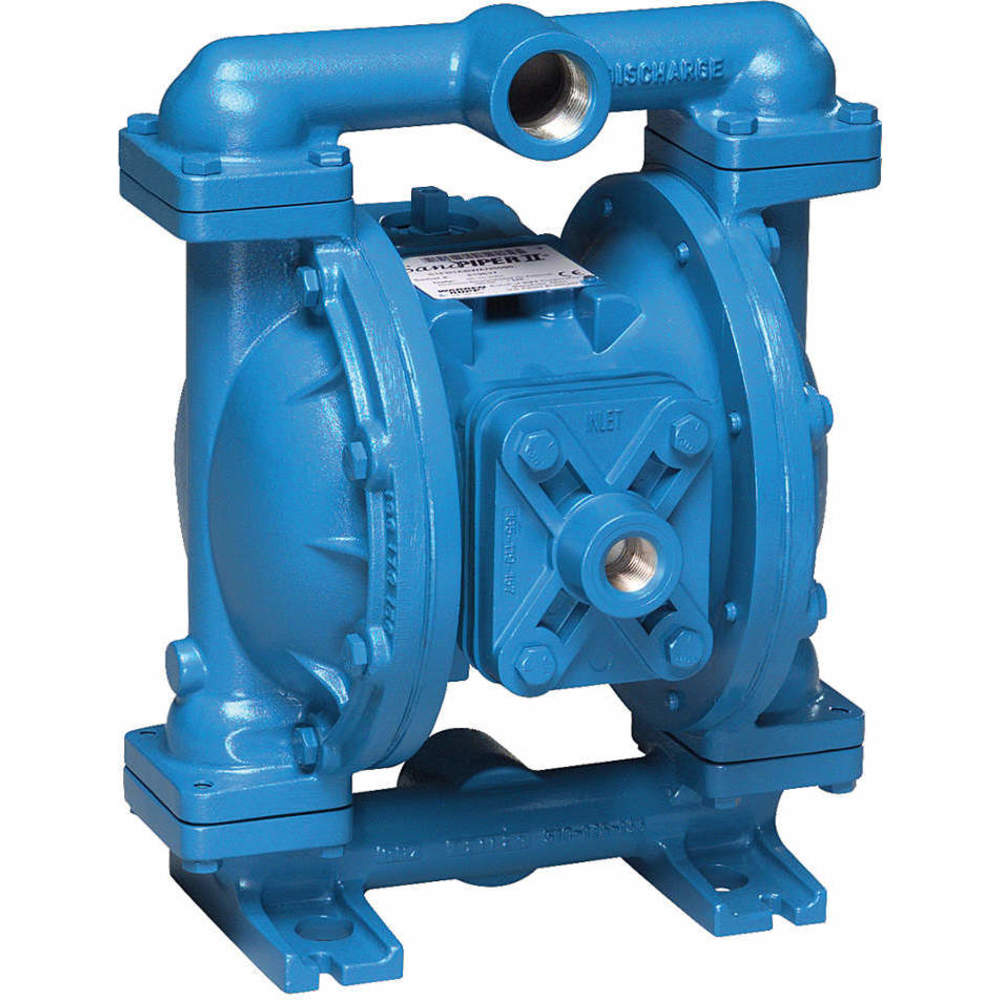

| A | S1FB1I1WANS000. | 45 GPM | Santoprene | Santoprene | Polyethylene | 180°F | Cast Iron | 40 SCFM | - | $3,553.11 | |
| A | S1FB1I2TANS000. | 45 GPM | PTFE | PTFE | PTFE | 220°F | Cast Iron | 40 SCFM | 1" | $4,392.27 | |

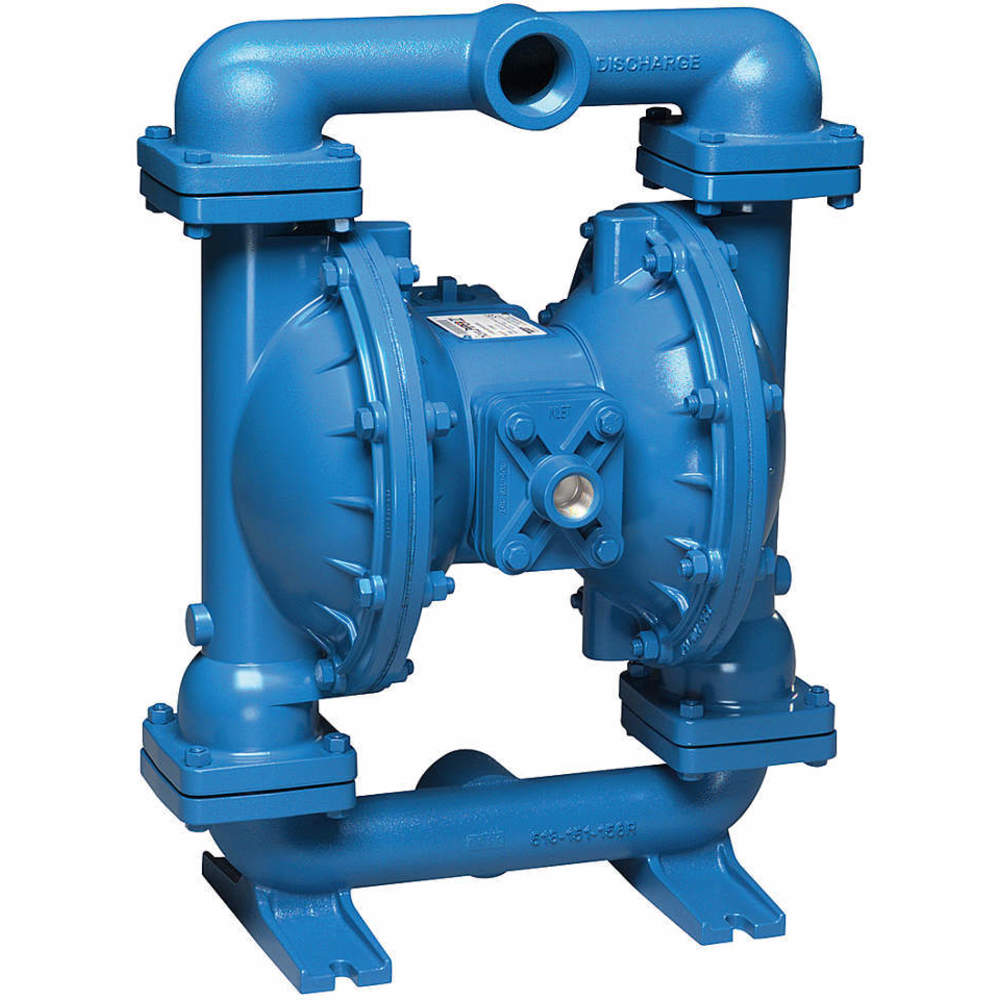

| B | S15B1I1WANS000. | 106 GPM | Santoprene | Santoprene | Polyethylene | 180°F | Cast Iron | 50 SCFM | - | $5,220.69 | |
| B | S15B1I2TANS000. | 106 GPM | PTFE | PTFE | PTFE | 220°F | Cast Iron | 50 SCFM | 1 1/2" | $6,514.31 | |
| C | S1FB1A1WANS000. | 45 GPM | Santoprene | Santoprene | Polyethylene | 180°F | Aluminum | 40 SCFM | - | $2,638.87 | |
| C | S1FB1ABWANS000. | 45 GPM | Buna N | Buna N | Polyethylene | 180°F | - | 40 SCFM | - | $2,590.24 | |
| D | S1FB1SBWANS000. | 45 GPM | Buna N | Buna N | Polyethylene | 180°F | Stainless Steel | 40 SCFM | 1" | $5,980.59 |
