| Item | Steam and Hot Water Solenoid Valve |
|---|---|
| Ambient Temp. Range | 125°F |
| Application | Hot Water, Steam |
| Body Material | Brass |
| Class | Class H |
| Coefficient Of Volume | 4.4 |
| Coefficient Of Volume (cv) | 4.4 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | H |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Hot Water, Steam |
| Includes Coil | Yes |
| Inlet Connection Type | NPTF |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. Steam | 300°F |
| Max. Fluid Temperature | 210°F |
| Max. Operating Pressure Differential - Hot Water | 100 psi |
| Max. Operating Pressure Differential - Steam | 50 psi |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
|---|---|
| Operating Environment | Hazardous, Indoor, Outdoor, Washdown |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1/2" |
| Orifice Diameter | 1/2" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 3/32" |
| Overall Length | 2 7/8" |
| Overall Width | 2 1/4" |
| Pipe Size | 3/8" |
| Seal Material | PTFE |
| Standards | Csa, Ul Listed |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Diaphragm, Piston |
| Valve Ways | 2-Way |
| Voltage | 24V DC |
| Wattage | 15.6 W |
| Watts | 15.6 W |
| Height (cm) | 7.62 |
|---|---|
| Length (cm) | 12.95 |
| Width (cm) | 10.67 |
| HS Code | 8481809005 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.08 |
| Style | Model | Valve Configuration | Pipe Size | Max. Fluid Temp. Steam | Ambient Temp. Range | Coil Enclosure | Coil Insulation Class | Coefficient Of Volume | Orifice Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

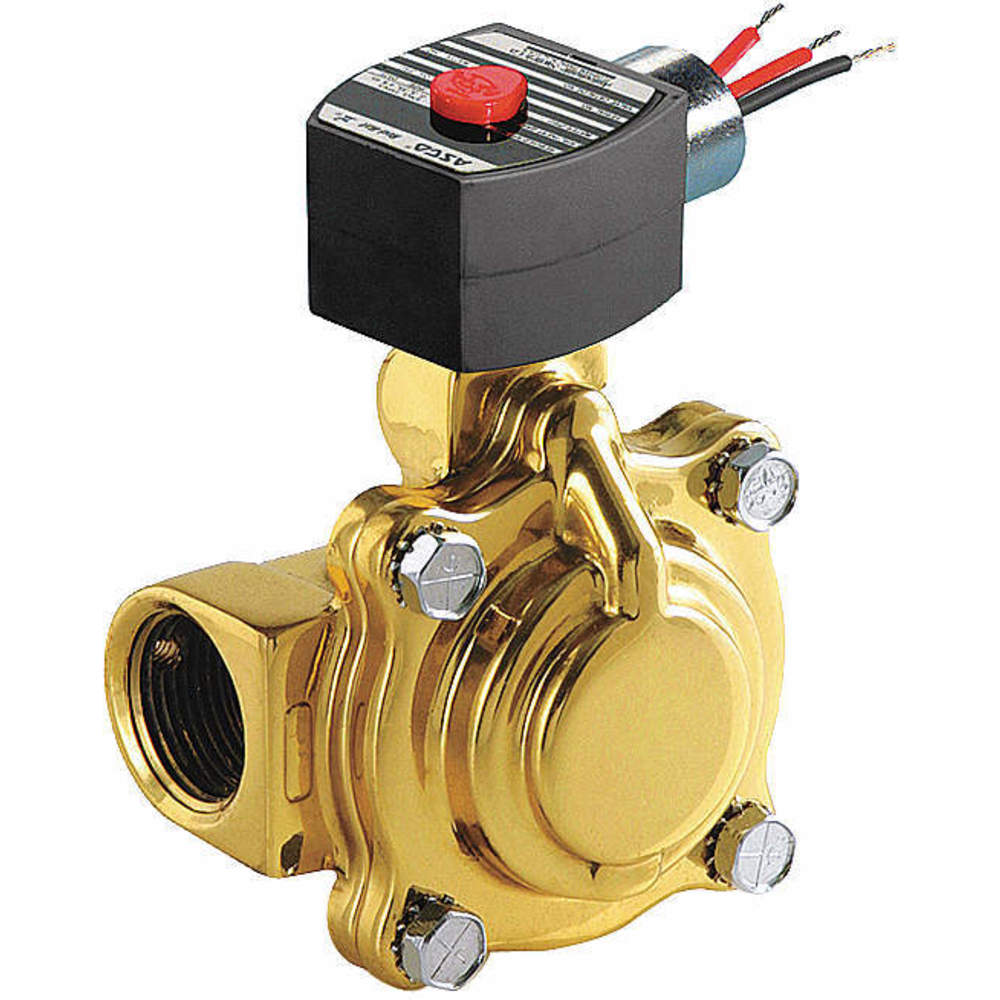

| A | EF8220G025 | Normally Closed | 1" | 353°F | 125°F | Explosion Proof | H | 13.5 | 1" | $1,358.55 | |
| B | 8220G095 | Normally Open | 3/4" | 353°F | 125°F | Watertight No Junction Box | H | 5 | 3/4" | $891.33 | |

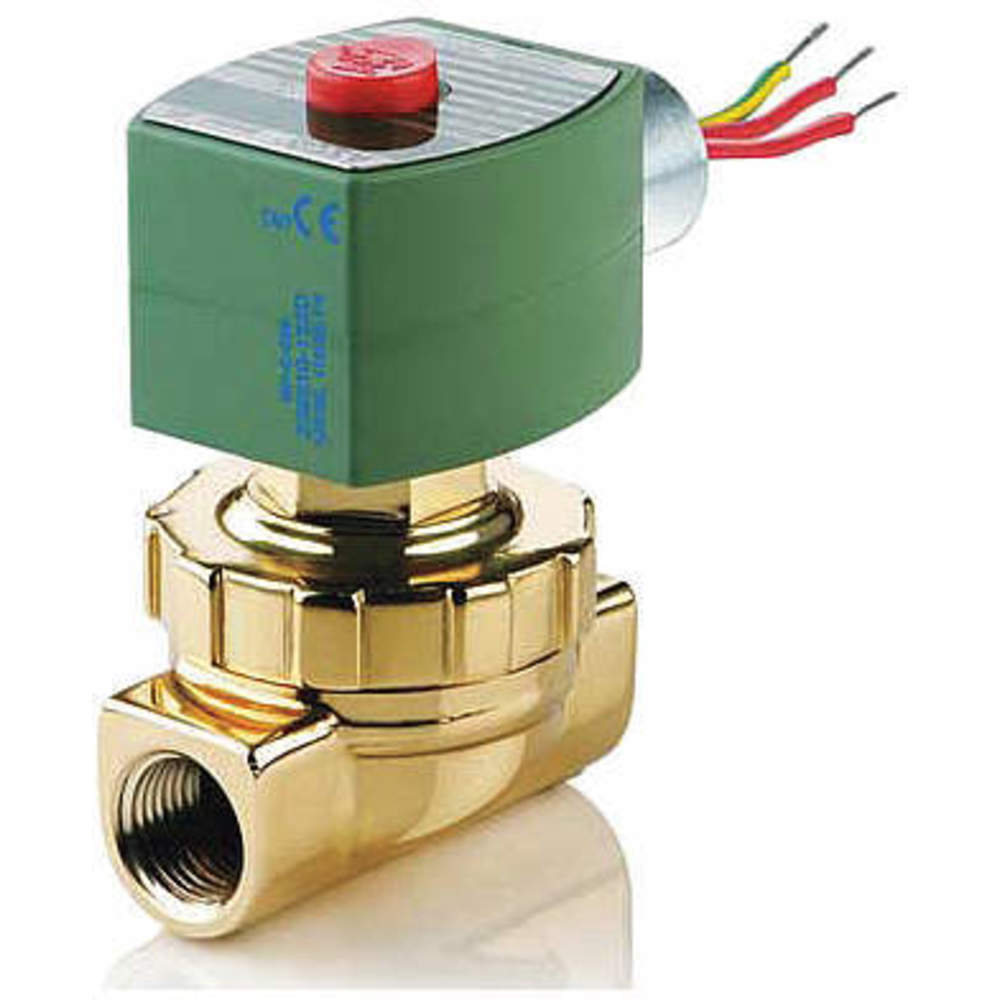

| C | 8220G401 | Normally Closed | 3/8" | 300°F | 125°F | Watertight No Junction Box | F | 4.4 | 1/2" | $369.19 | |
| C | 8220G403 | Normally Closed | 3/8" | 353°F | 140°F | Watertight No Junction Box | H | 4.4 | 1/2" | $489.57 | |
| C | 8220G404 | Normally Closed | 1/2" | 300°F | 125°F | Watertight No Junction Box | F | 4.7 | 1/2" | $382.11 | |
| C | 8220G406 | Normally Closed | 1/2" | 353°F | 140°F | Watertight No Junction Box | H | 4.7 | 1/2" | $713.81 | |
| C | 8220G405 | Normally Closed | 1/2" | 300°F | 125°F | Watertight No Junction Box | H | 4.7 | 1/2" | $706.07 |
