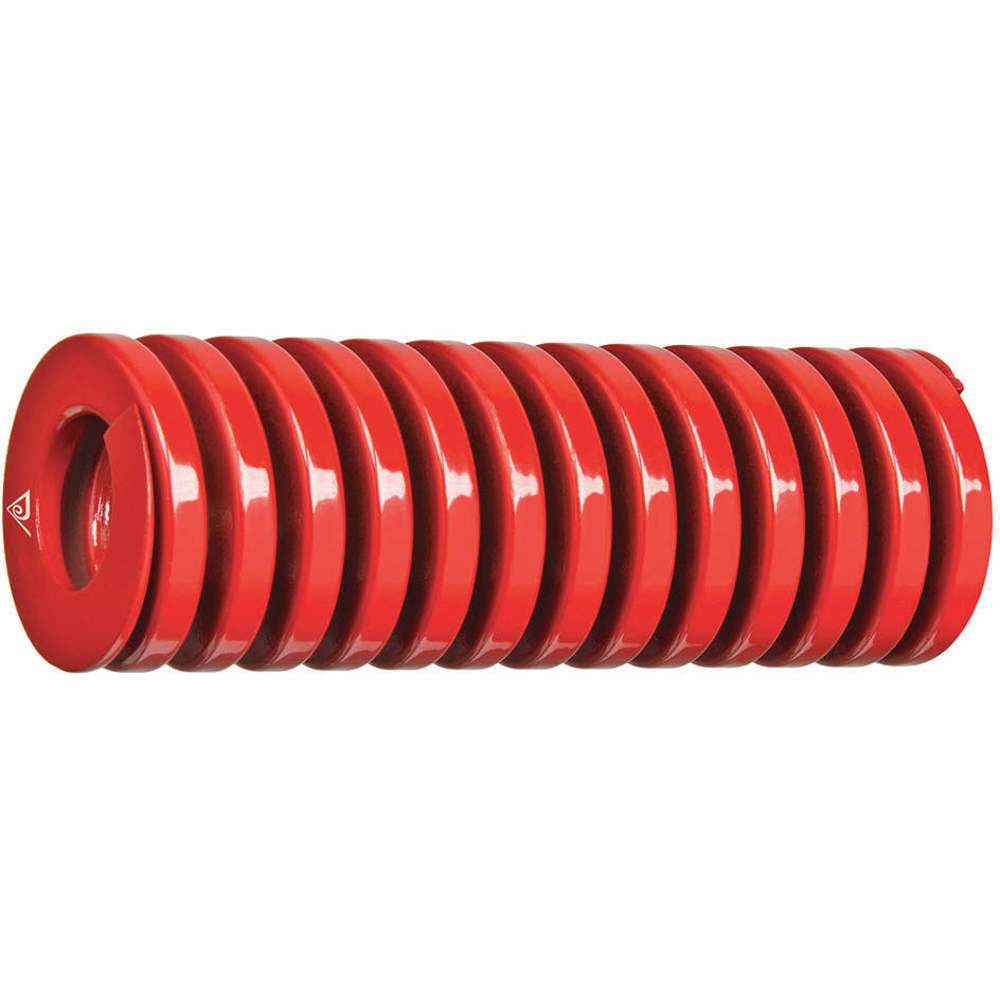

| Item | ISO D Die Spring |
|---|---|
| Color | Red |
| End Type | Closed, Grounded |
| Finish | Powder Coated |
| Free Length | 4.488" |
| Inner Dia. | 0.787" |
| Load At Max. Deflection For Long Life | 997.5 lbf. |
| Load At Max. Deflection For Optimal Life | 798.3 lbf. |
| Load Capacity | Not Rated |
| Material | Chrome Silicone |
| Max. Deflection | 1.67" |
|---|---|
| Max. Deflection For Long Life | 1.122" |
| Max. Deflection For Optimal Life | 0.898" |
| Max. Operating Deflection | 1.346" |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 1.5" |
| Solid Length | 2.818" |
| Spring Rate (stiffness) | 889 lbs./in. |
| Type | Heavy Duty |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 11.4 |
| Width (cm) | 3.81 |
| HS Code | 7320205060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.71 |
| Style | Model | Material | Free Length | Solid Length | Outer Dia. | Inner Dia. | Spring Rate (stiffness) | Load Capacity | Finish | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 305104D | Alloy Steel, Sillicon Wire | 63/64" | 0.614" | 0.375" | 0.197" | 133.6 lbs./in. | Not Rated | Chromium | 10 | $28.56 | |
| A | 305105D | Alloy Steel, Sillicon Wire | 1 17/64" | 0.78" | 0.375" | 0.197" | 102.8 lbs./in. | Not Rated | Chromium | 10 | $32.87 | |
| A | 305106D | Alloy Steel, Sillicon Wire | 1 1/2" | 0.836" | 0.375" | 0.197" | 94.8 lbs./in. | Not Rated | Chromium | 15 | $53.46 | |
| A | 305107D | Alloy Steel, Sillicon Wire | 1 47/64" | 0.952" | 0.375" | 0.197" | 82.8 lbs./in. | Not Rated | Chromium | 15 | $61.37 | |
| A | 305112D | Chrome Silicone | 2.992" | 1.692" | 0.375" | 0.197" | 45.1 lbs./in. | Not Rated | Powder Coated | 10 | $52.69 | |
| A | 305148D | Alloy Steel, Sillicon Wire | 12 1/64" | 6.708" | 0.375" | 0.197" | 10.8 lbs./in. | Not Rated | Chromium | 3 | $60.83 | |
| A | 305204D | Alloy Steel, Sillicon Wire | 63/64" | 0.544" | 0.5" | 0.281" | 242.1 lbs./in. | Not Rated | Chromium | 10 | $36.57 |
