| Item | Toggle Valve |
|---|---|
| Actuation Force @ 125 Psi | 14 oz. |
| Actuation Force @ 50 Psi | 8 oz. |
| Actuator Type | Toggle |
| Body Material | Aluminum, Brass |
| Coefficient Of Volume (cv) | 0.29 |
| Connection Type | Push In |
| Exhaust Port Connection Type | Unthreaded |
| Exhaust Time | 0.05 sec. |
| Fill Time | 0.01 sec. |
| Handle Type | Toggle |
| Max. Flow Rate | 22.1 SCFM |
| Max. Pressure | 125 psi |
| Maximum Flow Rate | 22.1 SCFM |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 125 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 160°F |
|---|---|
| Operating Temperature - Minimum | -20°F |
| Overall Height | 1 3/16" |
| Overall Length | 2 9/16" |
| Pipe Size | 1/4" |
| Product Type | Manual Air Control Valve |
| Return Action | Detent |
| Seal Material | Buna N |
| Seat Material | Buna N |
| Series | 11 Series |
| Stem Material | Brass |
| Temp. Range | -20°F to +160°F |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Closed |
| Valve Configuration | Normally Closed |
| Valve Port Connection Size | 1/4" |
| Valve Port Connection Type | Push On |
| Height (cm) | 1.78 |
|---|---|
| Length (cm) | 3.81 |
| Width (cm) | 6.35 |
| HS Code | 8481200070 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0023 |
| Style | Model | Body Material | Connection Type | Pipe Size | Stem Material | Handle Type | Overall Length | Temp. Range | Valve Configuration | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

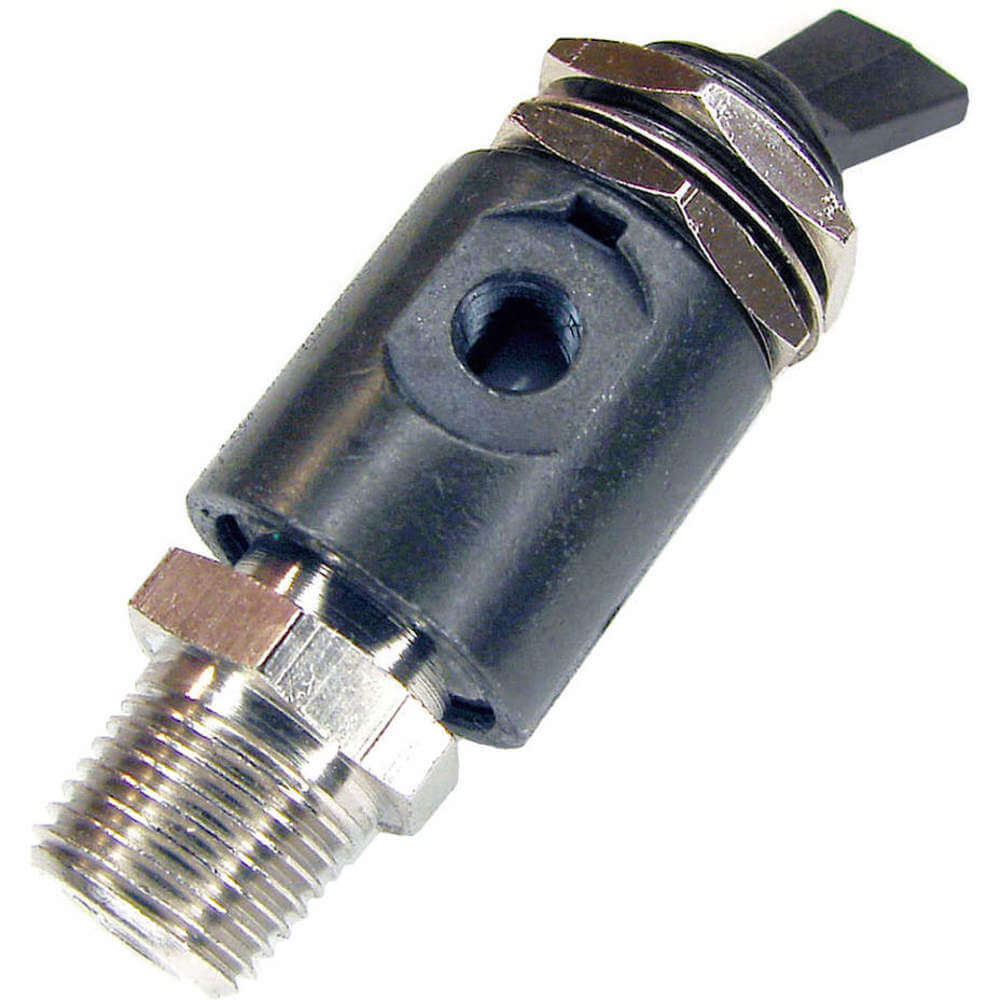

| A | H0-30-1 | Aluminum, Brass | NPT x Standard | 1/8" | Brass | Toggle | 2 5/8" | -20°F to +160°F | Normally Closed | $38.96 | |

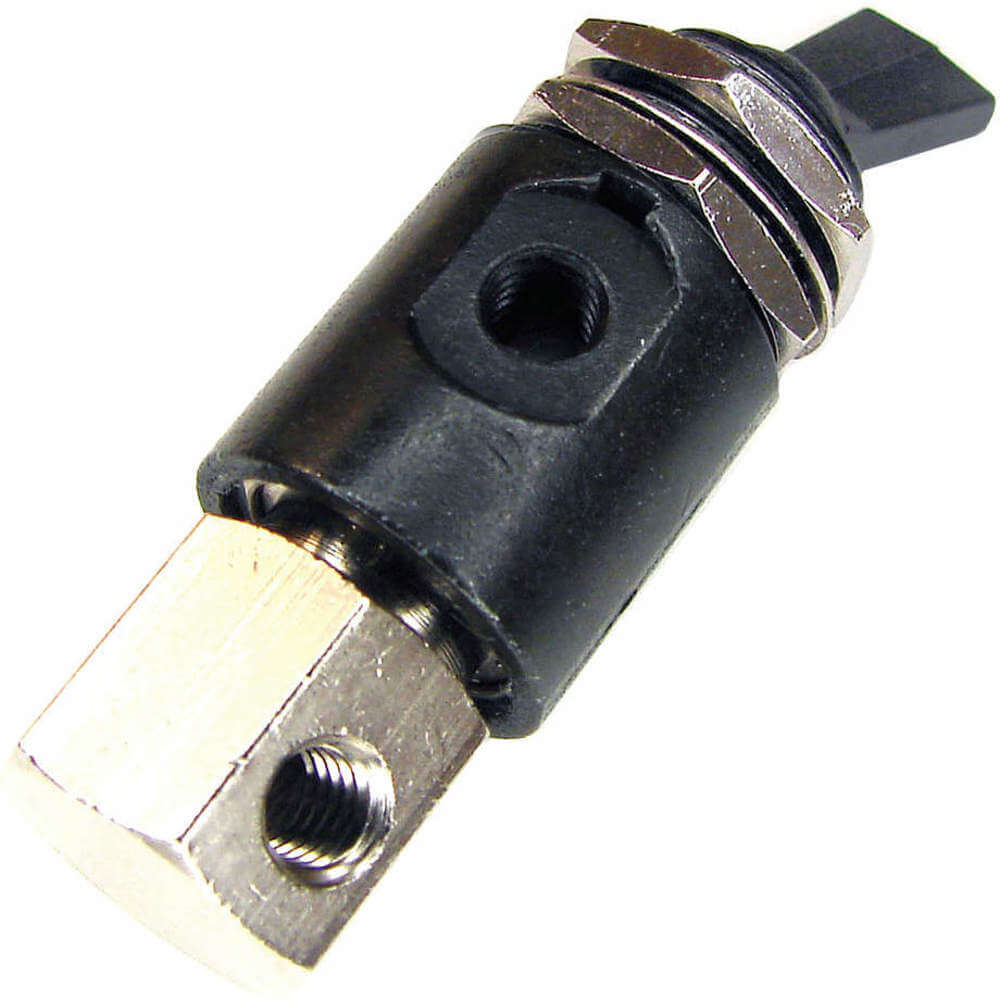

| B | H0-30-3 | Aluminum, Brass | - | - | Brass | Toggle | 2 5/8" | -20°F to +160°F | Normally Closed | $41.10 | |

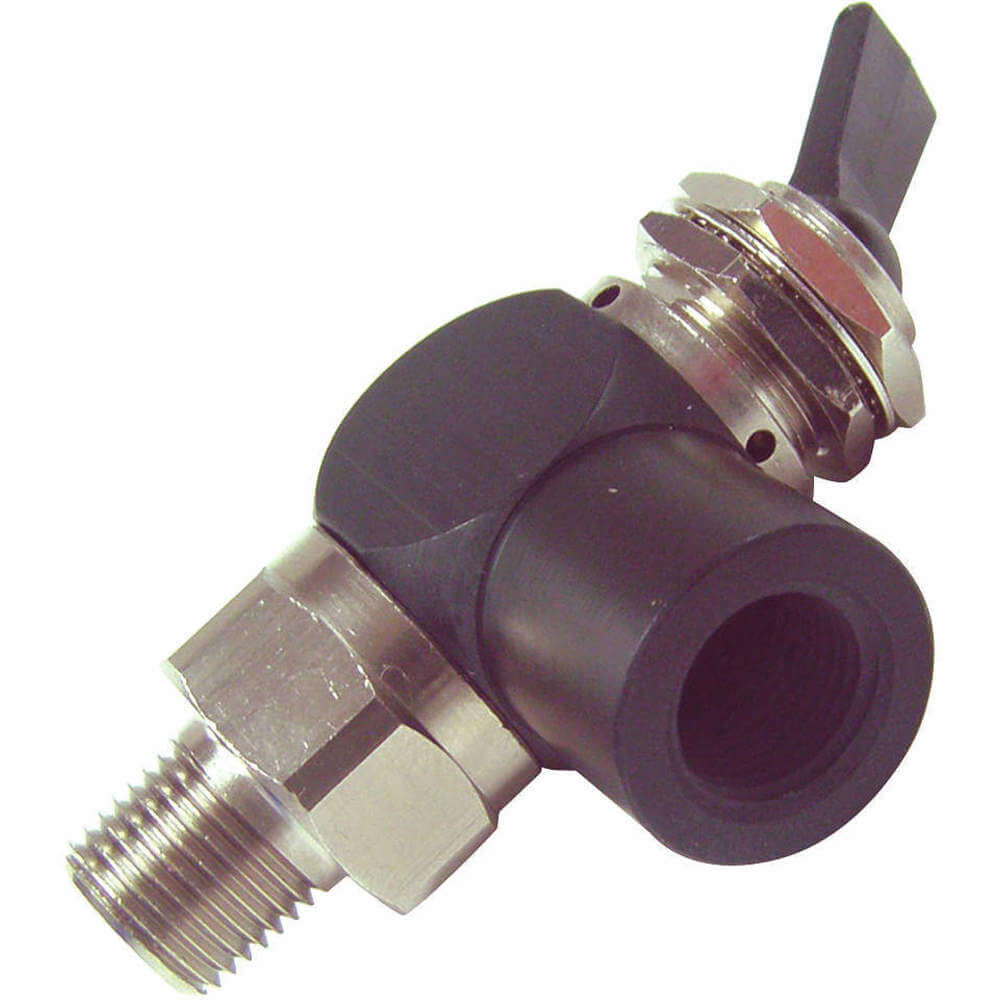

| C | H11-30-14 | Aluminum, Brass | MNPT x FNPT | - | Brass | Toggle | 2 3/8" | -20°F to +160°F | Normally Closed | $85.67 | |

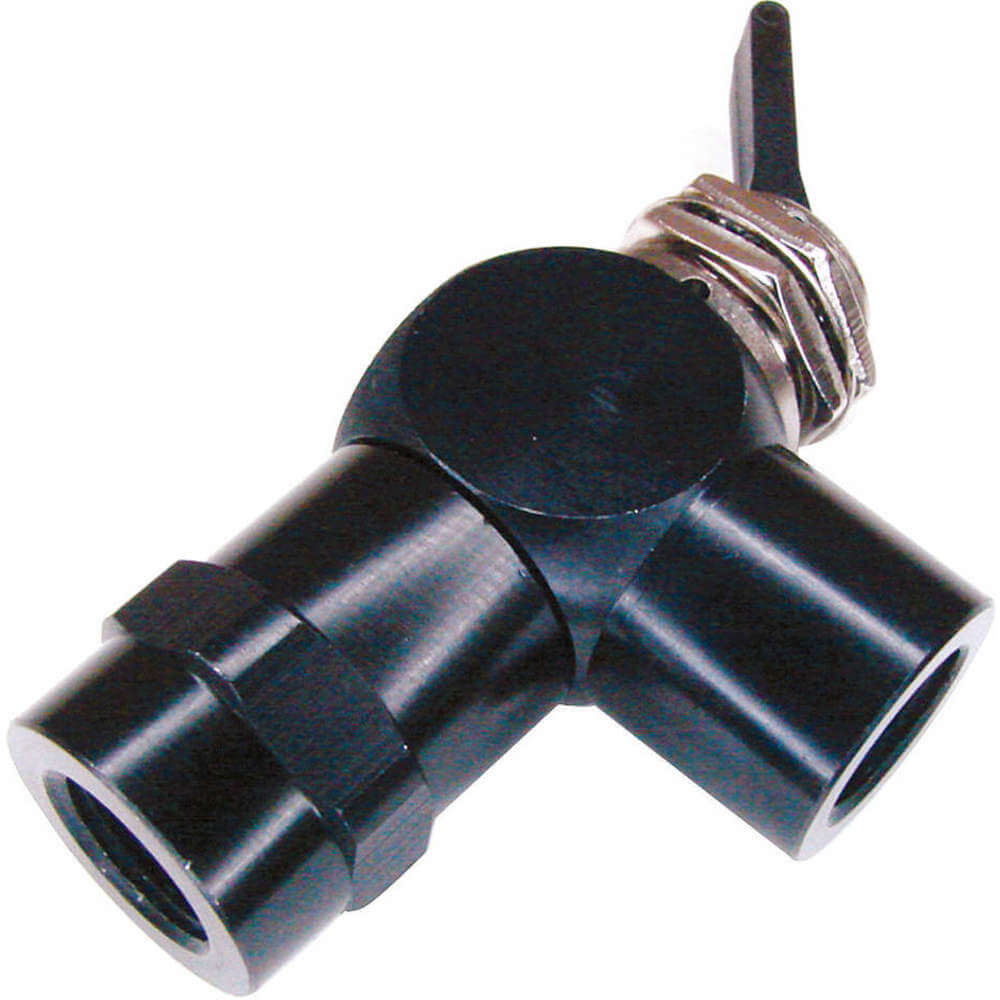

| D | H11-30-44 | Aluminum | FNPT | - | Brass | Toggle | 2 7/16" | -20°F to +160°F | Normally Closed | $83.57 | |

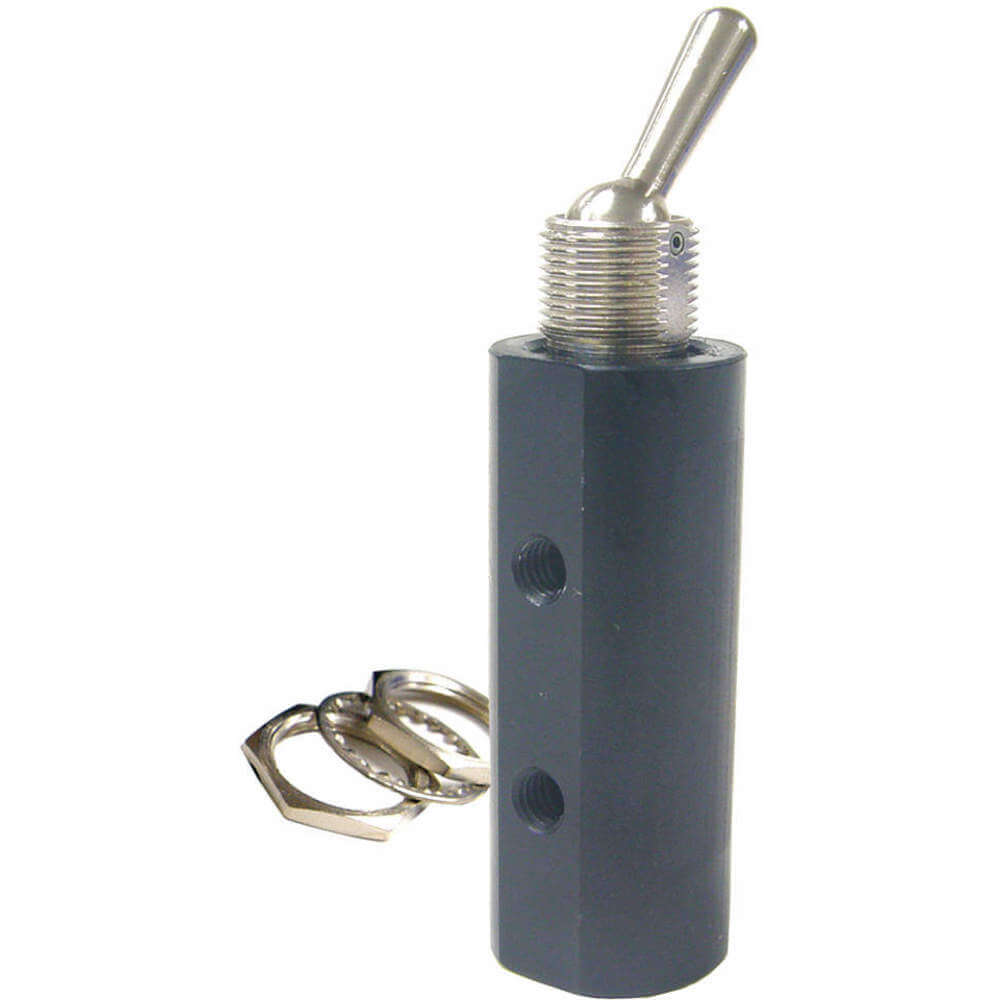

| E | HM45-100-DT | Aluminum, Brass | UNF | - | Brass | Detented Metal Toggle | 2 15/16" | -20°F to +160°F | - | $79.57 | |

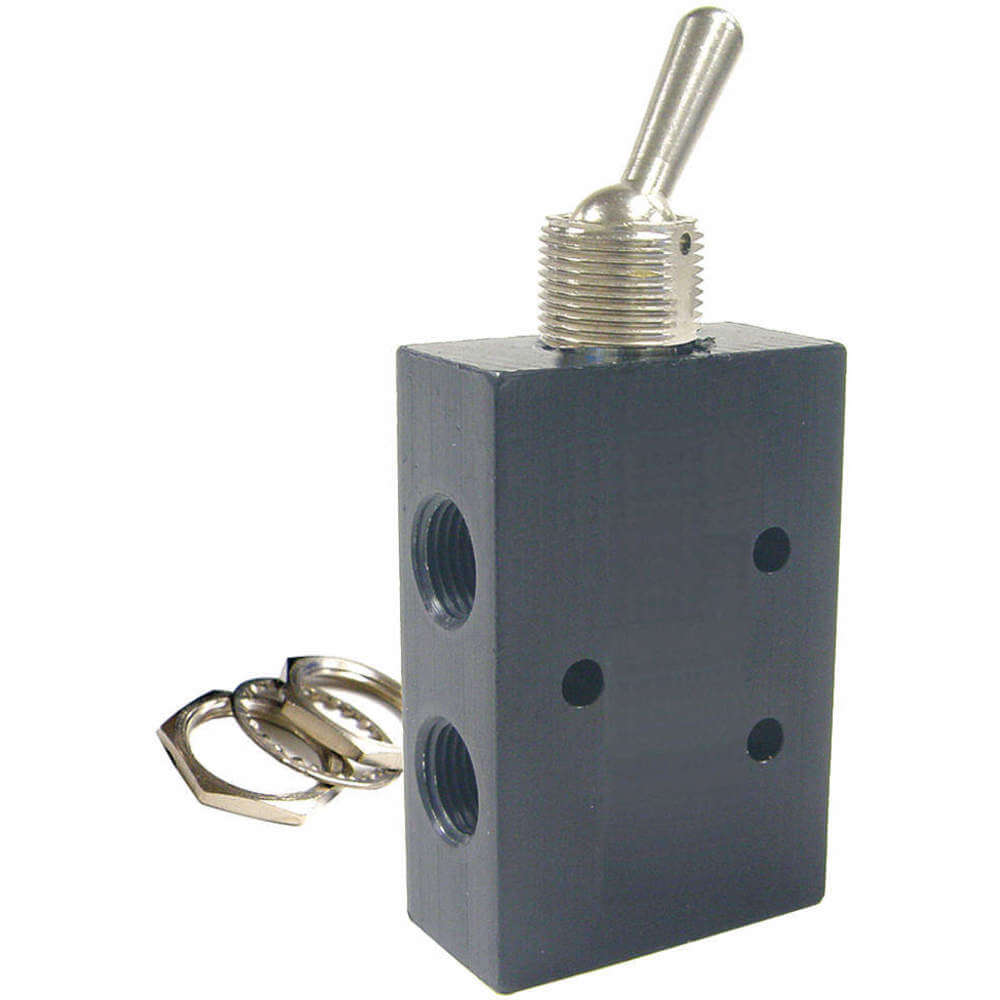

| F | HM45-1/8-DT | Aluminum | NPT | - | Brass | Detented Metal Toggle | 2 7/8" | -20°F to +160°F | - | $88.86 | |

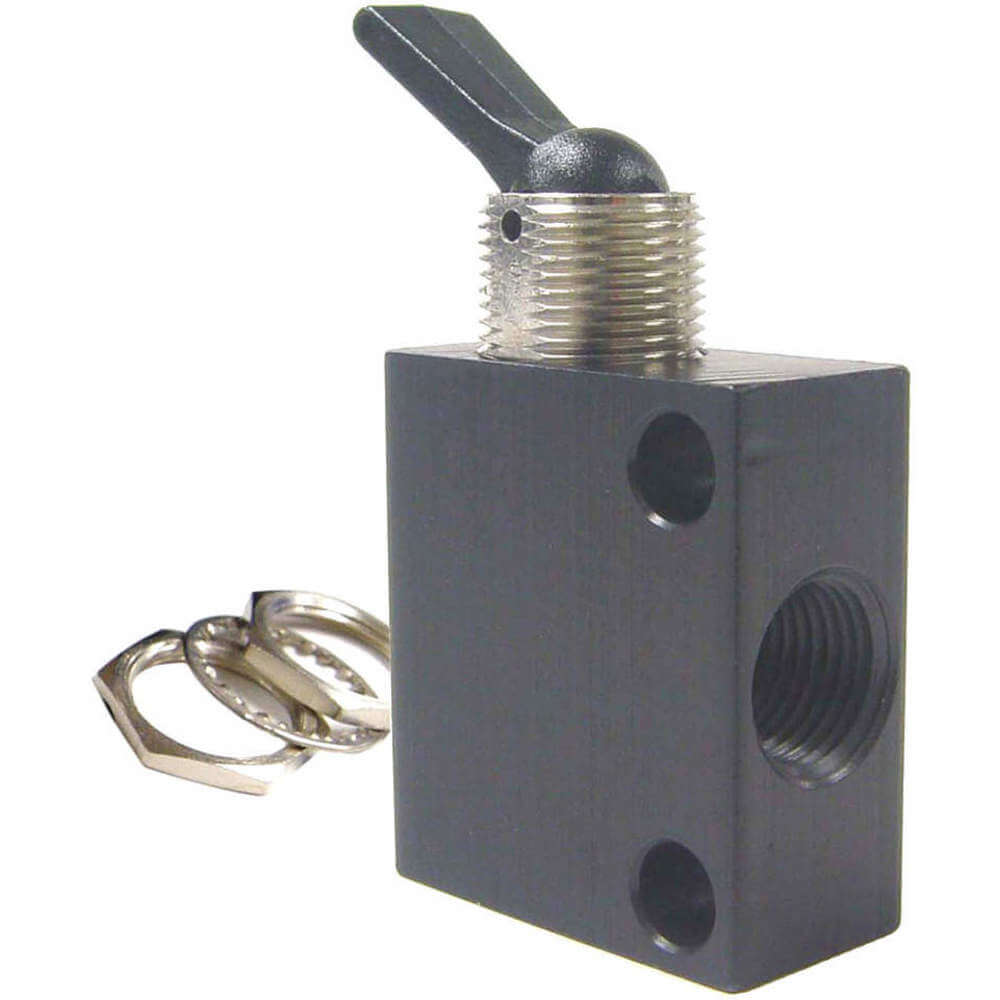

| G | C040101 | - | NPT | - | Brass | Detented Plastic Toggle | - | -20°F to +160°F | Normally Closed | $60.96 |
