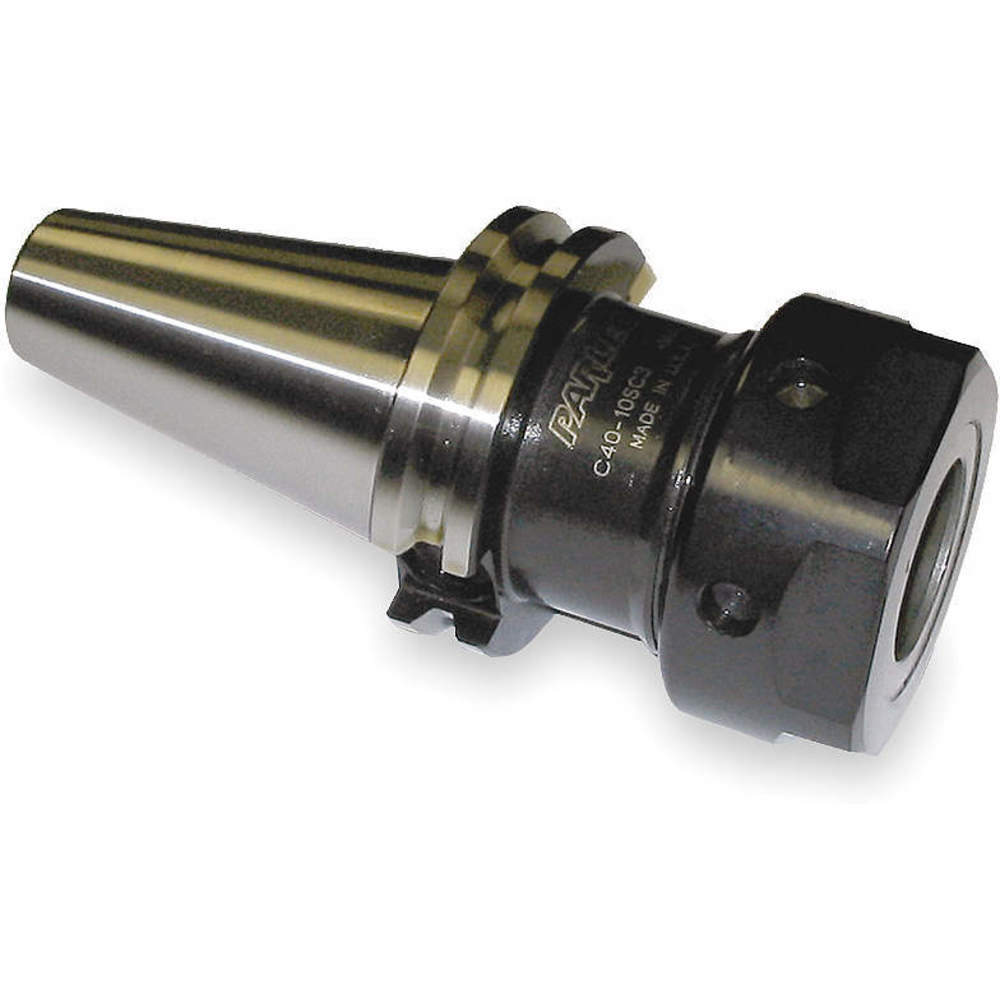

| Item | Collet Chuck |
|---|---|
| Ansi Code | B40-10SC3 |
| Bore Depth | 3 2/5" |
| Capacity | 0.0469" to 1" |
| Construction | Alloy Steel |
| Coolant Fed | Coolant Through |
| Coolant Supply | Non Coolant Through |
| Diameter | 2 11/25" |
| Features | Durable Service Life |
| Finish | Black Oxide |
| For Collet Series | PG100 Series |
| Includes Nut | Nut Included |
| Material | Steel |
| Nose Dia. | 2 11/25" |
|---|---|
| Number Of Coolant Ports | 0 |
| Nut Dia. | 2 11/25" |
| Nut Diameter | 2.44" |
| Product Type | Bt Collet Chuck |
| Projection | 3" |
| Projection Gage Line To Nose End | 3" |
| Socket Depth | 3 2/5" |
| T.i.r. Tolerance | 0.0002" |
| Taper Size | BT40 |
| Torque - Maximum | 60 lbs.-ft. |
| Standards | AISI 8620 |
| Height (cm) | 8.89 |
|---|---|
| Length (cm) | 21.59 |
| Width (cm) | 8.64 |
| HS Code | 8466100130 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.4175 |
| Style | Model | Projection | Nut Dia. | Material | Taper Size | Nose Dia. | Socket Depth | Projection Gage Line To Nose End | Max. Collet Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B40-10SC5 | 5" | 2 11/25" | Steel | BT40 | 2 11/25" | 5" | 5" | - | $339.30 | |

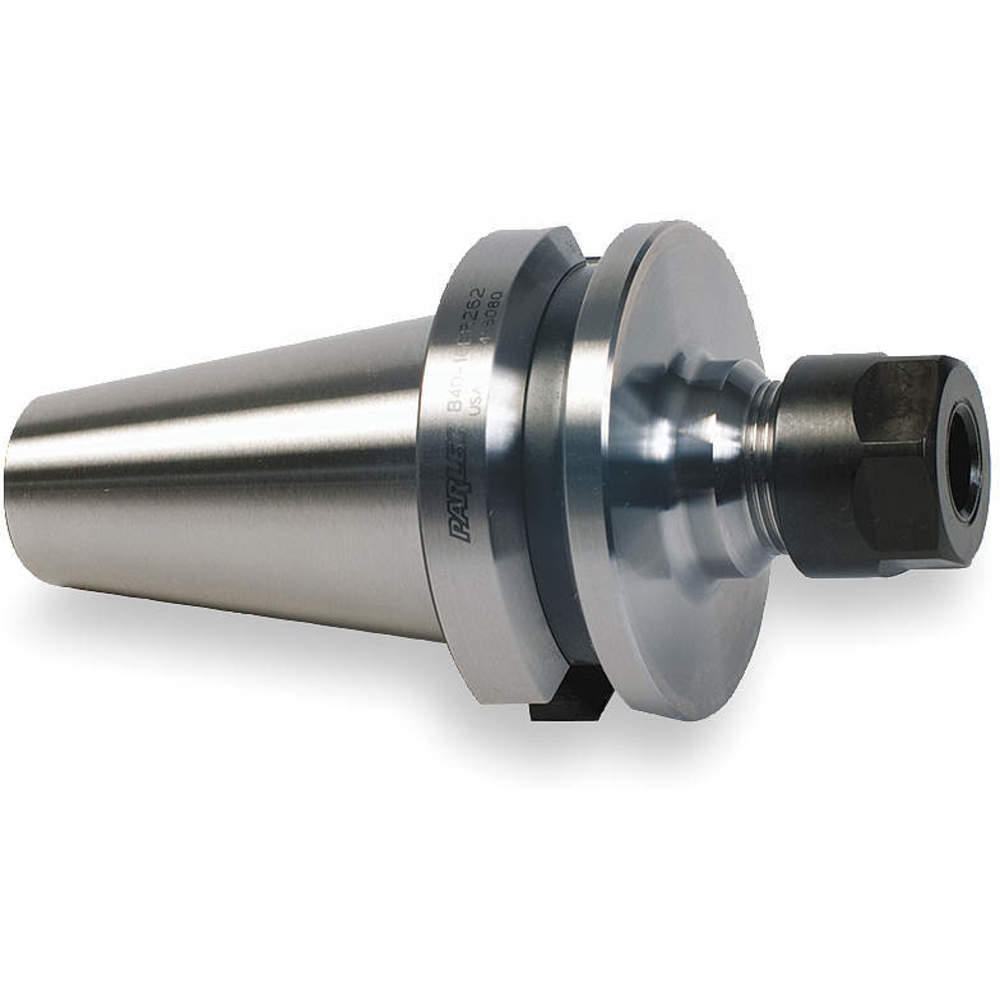

| B | B40-16ERF250 | 2 1/2" | 1.11" | Steel | BT40 | 1.11" | 1 23/25" | 2 1/2" | - | $263.26 | |
| B | B40-16ERF300 | 3" | 1.11" | Steel | BT40 | 1.11" | 2 3/25" | 3" | - | $263.26 | |
| B | B40-16ERF400 | 4" | 1.11" | Steel | BT40 | 1.11" | 3.62" | 4" | - | $263.26 | |
| B | B40-16ERF500 | 5" | 1.11" | Steel | BT40 | 1.11" | 2 3/25" | 5" | - | $285.80 | |
| C | B40-18DC3 | 3" | 1 11/25" | Steel | BT40 | 1 11/25" | 3 1/4" | 3" | - | $289.56 | |
| C | B40-20DC2 | 2 3/4" | 1.1" | Steel | BT40 | 1.1" | 2 1/4" | 2 3/4" | - | $293.67 |
