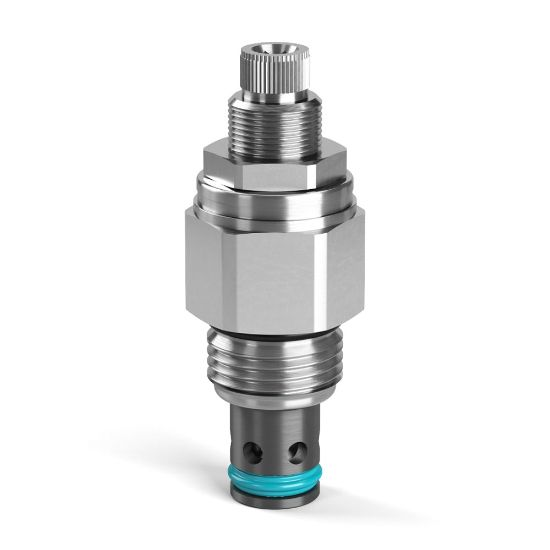

| Item | Relief Valve |
|---|---|
| Adjustment Type | Screw Terminals |
| Common Cavity | Size 8, 2 Way |
| Division | Hydraulic Cartridge Systems |
| Flow Rated | 20 GPM |
| Group | Hydraulic |
| Leakage | 5 cc Per 100 psi Setting |
| Max. Pressure | 5500 psi |
| Operating Temp. | -50°F to +200°F |
|---|---|
| Port Type | None Cartridge Only |
| Pressure Range | 200 psi to 3000 psi |
| Seals | D Ring |
| Series | RAH081 Series |
| Valve Body | B08-2 |
| Valve Type | Relief Valve |
| Valve Type Detail | Pilot Operated |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.125 |
| Style | Model | Max. Inlet Pressure | Body Material | Pressure Range | Pressure Rating | Max. Pressure | Max. Flow | Valve Type | Adjustment Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RAH081S50 | 5000 psi | Steel | 13.8 Bar to 345 Bar | 200 psi to 5000 psi | 5500 psi | 20 GPM | Pilot Operated Relief | Screw Adjustment | $179.87 | |
| B | RAH081S10 | - | - | - | - | - | - | - | - | $124.71 | |
| B | RAH081S30V | - | - | - | - | - | - | - | - | $132.43 |
