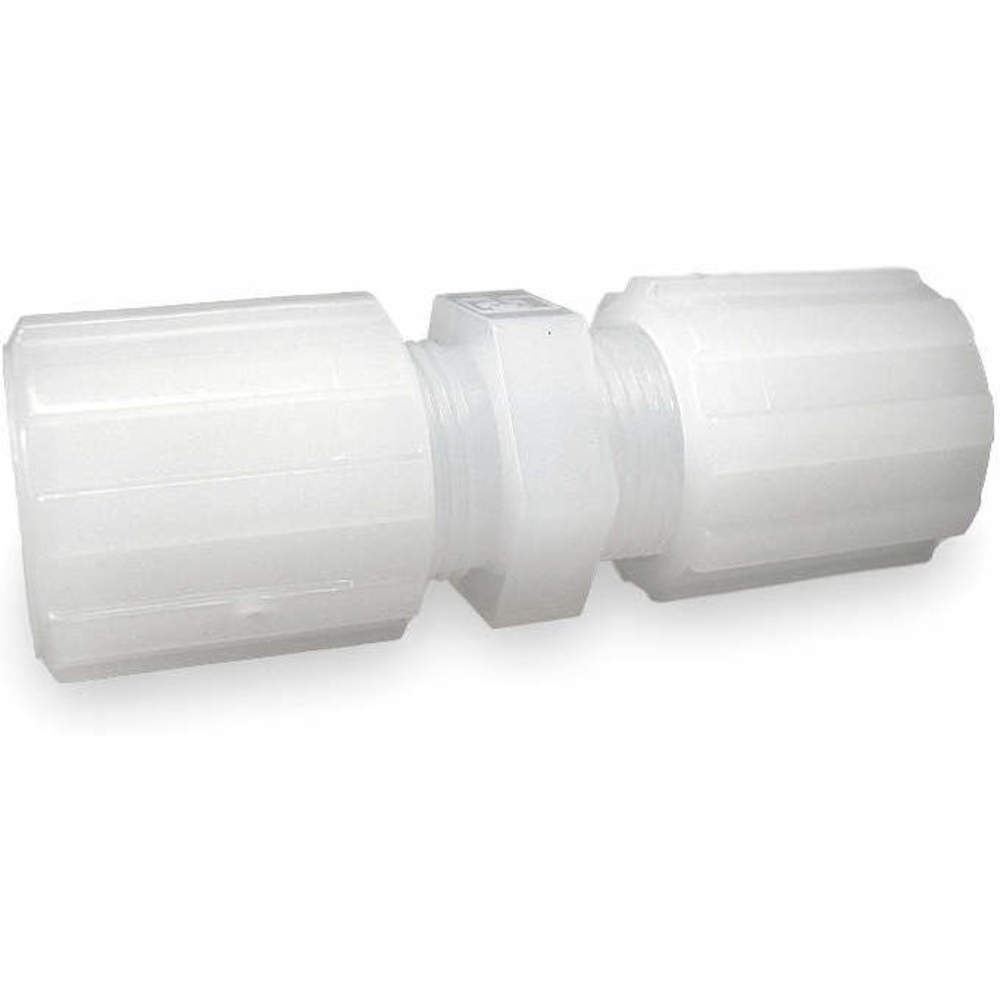

| Item | Straight Connector |
|---|---|
| Application | Chemicals |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Adapter |
| Connection Type | Flare |
| Fitting Material | PFA |
| Fitting Side A Connection Type | Inverted Flare |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Inverted Flare |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Flare Angle | 45° |
| Flare Type | 45° |
| Max. Operating Pressure | 125 psi |
|---|---|
| Max. Pressure | 125 psi |
| Maximum Operating Temperature | 212°F |
| Minimum Operating Temperature | 0°F |
| Overall Length | 2 31/32" |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Specific Pipe Fitting Shape | Connector |
| Standards | Fda Approved |
| Temp. Range | 0°F to +212°F |
| Tube Size | 1/2" |
| Height (cm) | 2.79 |
|---|---|
| Length (cm) | 7.54 |
| Width (cm) | 2.79 |
| HS Code | 3917400090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.054 |
| Style | Model | Tube Size | Pipe Size | Body Material | Hex Size | Max. Operating Pressure | Connection Type | Max. Pressure | Shape | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4FSC4N-316 | 1/4" | 1/4" | Stainless Steel | 3/4" | 10300 psi | A LOK x FNPT | 6600 psi | - | $58.64 | |
| A | 6FSC4N-316 | 3/8" | 1/4" | Stainless Steel | 3/4" | 6600 psi | A LOK x FNPT | 6600 psi | - | $62.40 | |
| A | 8FSC8N-316 | 1/2" | 1/2" | Stainless Steel | 1 1/16" | 6700 psi | Two Ferrule | 5200 psi | NPT Female Connector | $117.06 | |

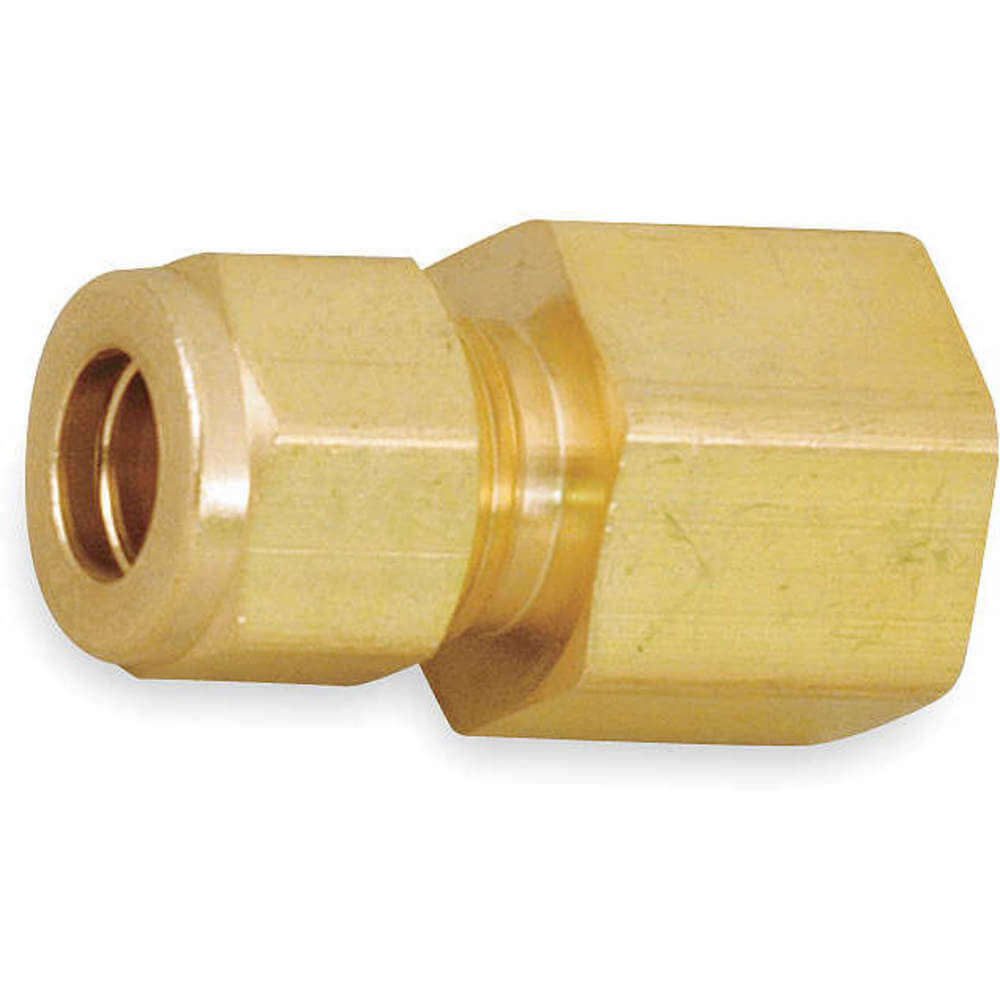

| B | 4FSC4N-B | 1/4" | 1/4" | Brass | 3/4" | 10300 psi | A LOK x FNPT | 4300 psi | - | $28.56 | |
| B | 6FSC4N-B | 3/8" | 1/4" | Brass | 3/4" | 6600 psi | A LOK x FNPT | 4300 psi | - | $39.79 | |
| B | 8FSC8N-B | 1/2" | 3/4" | Brass | 1 1/16" | 6700 psi | A LOK x FNPT | 3000 psi | - | $59.39 | |
| B | 10FSC8N-B | 5/8" | 1/2" | Brass | 1 1/16" | 6100 psi | A LOK x FNPT | - | - | $67.61 |
