| Item | Hose Barb |
|---|---|
| Application | Air |
| Barb Size | 0.377" |
| Barb Style | Double Barb |
| Basic Material | Metal |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Plug |
| Body Material | Brass |
| Color | Brass |
| Compatible Tube Material | Polyethylene |
| Configuration Sub-type | Plug |
| Configuration Type | Auxiliary |
| Connection Type | Barbed |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 1/2" |
| Inner Dia. 1 | 3/8" |
| Material | Brass |
| Material Grade | Ca360 |
| Max. Operating Temp. | 32°C |
|---|---|
| Max. Pressure | 100 psi |
| Max. Working Pressure | 150 psi |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 90°F |
| Min. Operating Temp. | -53°C |
| Minimum Operating Temperature | 65°F |
| Outer Dia. 1 | 1/2" |
| Overall Length | 13/16" |
| Series | DUBL BARB Series |
| Shape | Plug |
| Specific Fitting Shape | Plug |
| Specific Pipe Fitting Shape | Plug |
| System Of Measurement | Inch |
| Temp. Range | -65°F to +75°F |
| Tube Fitting Material | Brass |
| Tube Material | Polyethylene |
| Tube Outside Dia. | 1/2" |
| Type | Tube |
| Height (cm) | 1.52 |
|---|---|
| Length (cm) | 2.06 |
| Width (cm) | 1.52 |
| HS Code | 7307199040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.009 |
| Style | Model | Application | Pipe Size | Tube Outside Dia. | Specific Fitting Shape | Material | Barb Size | Overall Length | Hex Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 20-4 | Air | - | 1/4" | Plug | Brass | 0.17" | 9/16" | - | $4.36 | |
| A | 20-6 | Air | - | 3/8" | Plug | Brass | 1/4" | 11/16" | - | $6.94 | |

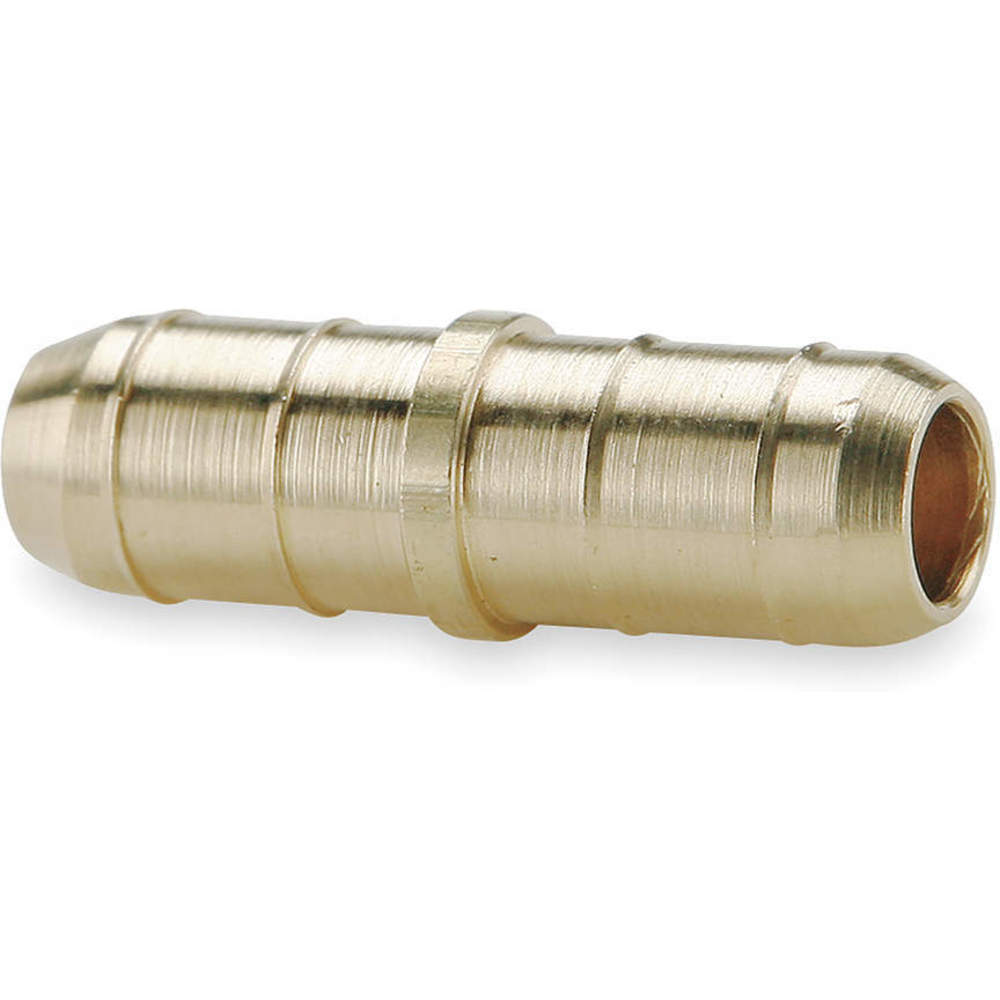

| B | 22-4 | Air | - | 1/4" | Straight Connector | Brass | 0.17" x 0.17" | 27/32" | - | $2.36 | |

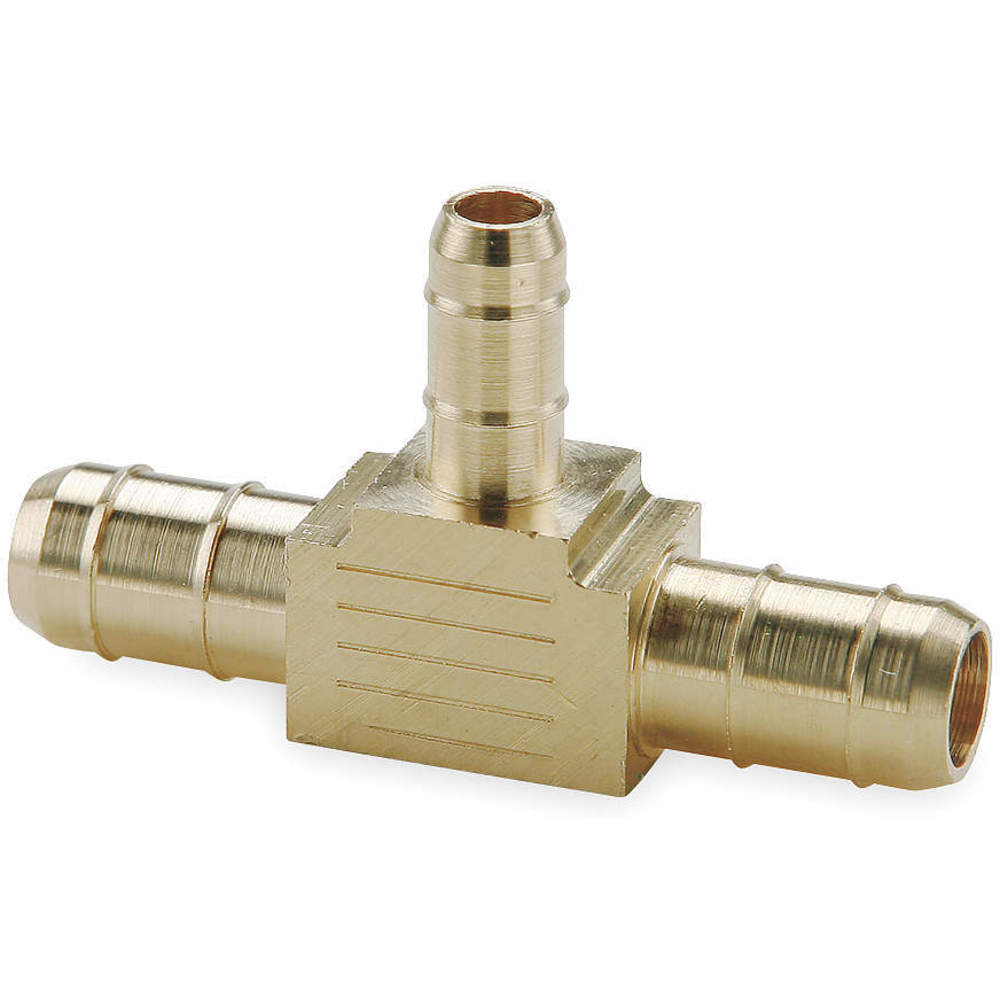

| C | 224-4-4-5/32 | Potable Water | 5/32" | 1/4" | Tee | Brass | 0.17" x 0.17" x 0.096" | 1 1/4" | - | $9.54 | |

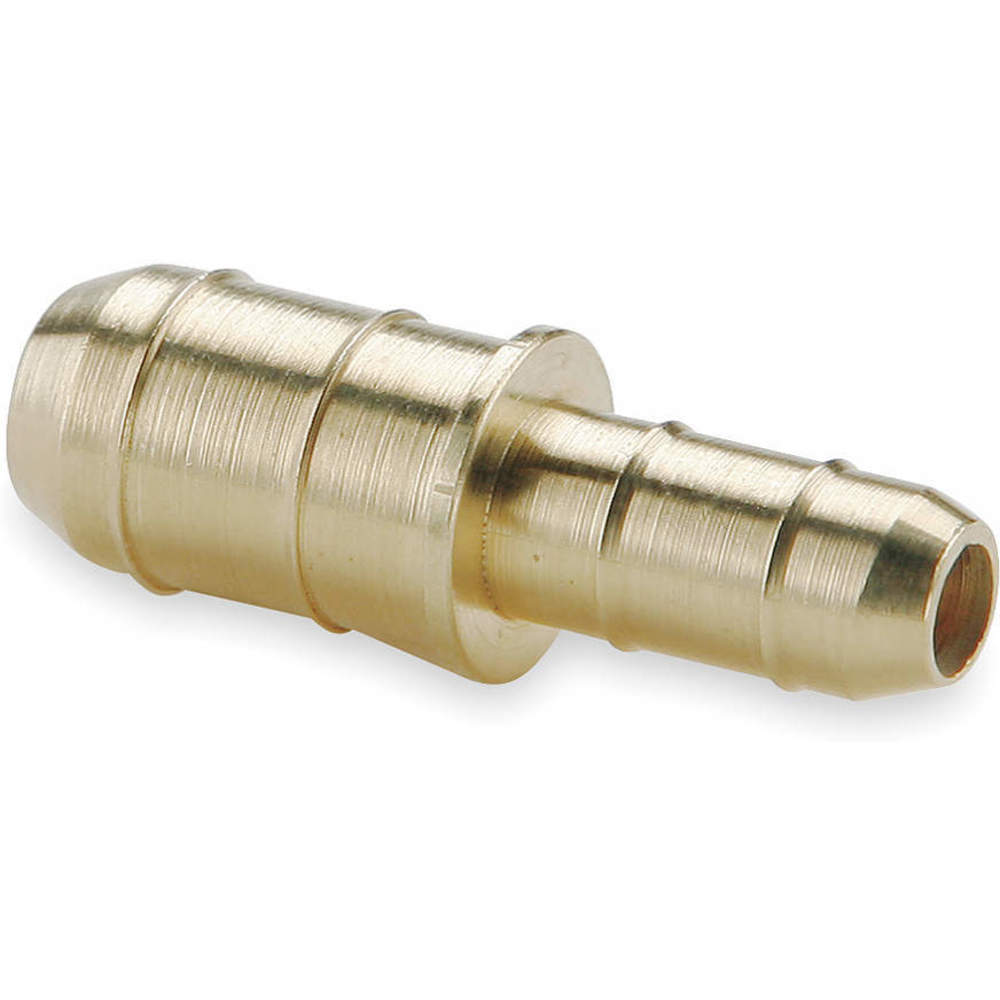

| D | 22-4-5/32 | Air | 5/32" | 1/4" | Straight Reducing Connector | Brass | 0.17" x 0.096" | 23/32" | - | $7.53 | |
| D | 22-4-6 | Air | - | 1/4" | Straight Reducing Connector | Brass | 0.17" x 0.25" | 7/8" | - | $6.24 | |
| C | 224-6-6-4 | Potable Water | 1/4" | 3/8" | Tee | Brass | 0.25" x 0.25" x 0.17" | 1 3/8" | - | $6.97 |
