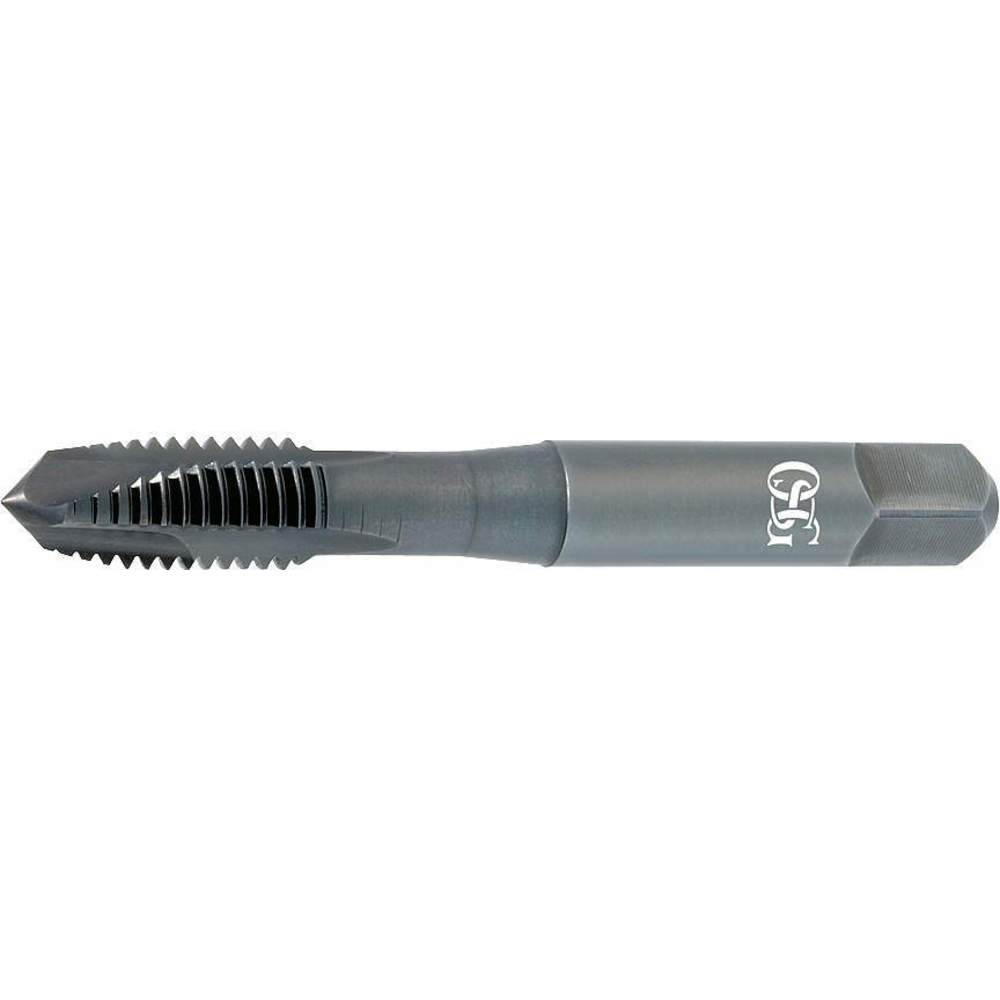

| Item | Spiral Point Tap |
|---|---|
| 55% Thread Drill Size | #32 |
| 65% Thread Drill Size | #34 |
| 75% Thread Drill Size | #36 |
| Class Of Fit | Class H3 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.1055", 0.1076", 0.1096", 0.1116", 0.1136" |
| Extended Neck | Yes |
| Finish | Bright |
| List Number | 280 |
| Material | High Speed Steel |
| Measurement System | Pipe |
| Number Of Flutes | 2 |
| Overall Length | 2" |
| Pitch Diameter Limits | H11 |
| Pitch Type | 32 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 9/64" |
|---|---|
| Shank Length | 1 5/16" |
| Shank Type - Machining | Straight |
| Size | #6 |
| Spiral Direction | Neutral |
| Square Size | 0.109" |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | HSS E |
| Tap Thread Size | #6-32 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 5/16" |
| Thread Limit | H11 |
| Thread Limit / Class Of Fit | H11, H3 |
| Thread Size | #6-32 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 32 |
| Height (cm) | 0.76 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 0.76 |
| HS Code | 8207400000 |
|---|---|
| Weight (kg) | 0.0068 |
| Style | Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | Tap Finish | 75% Thread Drill Size | Thread Limit | Pitch Diameter Limits | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2893708 | 9 mm | 60 mm | 3 | M5 X 0.8 | TiCN | 4.2 mm | D11 | D11 | $58.61 | |
| B | 2806008 | 1/2" | 1 25/32" | 2 | #3-48 | TiCN | 2 mm | H2 | H2 | $49.86 | |
| B | 2806408 | 1/4" | 1 27/32" | 2 | #4-40 | TiCN | 2.2 mm | H2 | H2 | $41.01 | |
| B | 2807008 | 5/8" | 1.938" | 2 | - | - | - | - | H2 | $41.01 | |
| B | 2807408 | 5/16" | 2" | 2 | #6-32 | TiCN | #36 | H2 | H2 | $35.20 | |
| B | 2807600 | 5/16" | 2" | 2 | #6-40 | Bright | #33 | H2 | H2 | $30.24 | |
| B | 2807601 | 5/16" | 2" | 2 | #6-40 | Black Oxide | #33 | H2 | H2 | $33.76 |
