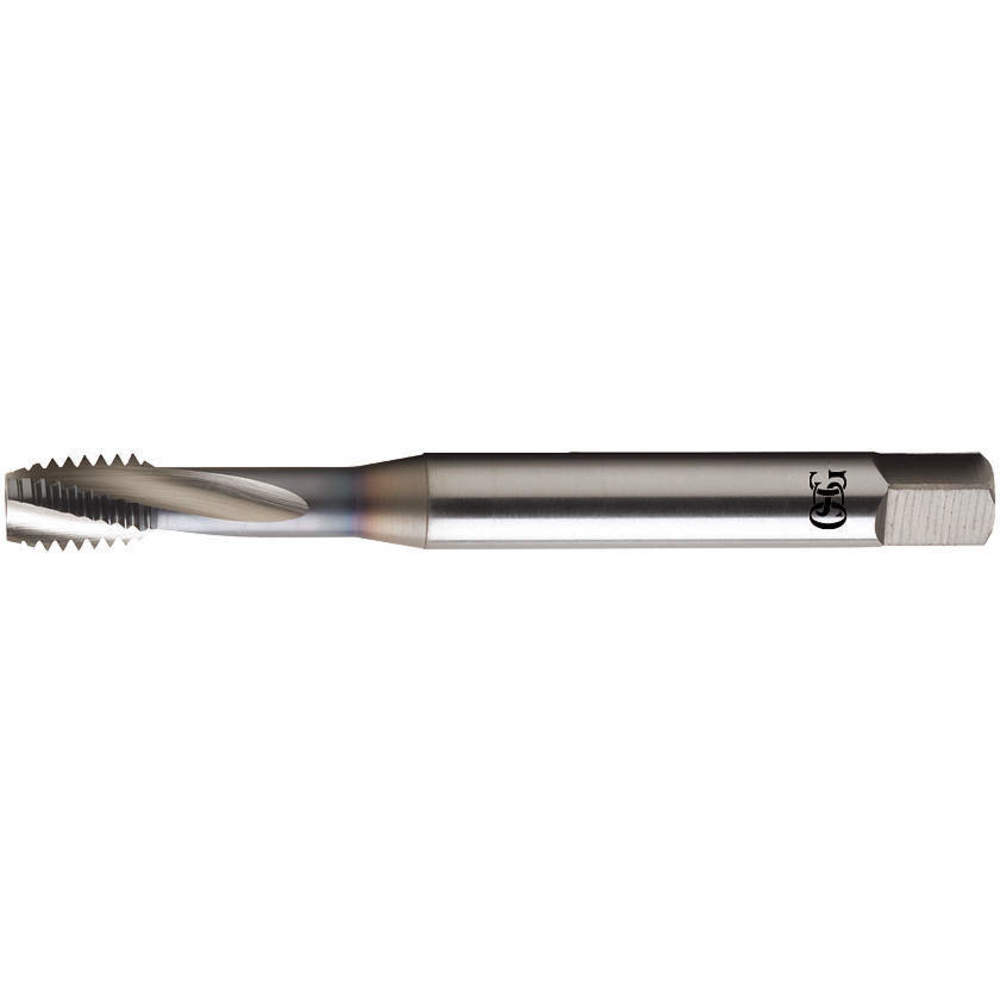

| Item | Spiral Flute Tap |
|---|---|
| 65% Thread Drill Size | 10.94 mm |
| 75% Thread Drill Size | 10.78 |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 10.70 mm, 10.78 mm, 10.86 mm, 10.94 mm, 11.03 mm |
| Extended Neck | Yes |
| Features | High Performance Spiral Flute Taps For Alloy Steels |
| Finish | TiCN |
| Helix Angle | 15° |
| List Number | 13113 |
| Material | High Speed Steel |
| Material Grade - Machining | Grade 13113 |
| Measurement System | Metric |
| Number Of Flutes | 4 |
| Overall Length | 100 mm |
| Pitch Diameter Limits | 6H |
| Pitch Type | 1.25 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | All Materials |
| Secondary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 9.32 mm |
|---|---|
| Shank Length | 51 mm |
| Shank Type - Machining | Straight |
| Size | M12 |
| Square Size | 6.98 mm |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M12 x 1.25 |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 9 mm |
| Thread Limit | 6H |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 1.25 mm |
| Thread Size | M12 x 1.25 |
| Thread Standard | Metric Fine |
| Thread Type | Metric Fine |
| Height (cm) | 1.9 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 1.9 |
| HS Code | 8207400000 |
|---|---|
| Weight (kg) | 0.0495 |
| Style | Model | Overall Length | Number Of Flutes | Thread Length | Thread Size | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1311300608 | 90 mm | 3 | 8 mm | M8 x 1.25 | H | 6H | 8.07 mm | Metric Coarse | $129.21 | |
| A | 1311300708 | 100 mm | 4 | 9 mm | M10 x 1.25 | 0.3438" | 6H | 9.67 mm | Metric Fine | $150.47 | |
| A | 1311301008 | 100 mm | 4 | 9 mm | M12 x 1.5 | 10.5 | 6H | 9.32 mm | Metric Fine | $171.00 | |
| B | 1301300508 | 3 1/8" | 3 | 3/8" | 1/4"-20 | #7 | 2B | 1/4" | Coarse | $109.91 | |
| B | 1301300608 | 80 mm | 3 | 1" | - | - | - | 0.255" | Fine | $108.13 | |
| B | 1301300708 | 3 17/32" | 3 | 7/16" | 5/16"-18 | F | 2B | 5/16" | Coarse | $119.70 | |
| B | 1301300808 | 3 17/32" | 3 | 7/16" | 5/16"-24 | I | 2B | 5/16" | Fine | $119.70 |
