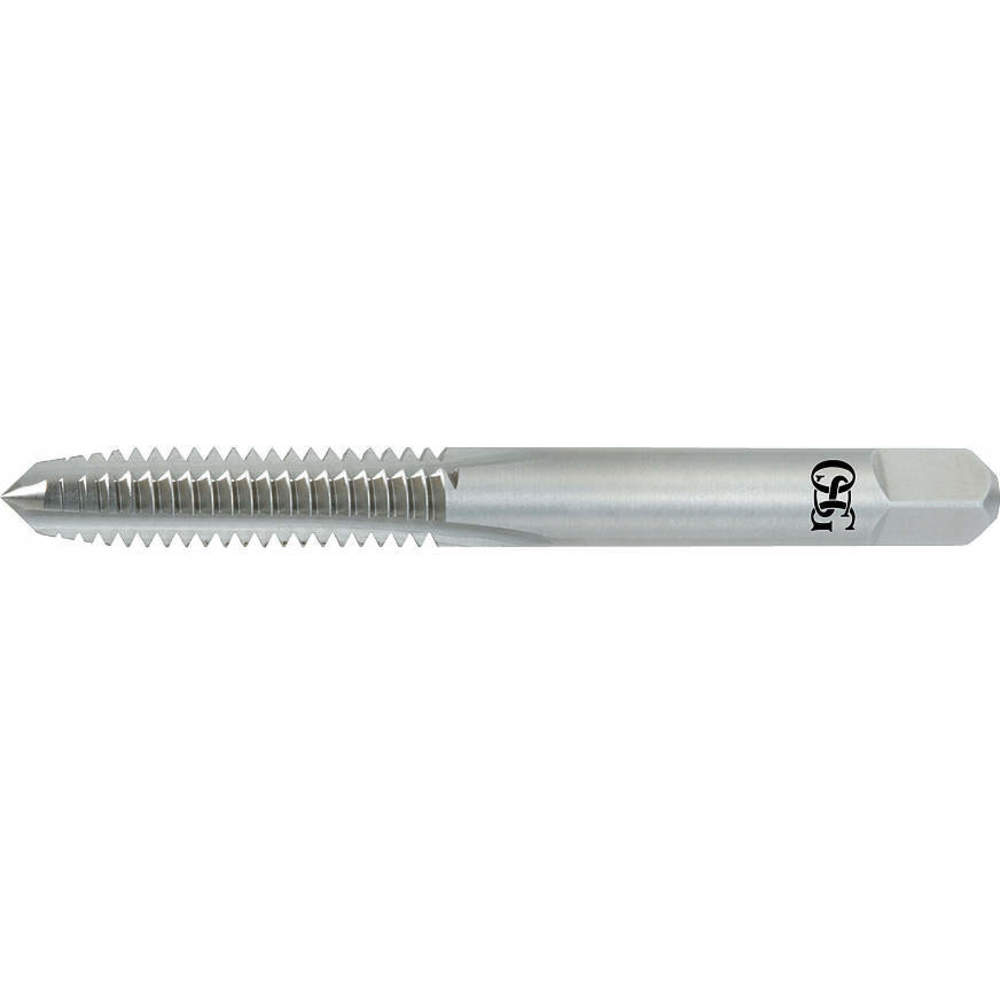

| Item | Straight Flute Tap |
|---|---|
| Finish | S/O |
| List Number | 103 |
| Material | High Speed Steel |
| Number Of Flutes | 3 |
| Overall Length | 2 23/32" |
| Pitch | 24 |
| Pitch Diameter Limits | H3 |
|---|---|
| Shank Dia. | 0.318" |
| Size | 5/16" |
| Tap Style | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 1.125" |
| Thread Type | UNF |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 1.27 |
| HS Code | 8207400000 |
|---|---|
| Weight (kg) | 0.0202 |
| Style | Model | Thread Length | Overall Length | Number Of Flutes | Thread Size | 75% Thread Drill Size | Shank Dia. | Thread Type | Tap Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1170401 | 11/16" | 2 1/2" | 3 | 1/4"-28 | 5.45 mm | 1/4" | Fine | Plug | $21.24 | |
| A | 1170501 | 1" | 2 1/2" | 3 | - | - | 0.255" | Fine | Bottoming | $20.29 | |
| A | 1171001 | 13/16" | 2 23/32" | 3 | 5/16"-24 | I | 5/16" | Fine | Plug | $23.76 | |
| A | 1171301 | 7/8" | 2 29/32" | 3 | 3/8"-16 | 5/16" | 3/8" | Coarse | Plug | $27.31 | |
| A | 1171401 | 7/8" | 2 29/32" | 3 | 3/8"-16 | 5/16" | 3/8" | Coarse | Bottoming | $24.71 | |
| A | 1171601 | 1 1/4" | 2.938" | 3 | - | - | 0.381" | Fine | Plug | $33.60 | |
| A | 1171701 | 7/8" | 2 29/32" | 3 | 3/8"-24 | 8.5 mm | 3/8" | Fine | Bottoming | $31.04 |
