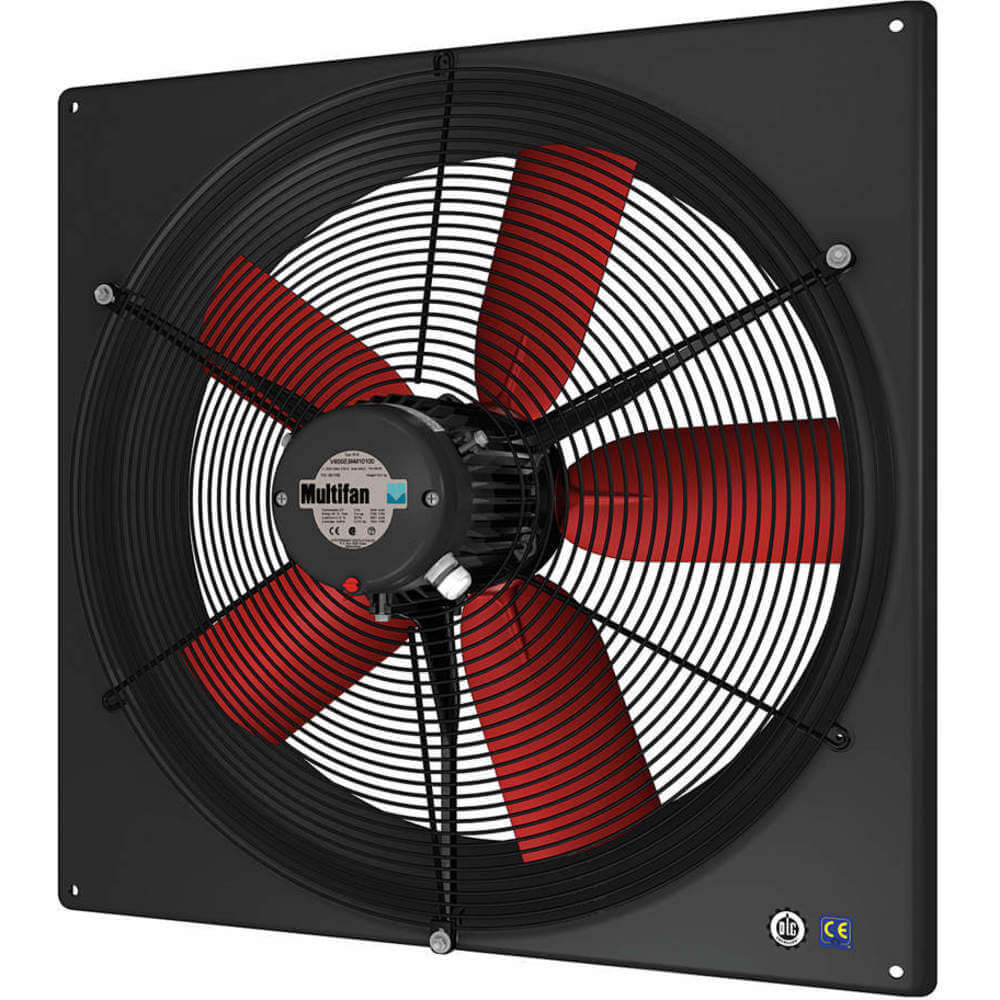

| Item | Exhaust Fan |
|---|---|
| Assembled | Assembled |
| Bearing Type | Sealed Ball |
| Blade Diameter | 18" |
| Blade Material | Polypropylene |
| Cfm @ 0.000-in. Sp | 3750 CFM |
| Cfm @ 0.050-in. Sp | 3625 CFM |
| Cfm @ 0.125-in. Sp | 3500 CFM |
| Drive Type | Direct Drive |
| For Cut-out Height | 19 1/2" |
| Frame Material | Fiberglass |
| Full Load Amps | 3.3A |
| Full Load Watts | 350 W |
| Guard Type | Intake |
| Height | 23 3/8" |
| Housing Material | Fiberglass |
| Includes Drive Package With Motor | Yes |
| Max. Ambient Temp. | 140°F |
| Max. Depth | 10.938" |
| Max. Exhaust Airflow @ 0.125 In Sp | 3450 CFM |
| Maximum Exhaust Airflow @ 0.000 In Sp | 3740 CFM |
| Method Of Construction | Cast |
|---|---|
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/4 hp |
| Motor Insulation | Class F |
| Motor Rpm | 1520 RPM |
| Motor Speed | 1655 RPM |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Wall |
| Nameplate Voltage | 120V AC |
| Number Of Blades | 6 |
| Number Of Speeds | Variable |
| Phase | 1 |
| Propeller Material | Polypropylene |
| Speed Controllable | Yes |
| Thermal Protection | Automatic |
| Type | Corrosion Resistant, Medium Performance |
| Ventilation Type | Exhaust |
| Width | 23.38" |
| Wire Guard Finish | Powder Coat |
| Height (cm) | 38.1 |
|---|---|
| Length (cm) | 68.58 |
| Width (cm) | 68.58 |
| HS Code | 8414519090 |
|---|---|
| Country Of Origin | NL |
| Weight (kg) | 13.275 |
| Style | Model | Motor Rpm | Cfm @ 0.000-in. Sp | Voltage | Bearing Type | Cfm @ 0.050-in. Sp | Cfm @ 0.125-in. Sp | Height | Max. Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4E25-K-120V | 1725 RPM | 880 CFM | - | Sealed Ball | 840 CFM | 800 CFM | 14 3/4" | 10.938" | $1,252.82 | |
| B | 6E63-K-120V | 1050 RPM | 7250 CFM | - | Sealed Ball | 7040 CFM | 6265 CFM | 30 1/2" | 13.812" | $2,049.75 | |
| B | 6E63-K-240V | 1050 RPM | 7250 CFM | - | Sealed Ball | 7040 CFM | 6265 CFM | 30 1/2" | 13.812" | $1,908.62 | |
| A | 4E30-K-120V | 1683 RPM | 1375 CFM | - | Sealed Ball | 1330 CFM | 1270 CFM | 17.437" | 10 7/8" | $1,064.41 | |
| A | 4E35-K-120V | 1620 RPM | 2160 CFM | - | Sealed Ball | 2100 CFM | 2025 CFM | 19.38" | 10 7/8" | $1,139.65 | |
| A | 4E40-K-120V | 1580 RPM | 2930 CFM | - | Sealed Ball | 2830 CFM | 2710 CFM | 21 3/8" | 10.938" | $1,279.79 | |
| A | 4E50-K-120V | 1668 RPM | 4900 CFM | - | Sealed Ball | 4740 CFM | 4590 CFM | 25 1/2" | 10.938" | $1,568.11 |
