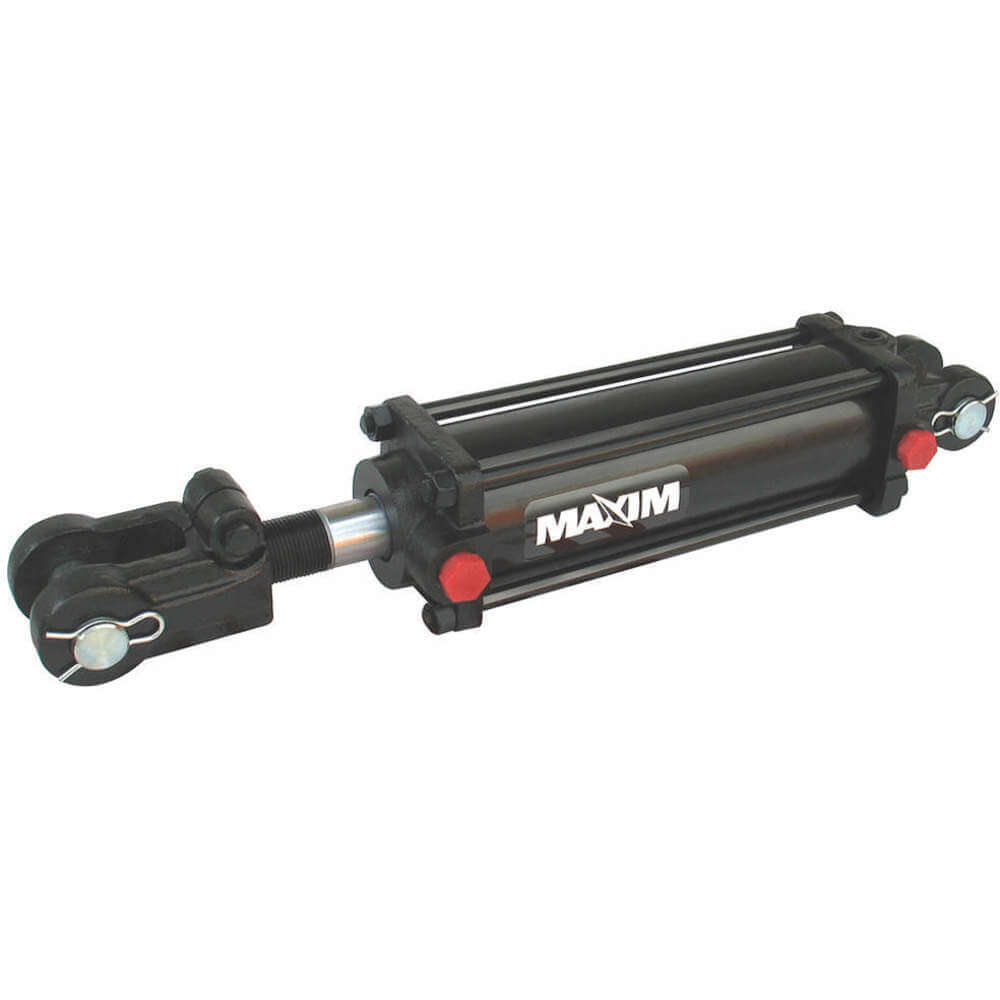

| Item | Hydraulic Cylinder |
|---|---|
| Bore Dia. | 2" |
| Color | Black |
| Column Load | 7850 lbs. |
| Cylinder Style | Tie-Rod |
| Duty Rating | Standard Duty |
| Extended Length | 30 1/4" |
| Finish | Black |
| Includes | Pins And Clips |
| Pin Dia. | 1" |
| Piston Material | Ductile Iron |
| Piston Rod | High Tensile Strength |
| Port Type | 3/8" , NPT |
| Retract | 20 1/4" |
| Retracted Length | 20 1/4" |
|---|---|
| Rod Dia. | 1 1/8" |
| Rod Seal | Polypak |
| Rod Seal Type | Polypak |
| Rod Thread Size | 1 1/8"-12 |
| Single Acting/double Acting | Double Acting |
| Stroke | 10" |
| Stroke Length | 10" |
| Temp. Range | -20°F to +220°F |
| Tie Rods | High Tensile |
| Tube Material | Precision Honed Steel |
| Tubes | Precision Honed Steel |
| Type | Double Acting Tie Rod Style |
| Height (cm) | 12.45 |
|---|---|
| Length (cm) | 64.26 |
| Width (cm) | 12.95 |
| HS Code | 8413919050 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 9.18 |
| Style | Model | Stroke | Rod Dia. | Bore Dia. | Retract | Pin Dia. | Stroke Length | Port Type | Extended Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 218-297 | 4" | 1 1/8" | 2" | 14 1/4" | 1" | 4" | NPT | 18 1/4" | $200.24 | |
| A | 218-298 | 6" | 1 1/8" | 2" | 16 1/4" | 1" | - | - | - | $214.79 | |
| A | 218-299 | 8" | 1 1/8" | 2" | 18 1/4" | 1" | 8" | NPT | 26 1/4" | $236.64 | |
| A | 218-300 | 8" | 1 1/8" | 2" | 20 1/4" | 1" | 8" | NPT | 28 1/4" | $302.16 | |
| A | 218-307 | 12" | 1 1/8" | 2" | 22 1/4" | 1" | 12" | NPT | 34 1/4" | $265.76 | |
| A | 218-308 | 14" | 1 1/4" | 2" | 24 1/4" | 1" | 14" | NPT | 38 1/4" | $276.69 | |
| A | 218-309 | 16" | - | 2" | 26 1/4" | 1" | 16" | NPT | 42 1/4" | $347.75 |
