| Item | Swivel Plate Caster |
|---|---|
| Application | Office Chair And Furniture |
| Bearing Type | Single Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Rubber |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Steel |
| Durometer | 80 Shore A |
| Extended Lead | No |
| Features | Soft Tread For Hard Surfaces |
| Frame Finish | Copper |
| Frame Material | Copper |
| Hole Pattern | D |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 3/8" x 5/8" |
| Load Rating | 75 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/16" |
| Mounting Height | 3 1/8" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 1 3/16" x 2" |
|---|---|
| Mounting Plate Size & Bolt Hole Pattern | 1 3/16" X 2" ( D ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -40°F to +160°F |
| Outside Bolt Hole Spacing | 1 1/8" x 1 3/4" |
| Overall Height | 3.031" |
| Plate Size | 1 3/16" x 2" |
| Plate Thickness | 0.07" |
| Plate Type | D |
| Raceway Type | Single Ball |
| Standards | Bifma/Ansi |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2 1/2" |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Ball |
| Wheel Color | Black |
| Wheel Core Material | Rubber |
| Wheel Diameter | 2 1/2" |
| Wheel Material | Rubber |
| Wheel Width | 5/8" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 80 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 15.49 |
| Width (cm) | 13.97 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2025 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Mounting Height | Frame Finish | Swivel Radius | Wheel/tread Hardness | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

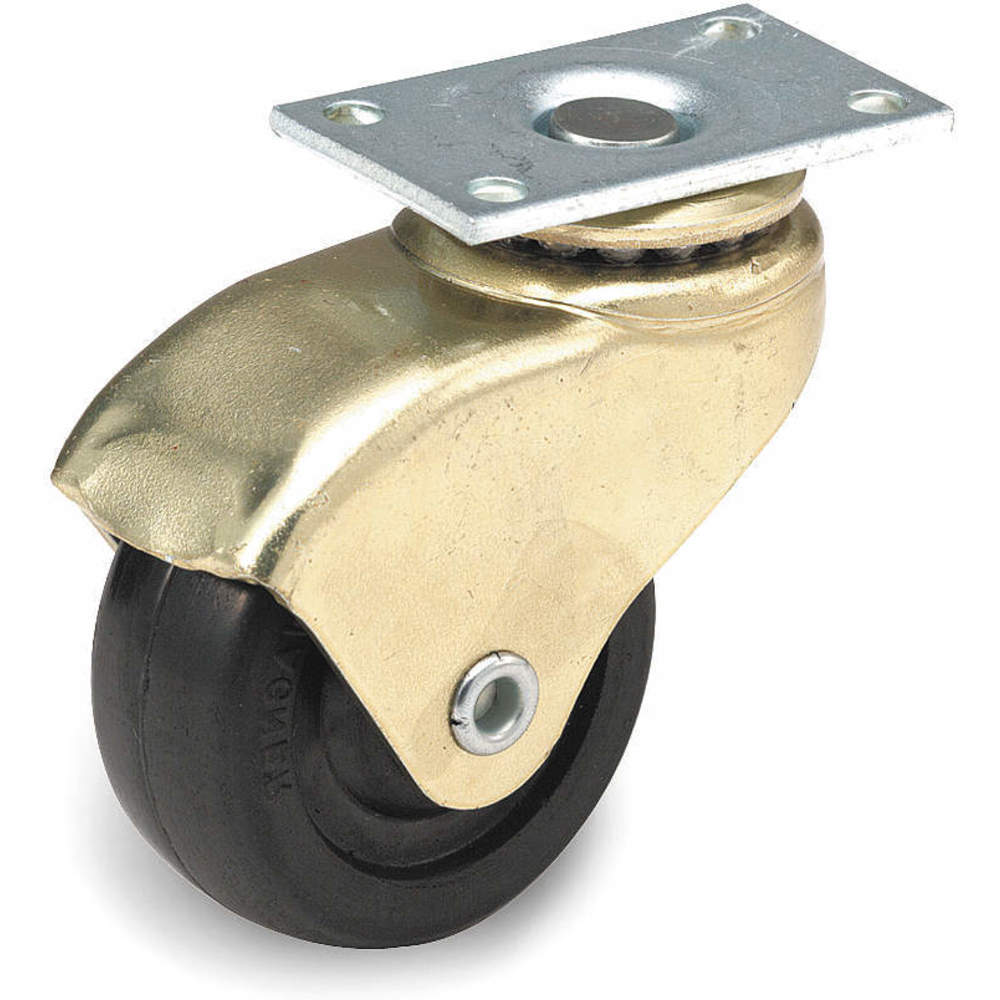

| A | 31890 | 1 3/8" x 5/8" | 1 1/8" x 1 3/4" | 7/8" | Precision Ball | 2 5/8" | Polished Brass | 2" | 80 Shore A | $9.30 | |
| B | 31807 | 13/16" x 1 9/16" | 13/16" x 1 9/16" | 7/8" | Plain | 2 1/2" | High Nickel | 2" | 85 Shore A | $6.34 |
