| Item | Roller Chain Sprocket |
|---|---|
| Bore Diameter | 3/8" to 1 1/2" |
| Bore Type | Bushed |
| Bushing Part Number | H |
| Bushing Size | H |
| Bushing Type | MST H |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 2 3/4" |
| Hub Outside Dia. | 2 3/4" |
| Individually Packaged | No |
|---|---|
| Length Through Bore | 7/8" |
| Length Thru Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 33 |
| Outside Dia. | 6 23/25" , 6.92" |
| Outside Diameter | 6.92" |
| Pitch | 5/8" |
| Pitch Dia. | 6.5751" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 22/25" |
| Storage Dimension Length | 6 23/25" |
| Storage Dimension Width | 6 23/25" |
| Type | Type 3 Single Strand Welded Bushed |
| Height (cm) | 2.24 |
|---|---|
| Length (cm) | 17.58 |
| Width (cm) | 17.58 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.44 |
| Style | Model | Number Of Teeth | Outside Dia. | Pitch Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 50Q112 | 112 | 22.651" | 22.2846" | 1 3/4" | MST Q1 | 50 | 5/8" | Bushed | $600.99 | |
| A | 50P24H | 24 | 5.122" | 4.7883" | 1 5/16" | MST P1 | 50 | - | Bushed | $169.90 | |
| A | 50P25H | 25 | 5.322" | 4.9867" | 1 5/16" | MST P1 | 50 | 5/8" | Bushed | $181.92 | |

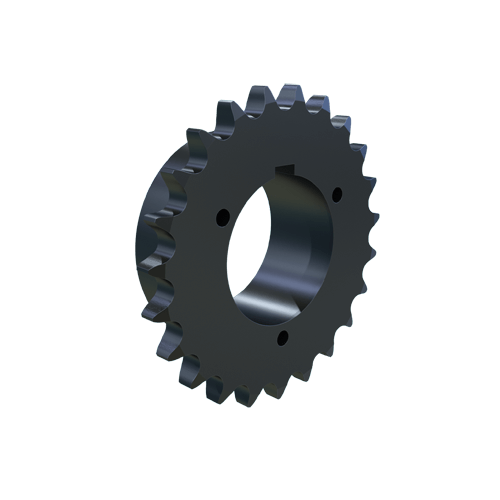

| B | 50Q25H | 25 | 5.322" | 4.9867" | 1 3/4" | MST Q1 | 50 | - | Bushed | $181.92 | |

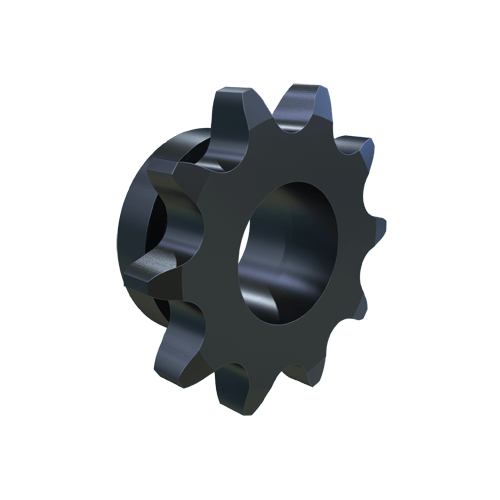

| C | 50Q26H | 26 | 5.522" | - | 2 1/2" | Type Q1 Split Taper | 50 | 5/8" | Bushed | $193.60 | |
| D | 50H30H | 30 | 6.321" | 5.9792" | 7/8" | MST H | 50 | 5/8" | Bushed | $211.25 | |
| D | 50H32H | 32 | 6.721" | 6.3764" | 7/8" | MST H | 50 | 5/8" | Bushed | $276.88 |
