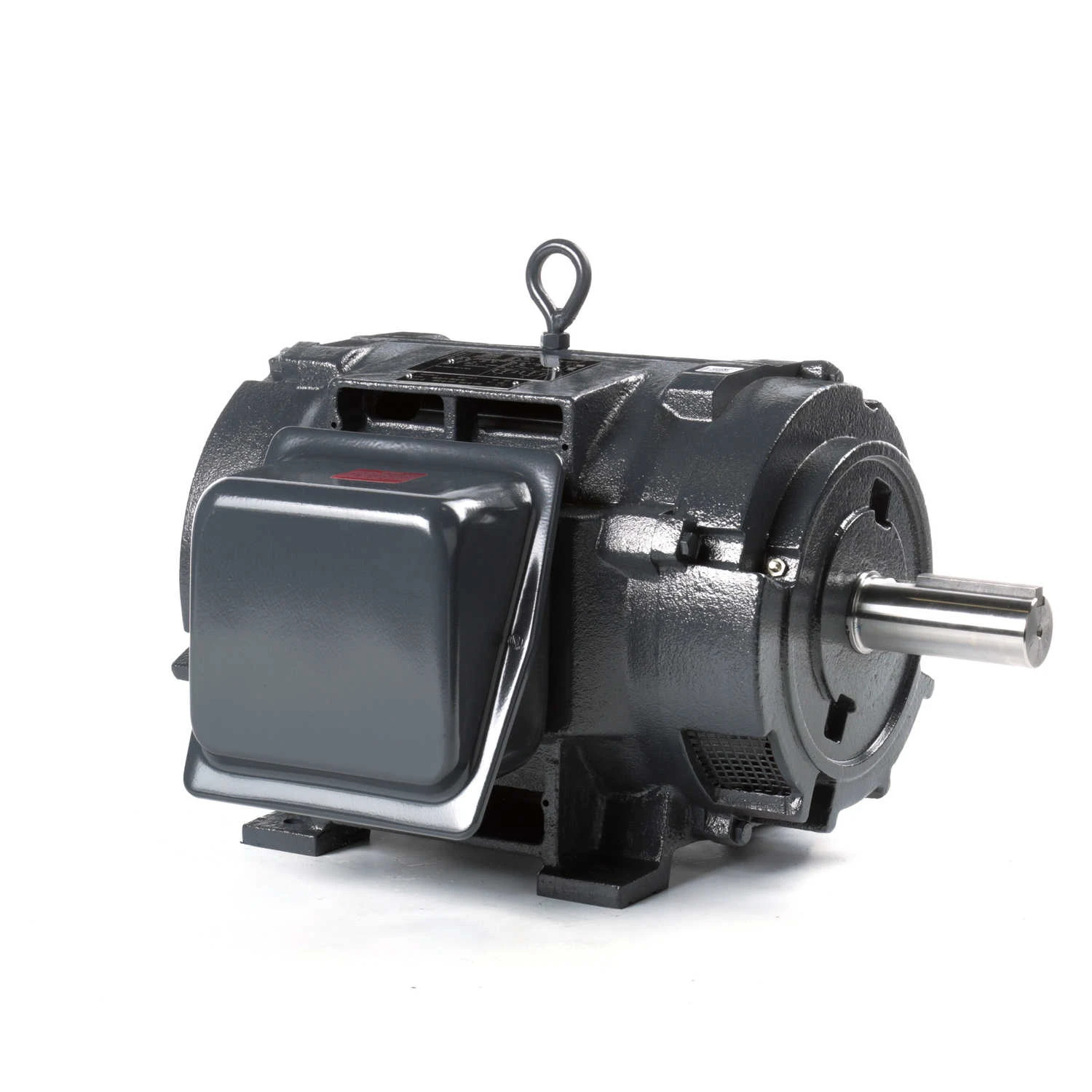

| Item | Definite Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 83/112A |
| Assembly/box Mounting | F1, F2 Capable |
| Code | C |
| Design Code | B |
| Drive End Bearing Size | 311 |
| Drive End Bearing Type | Ball |
| Efficiency | 91% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | ODP |
| Frame | 284T |
| Frame Length | 12 3/4" |
| Frame Material | Cast Iron |
| Frame Size | 284T |
| Frequency | 60 Hz |
| Full Load Amps | 83/112A |
| Hp | 30 hp |
| Insulation Class | Class F |
| Ip Code | IP12 |
| Kva Code | C |
| Kw | 22.4 kW |
| Motor Enclosure Design | Dripproof |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
|---|---|
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | B, C |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 210 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 22.4/30 kW |
| Overall Length | 23.49" |
| Packaging | B |
| Phase | 3 |
| Power | 22.4 kW |
| Power Factor | 85.5 |
| Resistance Main | 0.364 ohms |
| Rotation Type | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 7/8" |
| Shaft Length | 4.63" |
| Shaft Type | T |
| Starting Method | Wye Start Delta Run |
| Thermal Protection | No Protection |
| Type | TDS |
| Voltage | 200V |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 41.61 |
| Width (cm) | 26.67 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 144 |
