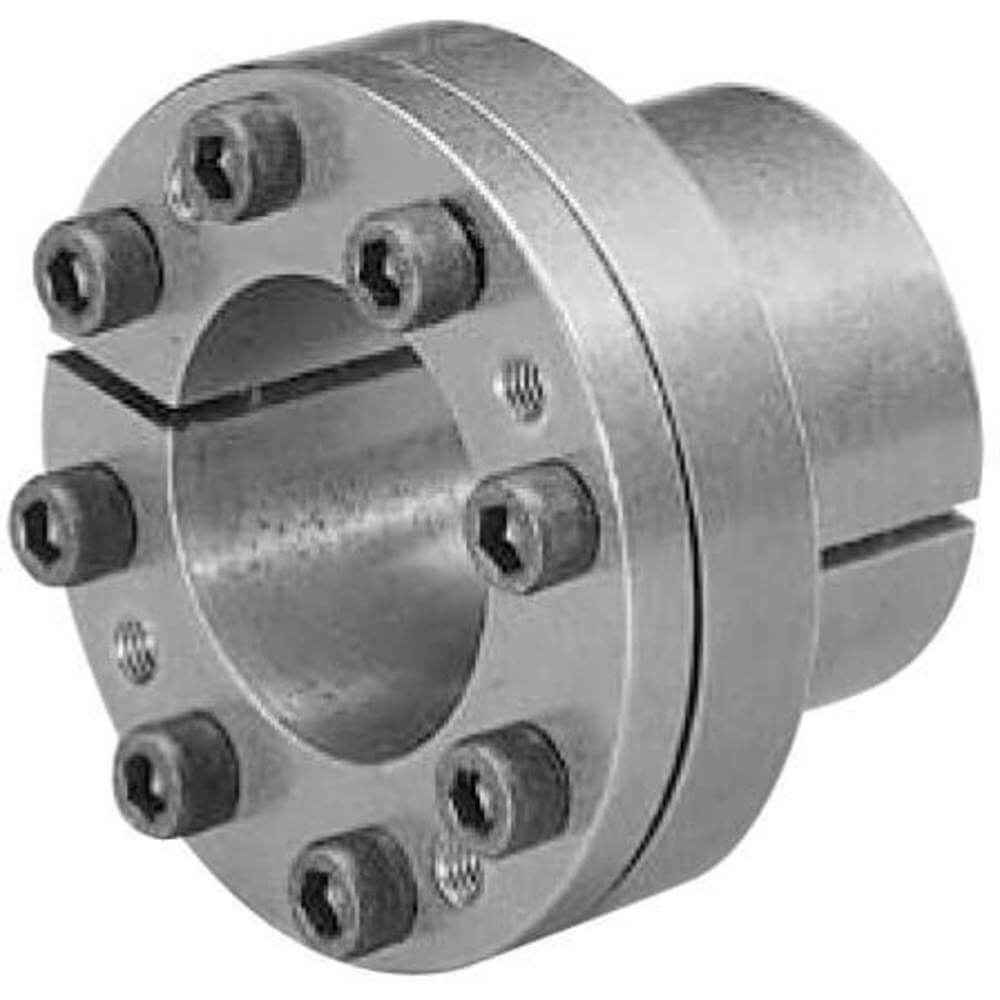

| Item | Keyless Rigid Coupling |
|---|---|
| Application | Internal Shaft Locking Device |
| Collar Material | Silver, Metallic |
| Contact Length (dimension L) | 1.181" |
| Coupling Size | Sld 1900 |
| Diameter To Flange (dimension D1) | 2.717" |
| Dimension D | 1 3/8" |
| Dimension L | 2.205" |
| Locking Screw Size (dimension T) | M6 |
| Max. Transmissible Axial Force | 12230 lbf. |
| Max. Transmissible Torque | 637 lbs.-ft. |
| No. Of Locking Screws | 8 |
| Pressure On The Hub | 9677 psi |
| Pressure On The Shaft | 8679 psi |
|---|---|
| Screw Material | Steel |
| Screw Tightening Torque | 12 lbs.-ft. |
| Screw Type | Socket Head Cap Screw |
| Shaft Locking Device Outside Diameter (dimension D) | 1.85" |
| Shaft Size | 1 3/8" |
| Style | Self Centering |
| Thrust Rings Width At Relaxed State (dimension B) | 1.969" |
| Tolerance Of Hub Bore (t2) | 0" to 0.0015" |
| Tolerance Of Shaft (t1) | -0.0016" to 0" |
| Type | Internal |
| Volume | 7.54661 cu. in. |
| Style | Model | Type | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | 69790498477 | Internal | Self Centering | $178.08 |
