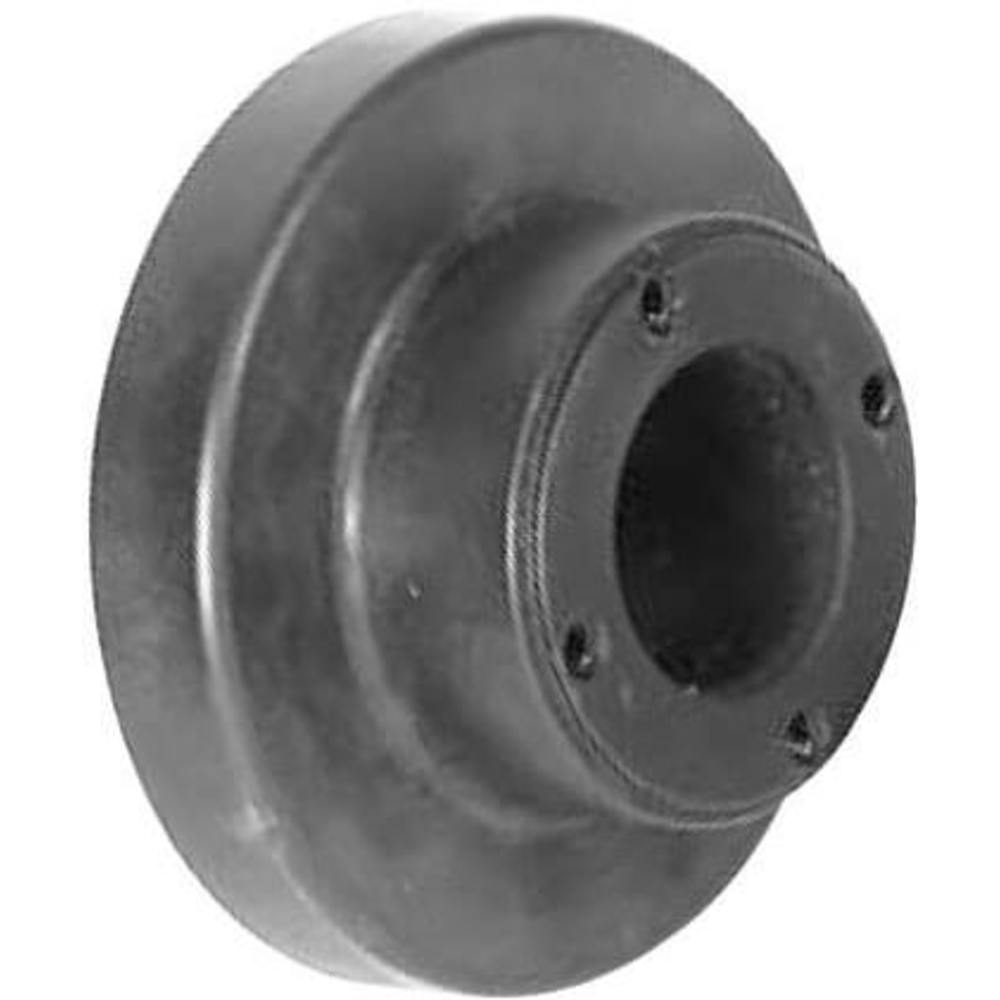

| Item | Flange |
|---|---|
| Bore Type | Spacer Flange/No Bore |
| Color | Gray |
| Coupling Type | S Flex |
| Dimension Fl | 0.59" |
| Dimension Hd | 4/5" |
| Dimension L | 1.69" |
| Dimension P | 0.8" |
| Hp Rating @ 100 Rpm | 2/5 hp |
| Hp Rating @ 1200 Rpm | 4 3/5 hp |
| Hp Rating @ 1800 Rpm | 6 9/10 hp |
|---|---|
| Hp Rating @ 3600 Rpm | 13 7/10 hp |
| Keyway Size | No Keyway |
| Material | Cast Iron |
| Max. Speed | 7600 RPM |
| Nominal Torque (with Epdm Sleeve) | 240 lbs.-in. |
| Outside Dia. | 3 1/4" |
| Torsional Stiffness | 916 lbs.-in./rad |
| Type | Coupling Flange |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 5.24 |
| Width (cm) | 5.24 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.54 |
| Style | Model | Hp Rating @ 100 Rpm | Outside Dia. | Dimension P | Max. Speed | Dimension L | Dimension Fl | Hp Rating @ 1200 Rpm | Hp Rating @ 1800 Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 68514436560 | 4 3/5 hp | 7 1/2" | 2.13" | 3600 RPM | 2 1/4" | 1.22" | 55 hp | 82 hp | $244.29 | |
| A | 68514436562 | 4 3/5 hp | 7 1/2" | 0.34" | 3600 RPM | 2.38" | 1.22" | 55 hp | 82 hp | $250.55 | |
| A | 68514436570 | 7 1/5 hp | 8 5/8" | 2.97" | 3600 RPM | 1 1/2" | 1 1/2" | 86 hp | 129 hp | $384.75 | |
| A | 68514436572 | 7 1/5 hp | 8 5/8" | 0.03" | 3600 RPM | 1 14/25" | 1 1/2" | 86 hp | 129 hp | $427.14 | |
| A | 68514436526 | 7/10 hp | 4" | 0.59" | 6000 RPM | 1.63" | 18/25" | 8 3/5 hp | 12 9/10 hp | $71.60 | |
| A | 68514436530 | 7/10 hp | 4" | 1.34" | 6000 RPM | 2.38" | 18/25" | 8 3/5 hp | 12 9/10 hp | $112.73 | |
| A | 68514436534 | 1 1/5 hp | 4 5/8" | 0.91" | 5250 RPM | 2.06" | 0.78" | 14 hp | 21 hp | $112.73 |
