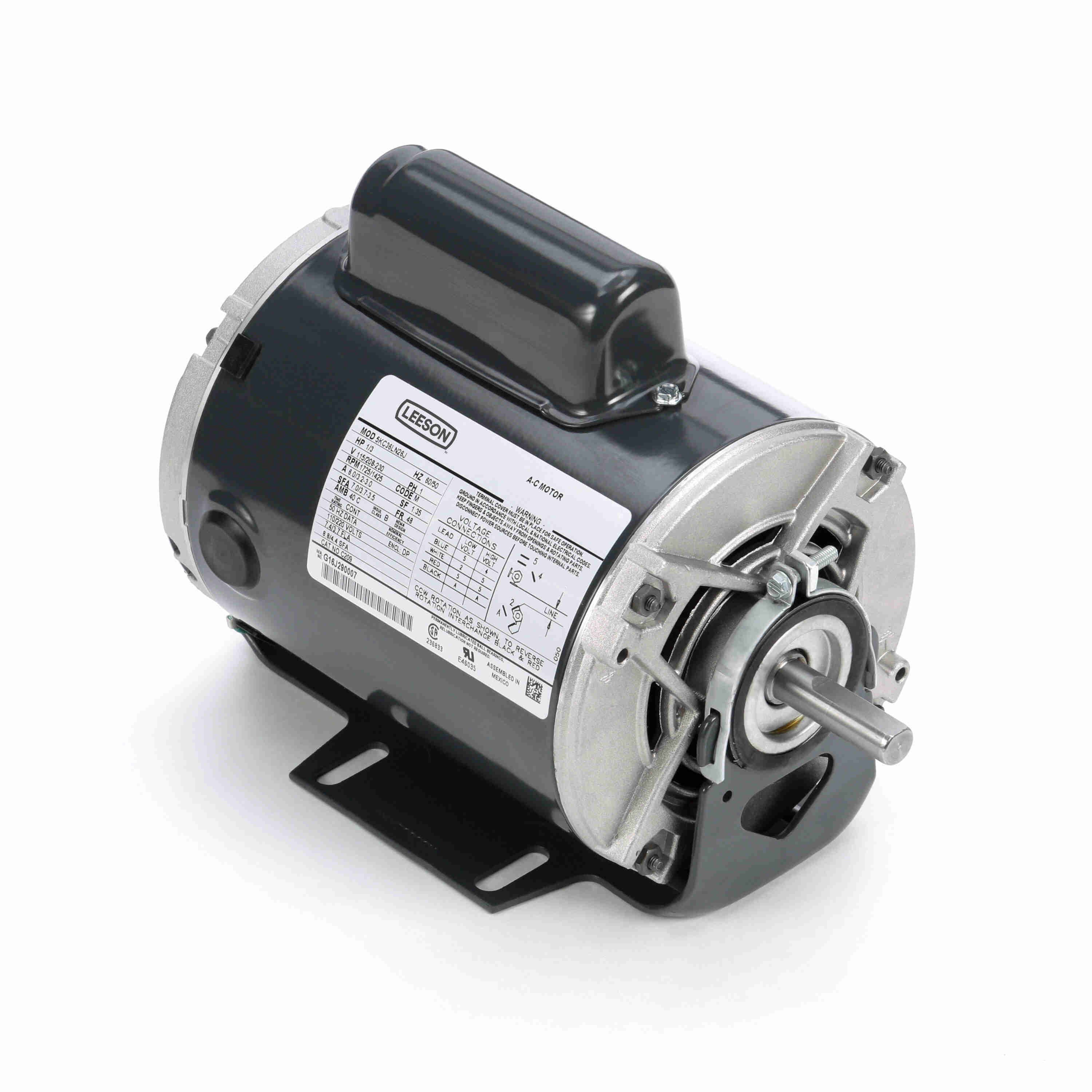

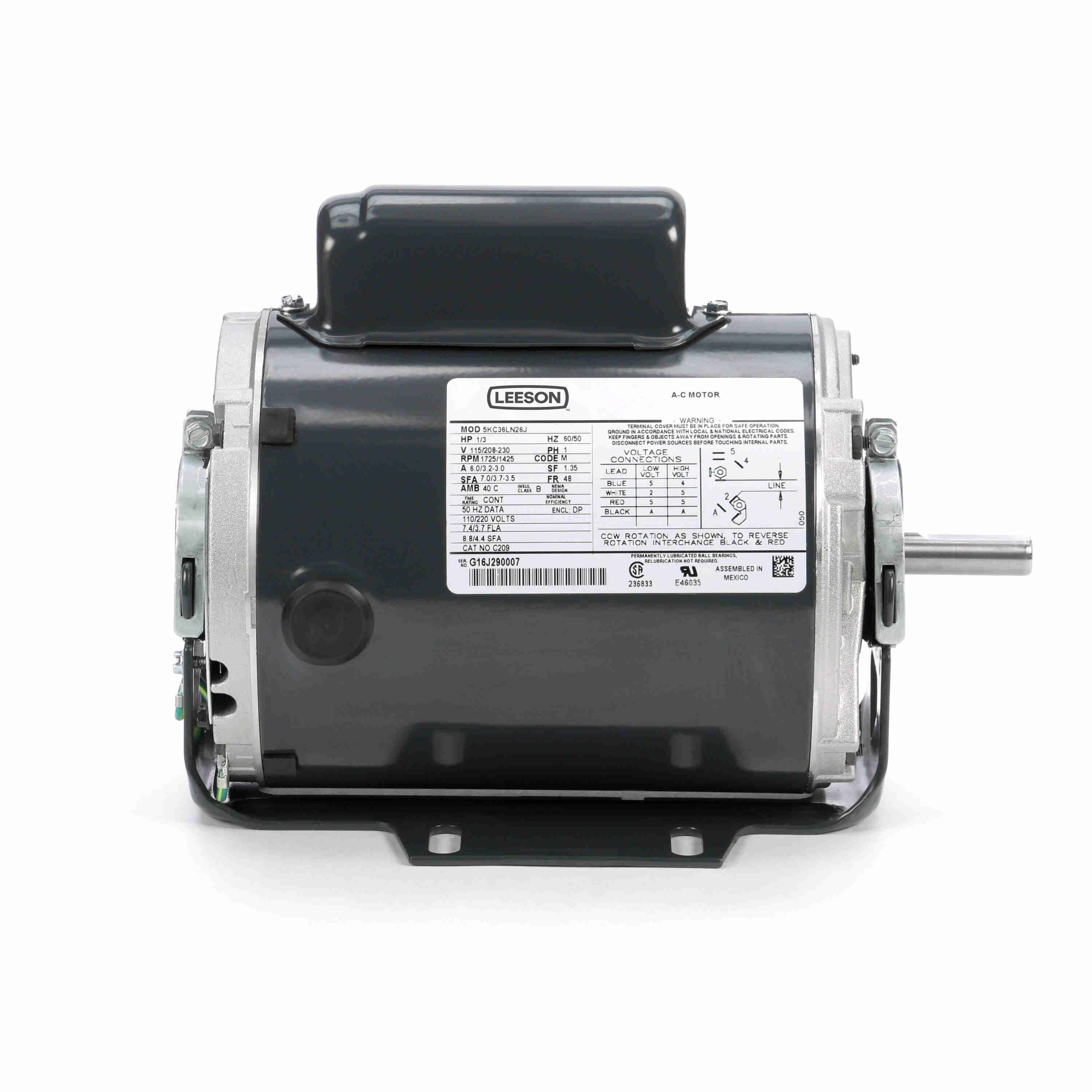

| Item | HVAC Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 59.5% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6/3.2-3A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 10" |
| Length Less Shaft | 8 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
|---|---|
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 59.5% |
| Number Of Speeds | 1 |
| Overall Length | 10" |
| Phase | 1 |
| Rpm | 1725/1425 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | Flat |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 1 yr. |
| Motor Thermal Protection | None |
| Height (cm) | 19.05 |
|---|---|
| Length (cm) | 32.08 |
| Width (cm) | 17.63 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 8.1 |
| Style | Model | Voltage | Hp | Motor Mounting Type | Frame | Shaft Length | Max. Ambient Temp. | Rpm Range | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5KC48UN6052 | 115/230V AC | 1/2 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | $1,081.15 | |
| B | 5KC36LN26X | 115/208-230V AC | 1/3 hp | - | 48 | 1 1/2" | 104°F | 1701-1800 RPM | - | $649.41 | |
| C | 5KC46JN0002X | 115/208-230V AC | 3/4 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1701-1800 RPM | Open Dripproof | $672.79 | |
| D | 5KC49PN6051 | 115/230V AC | 1/3 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | $695.91 | |
| E | 5KC49PN6051X | 115/230V AC | 1/3 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1101-1200 RPM | Open Dripproof | $846.12 | |
| F | 5KC35JN7X | 115/230V AC | 1/4 hp | Cradle Base | 48 | 1 1/2" | 104°F | 1701-1800 RPM | Open Dripproof | $400.22 | |
| G | 5KC36LN1X | 115/208-230V AC | 1/3 hp | Cradle Base | 56 | 1 7/8" | 104°F | 1701-1800 RPM | Open Dripproof | $403.42 |
