| Item | Vector Motor |
|---|---|
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Color | Black |
| Conduit Box Position | F1, F2 |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft Dimension | 5/8" x 1 3/4" |
| Finish | Black |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Full Load Torque | 6 lbs.-ft. |
| Hp | 2 hp |
| Insulation Class | Class H |
| Insulation Feature | CR200 Magnet Wire |
| Length Less Shaft | 12 13/16" |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 5400 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
|---|---|
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Face, Base |
| Nameplate Rpm | 1750 RPM |
| Nema Design | NEMA A |
| Number Of Speeds | 1 |
| Overall Length | 14 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed Range | 1000:1 |
| Speed Ratio | 1000:1 |
| Standards | Ce, Ul Recognized |
| Thermal Protection | None |
| Torque | 6 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 57.15 |
| Width (cm) | 42.7 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 33.3 |
| Style | Model | Hp | Nameplate Rpm | Motor Mounting Type | Frame | Full Load Amps | Nominal Efficiency | Efficiency Group | Conduit Box Position | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

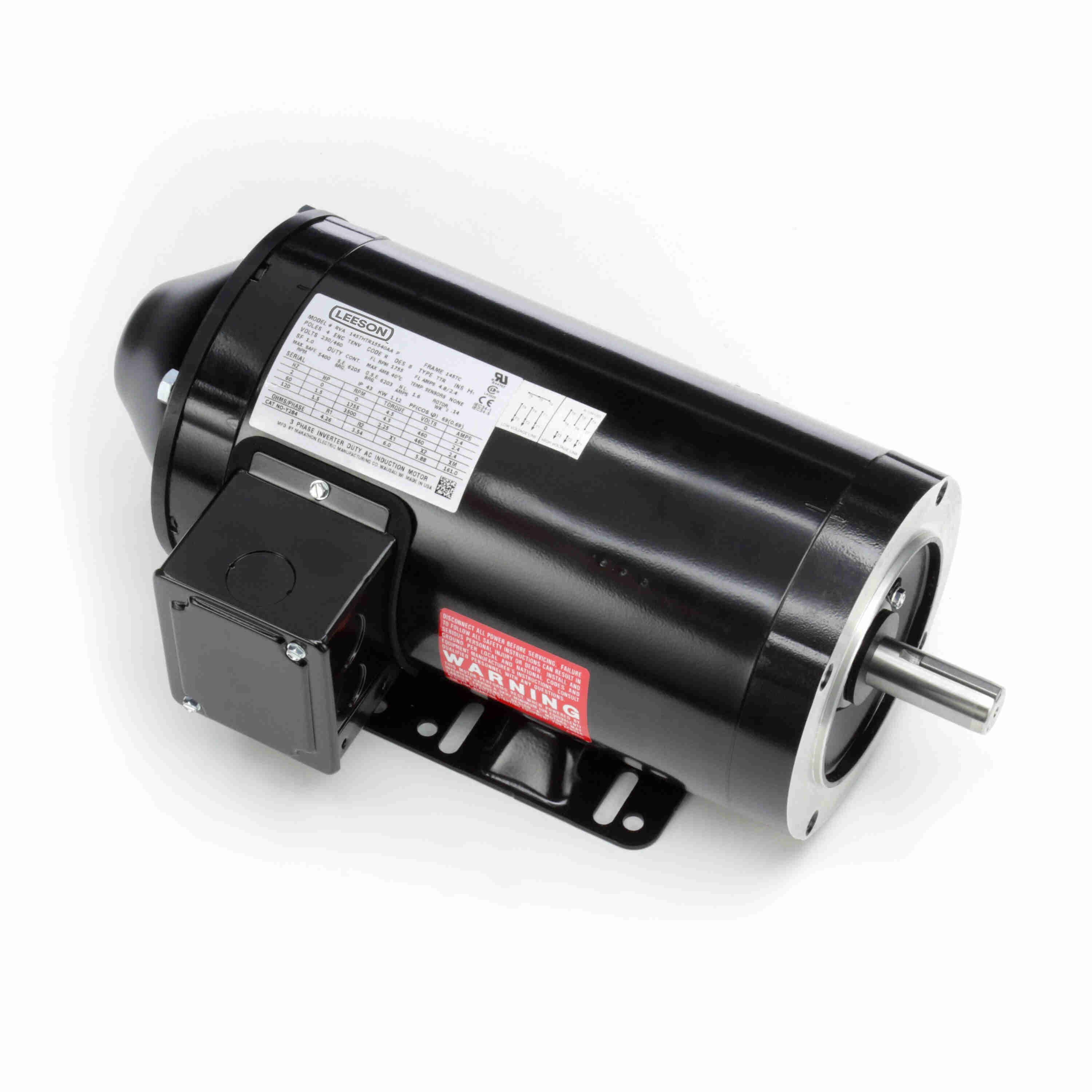

| A | 145THTR15540 | 1 1/2 hp | 1755 RPM | Rigid Base | 145TC | 4.8/2.4A | 85.5% | Standard | F1 | $2,555.05 | |
| B | 056H17T15528 | 3/4 hp | 1725 RPM | Rigid Base | 56C | 2.4/1.2A | 82.5% | - | F1 | $1,734.70 | |

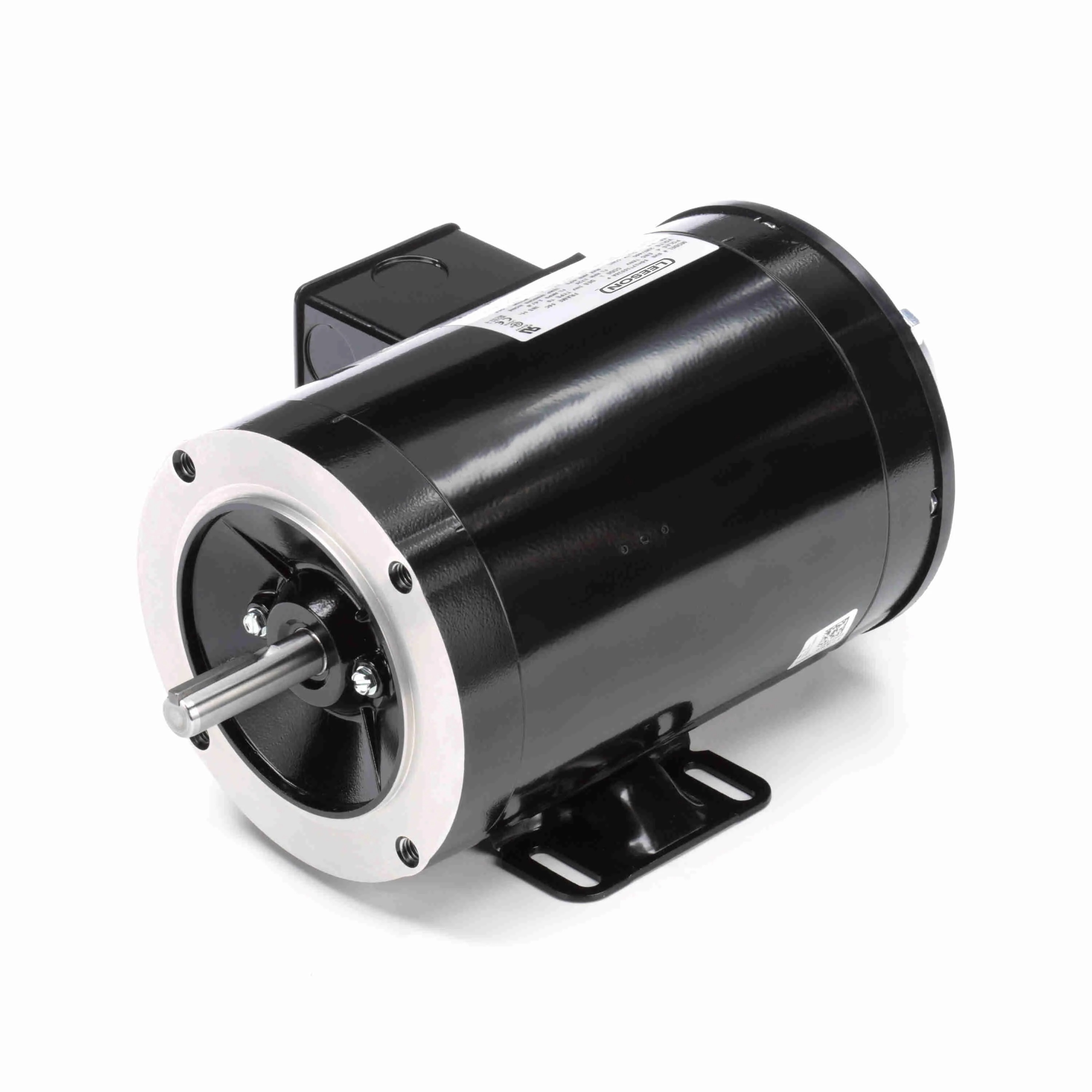

| C | 056H17T15526 | 1/2 hp | 1725 RPM | Rigid Base | 56C | 1.6/0.8A | 80% | - | F1 | $1,643.09 | |

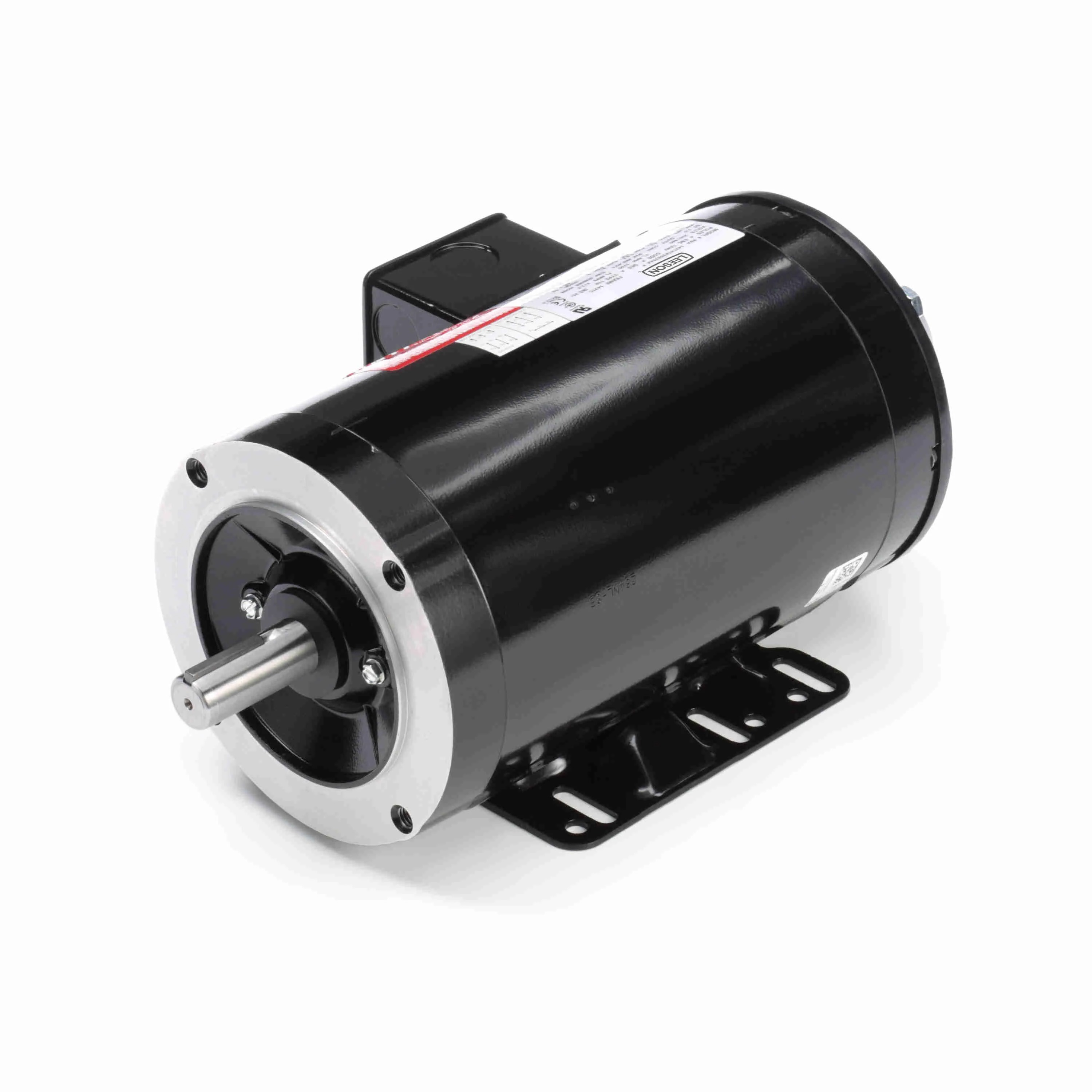

| D | 143THTR15535 | 1 hp | 1800 RPM | Cradle | 143TC | 3/1.5A | - | - | F1 Only | $1,757.71 | |

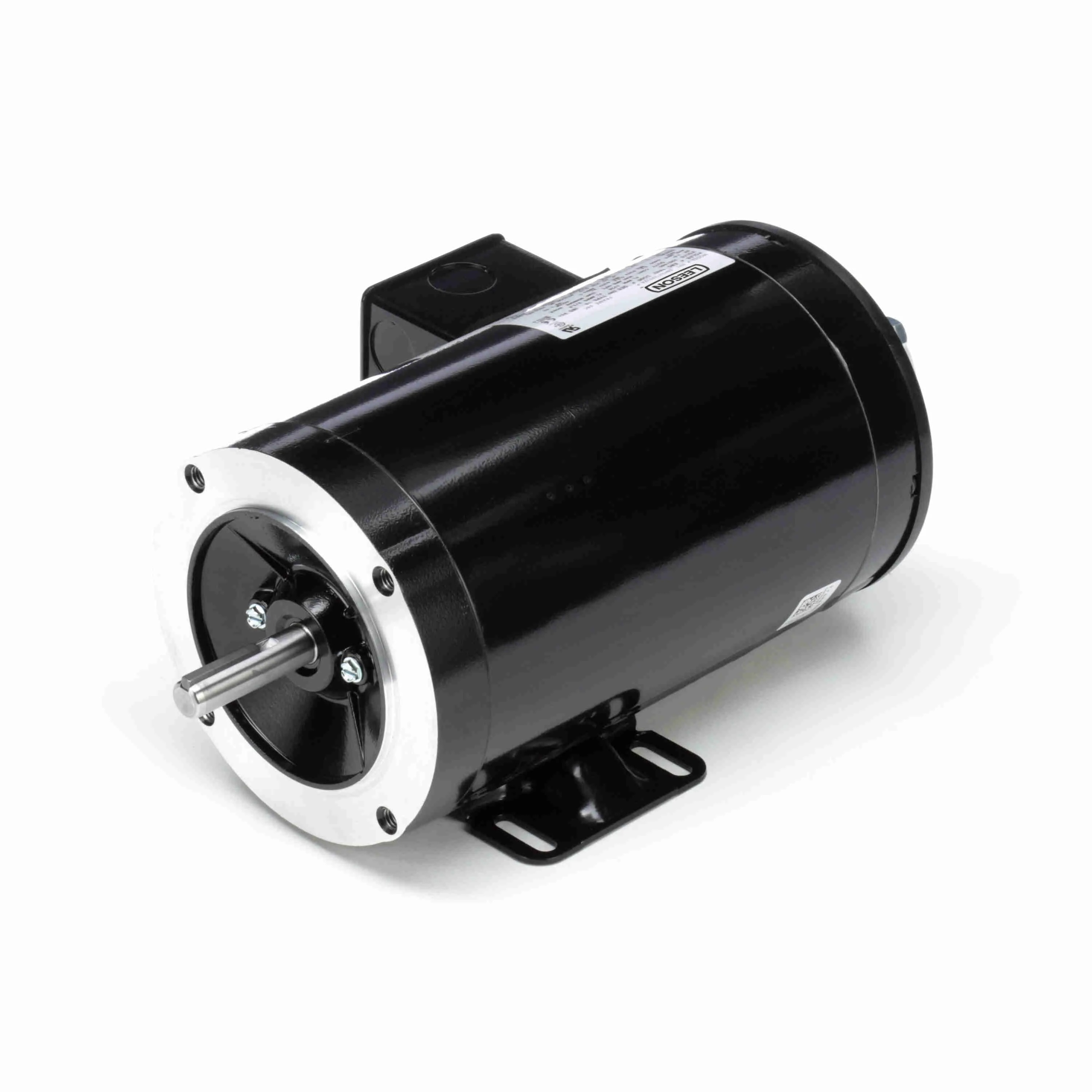

| E | 056H17T15527 | 1 hp | 1725 RPM | Rigid Base | 56C | 3/1.5A | 84% | - | F1 | $1,836.67 |
