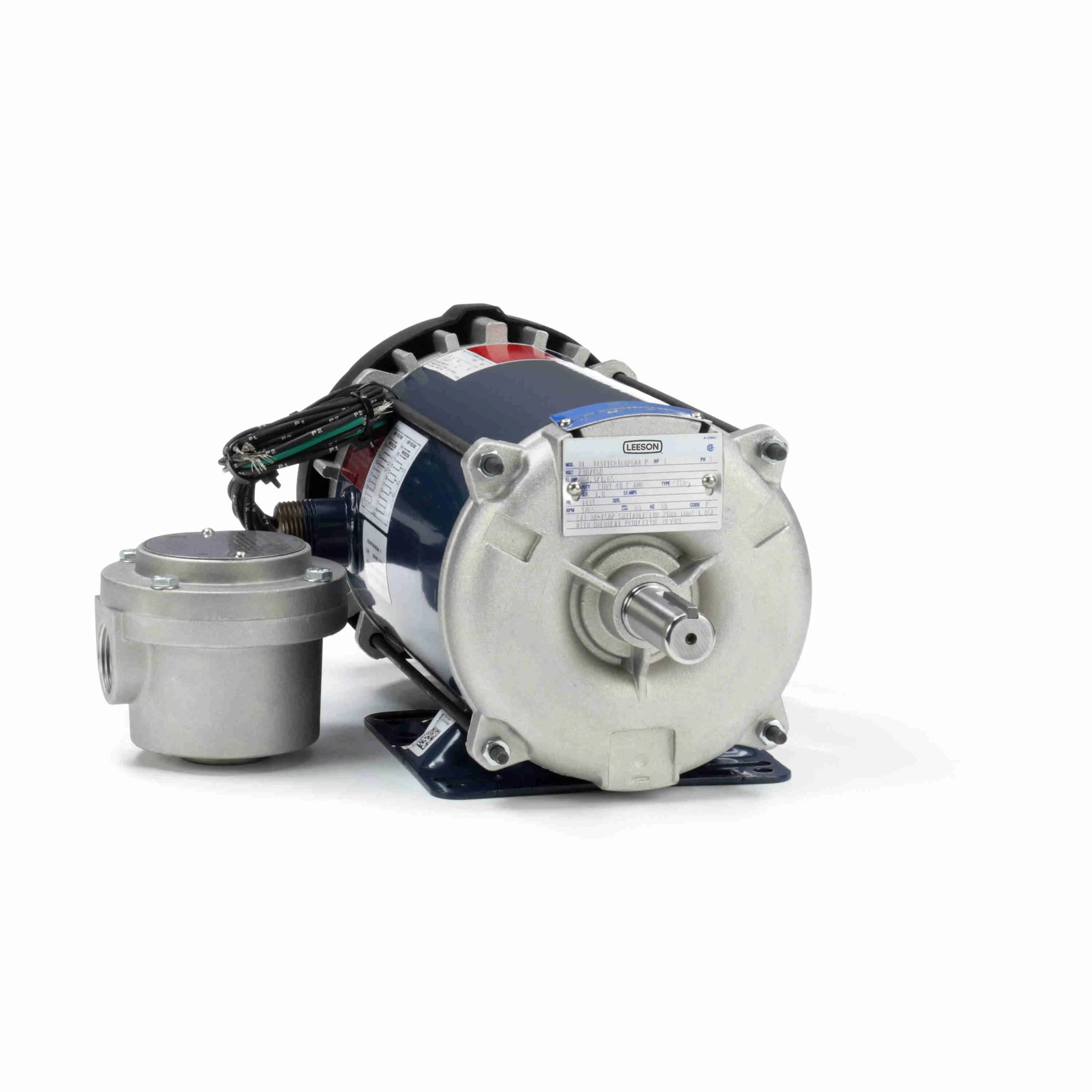

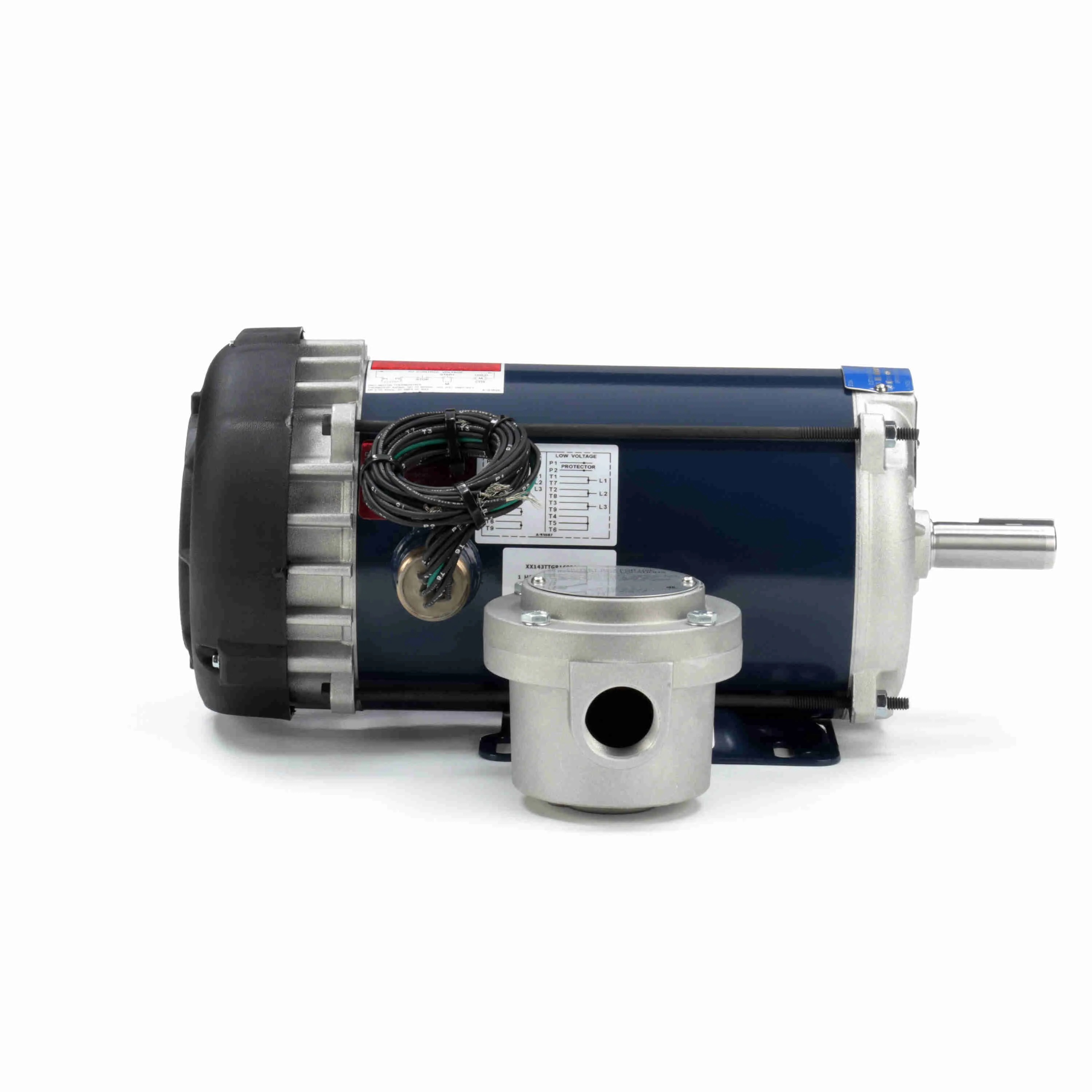

| Item | Hazardous Location Motor |
|---|---|
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Frame | 143T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.3/1.7A |
| Hazardous Location Class | 1 C, D / 2 E, F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 13 11/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Nameplate Rpm | 1765 RPM |
| Nema Design | B |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 5/16" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 50.5 |
| Width (cm) | 26.04 |
| HS Code | 8501516040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 22.05 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Service Factor | Nema Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 145TTGR16040 | 230/460V AC | 2 hp | 1760 RPM | 1 C, D / 2 E, F, G | 145T | Thermostat | 1.15 | B | $1,621.31 | |
| B | 056T17G5313 | 208-230/460V AC | 3/4 hp | 1725 RPM | 1 C, D / 2 F, G | 56 | Automatic | 1 | No Design Code | $1,100.81 | |
| C | 056T17E5308 | 208-230/460V AC | 1/4 hp | 1725 RPM | 1 C, D / 2 F, G | 56 | Automatic | 1 | B | $958.44 | |
| D | 056T17E5309 | 208-230/460V AC | 1/3 hp | 1725 RPM | 1 C, D / 2 F, G | 56 | Automatic | 1 | B | $992.94 | |
| E | 056T17G5321 | 575V AC | 1/2 hp | 1725 RPM | 1 C, D / 2 F, G | 56 | Automatic | 1 | No Design Code | $1,112.50 | |
| F | 056T17E5315 | 575V AC | 1/3 hp | 1800 RPM | Class 1 C, D, 2 F, G | 56 | Automatic | 1 | No Design Code | $1,017.69 | |
| G | 056T17G5312 | 208-230/460V AC | 1/2 hp | 1725 RPM | 1 C, D / 2 F, G | 56 | Automatic | 1 | No Design Code | $1,078.17 |
