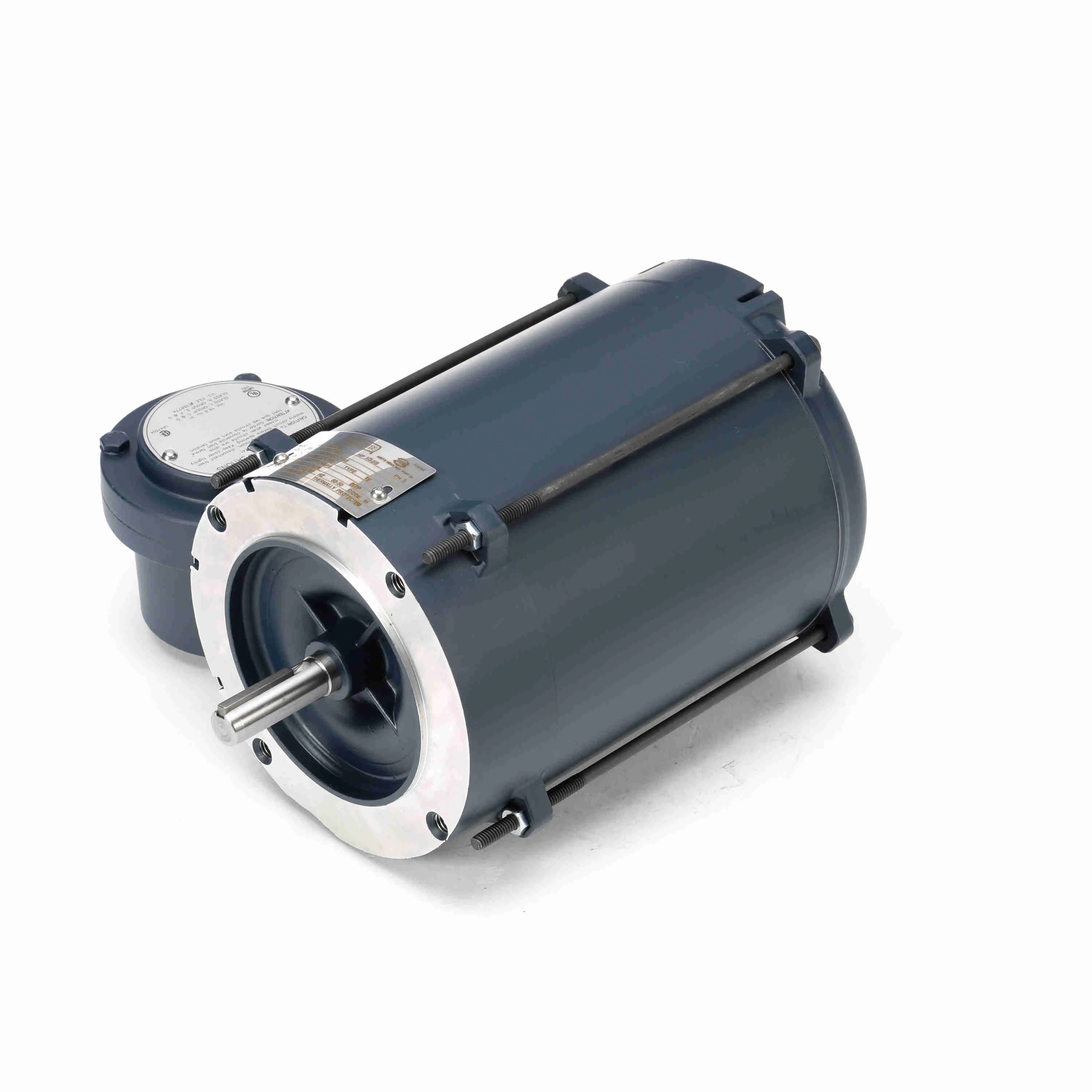

| Item | Explosion Proof Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 1.1/0.65A |
| Code | M |
| Conduit Box Position | F1 |
| Design | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPNV |
| Frame | 56C |
| Frame Length | 6.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.1/0.65A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 8 3/25" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | M |
| Kw | 0.25 kW |
|---|---|
| Length | 16 3/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Round |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.246 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 73.5 |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TE |
| Voltage | 208-230/460V |
| Width | 10.25" |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 40.94 |
| Width (cm) | 26.04 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 11.7 |
| Style | Model | Voltage | Hp | Frame | Nameplate Rpm | Service Factor | Design | Thermal Protection | Full Load Amps | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 111933.00 | 208-230/460V | 1/2 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 1.6/0.8A | $1,034.96 | |
| B | 111936.00 | 208-230/460V | 3/4 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 3-3.2/1.6A | $1,509.65 | |
| C | 116187.00 | 208-230/460V AC | 1/2 hp, 1/3 hp | 56J | 3600/3000 RPM | 1 | B | Automatic | 1.6/0.8A | - | RFQ
|
| D | 117852.00 | 208-230/460V | 1/2 hp | 56C | 1800/1500 RPM | 1 | B | Thermostat | 1.8-1.6/0.8A | $1,115.07 | |
| E | 117853.00 | 208-230/460V | 3/4 hp | 56C | 1800/1500 RPM | 1 | B | Thermostat | 2.9-3/1.5A | $1,133.61 | |
| F | 119422.00 | 230/460V | 1 hp | 56C | 3600/3000 RPM | 1 | B | Automatic | 3/1.5A | $1,978.65 | |
| G | 119423.00 | 230/460V | 1 hp | 56C | 1800/1500 RPM | 1 | B | Thermostat | 3.3/1.65A | $2,149.67 |
