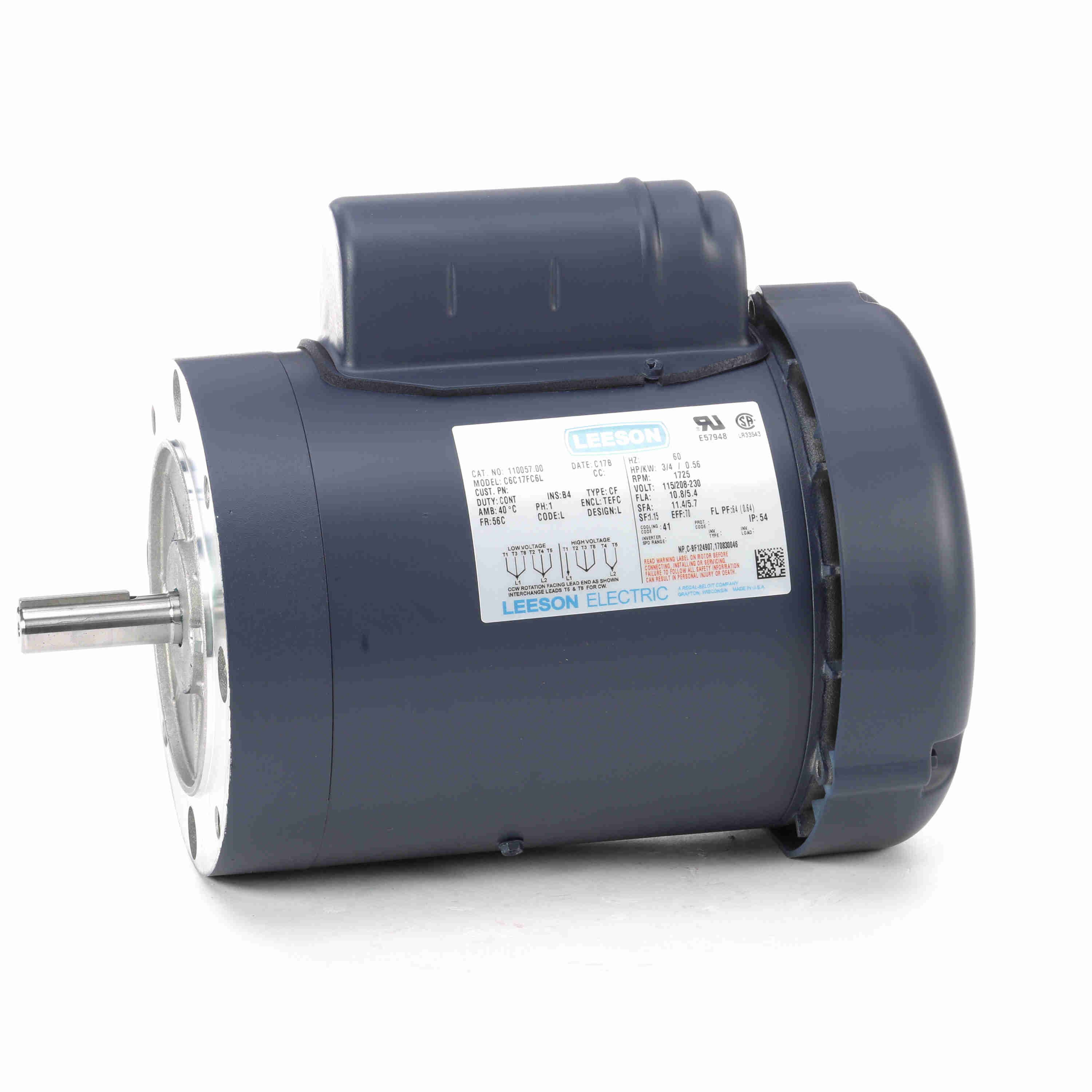

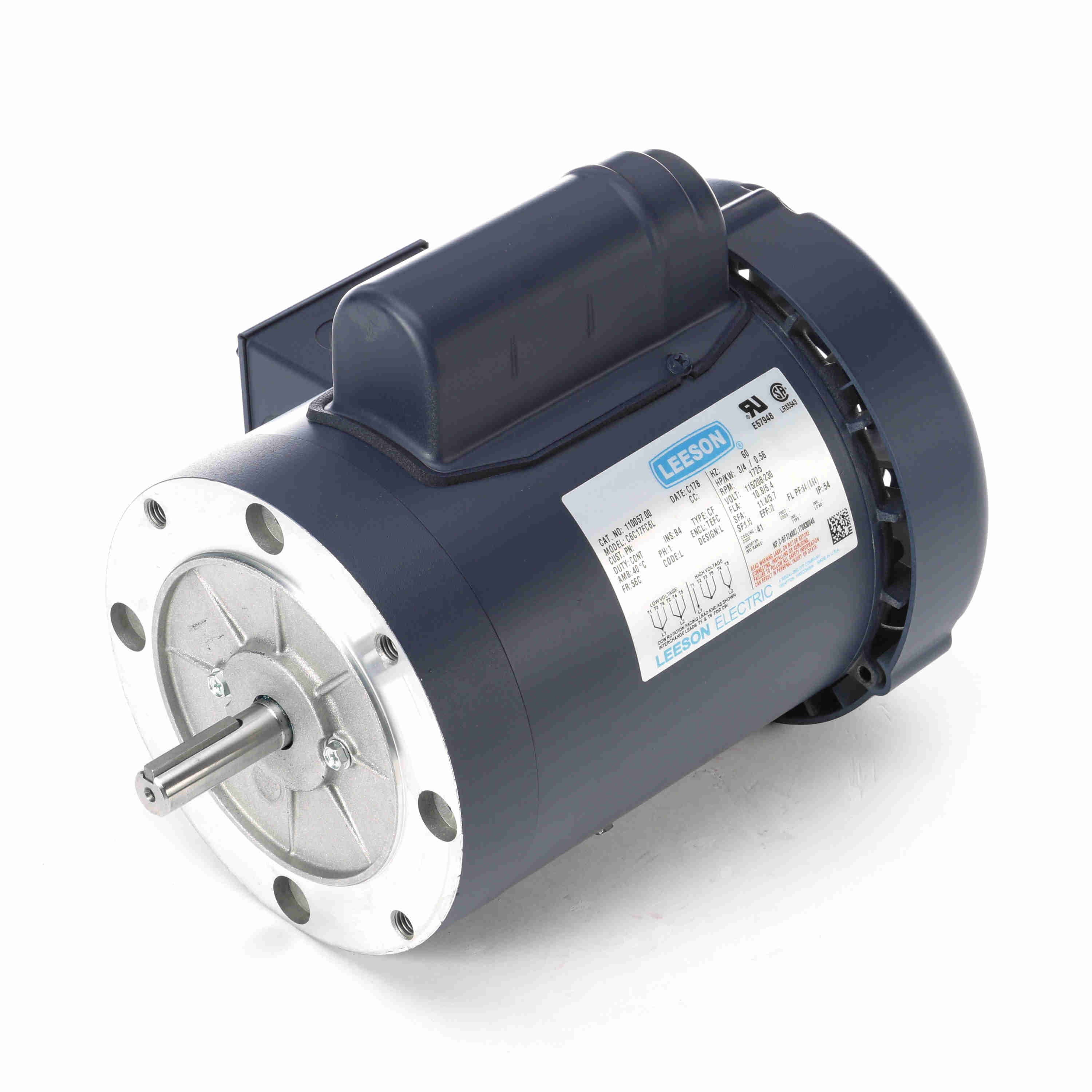

| Item | Single Phase Motor |
|---|---|
| Ambient Temp. | 104°F |
| Amps | 10.8/5.4A |
| Bearing Type | Ball |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 10.8/5.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1725 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1725 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56 kW |
| Overall Length | 11 1/2" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 64 |
| Removable Base | Permanently Lubricated Bearings |
| Resistance Main | 2.6 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
| Motor Thermal Protection | None |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 12.6 |
| Style | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Nameplate Rpm | Motor Type | Frame | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

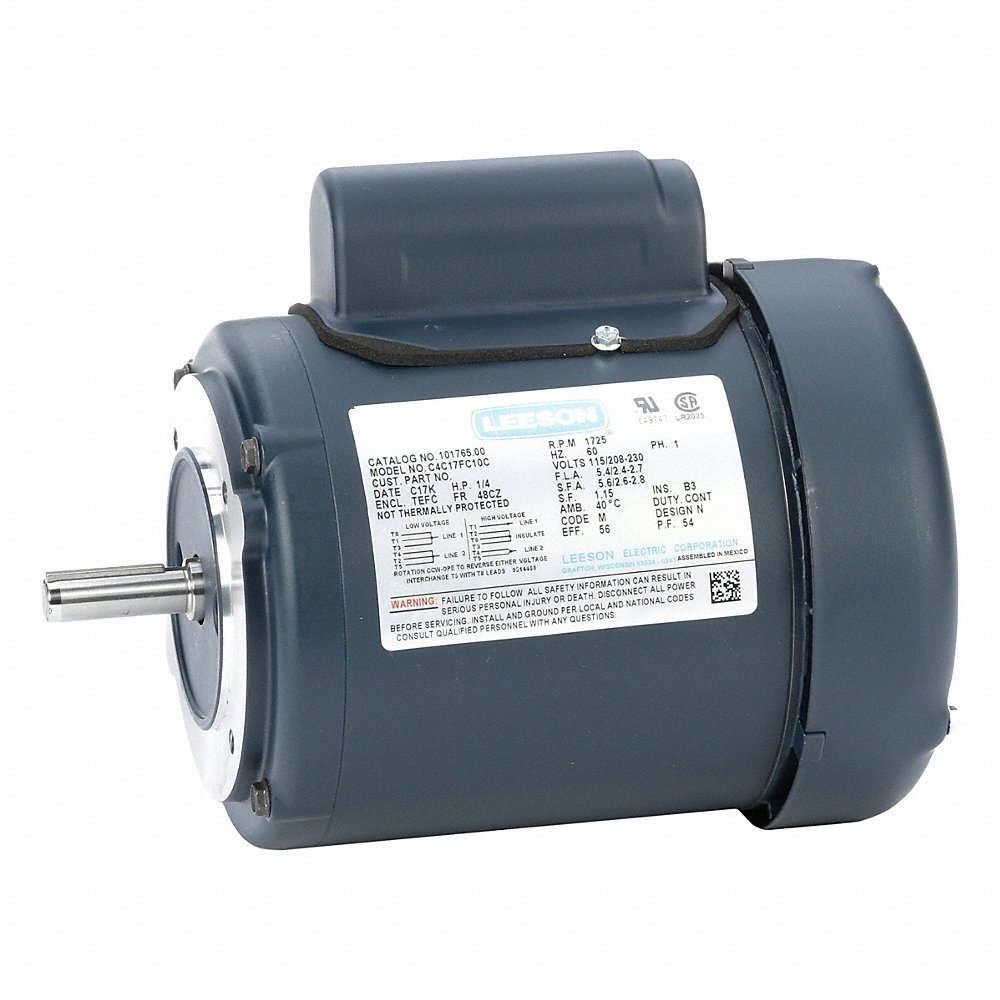

| A | 101765.00 | 115/208-230V | 1/4 hp | 5.4/2.4-2.7A | C Face, Footless | 1.15 | 1800 RPM | Capacitor Start | 48CZ | $685.31 | |
| B | 101766.00 | 115/208-230V | 33/100 hp | 6.6/2.9-3.3A | Face | 1.15 | 1725 RPM | Capacitor Start | S56C | $420.86 | |

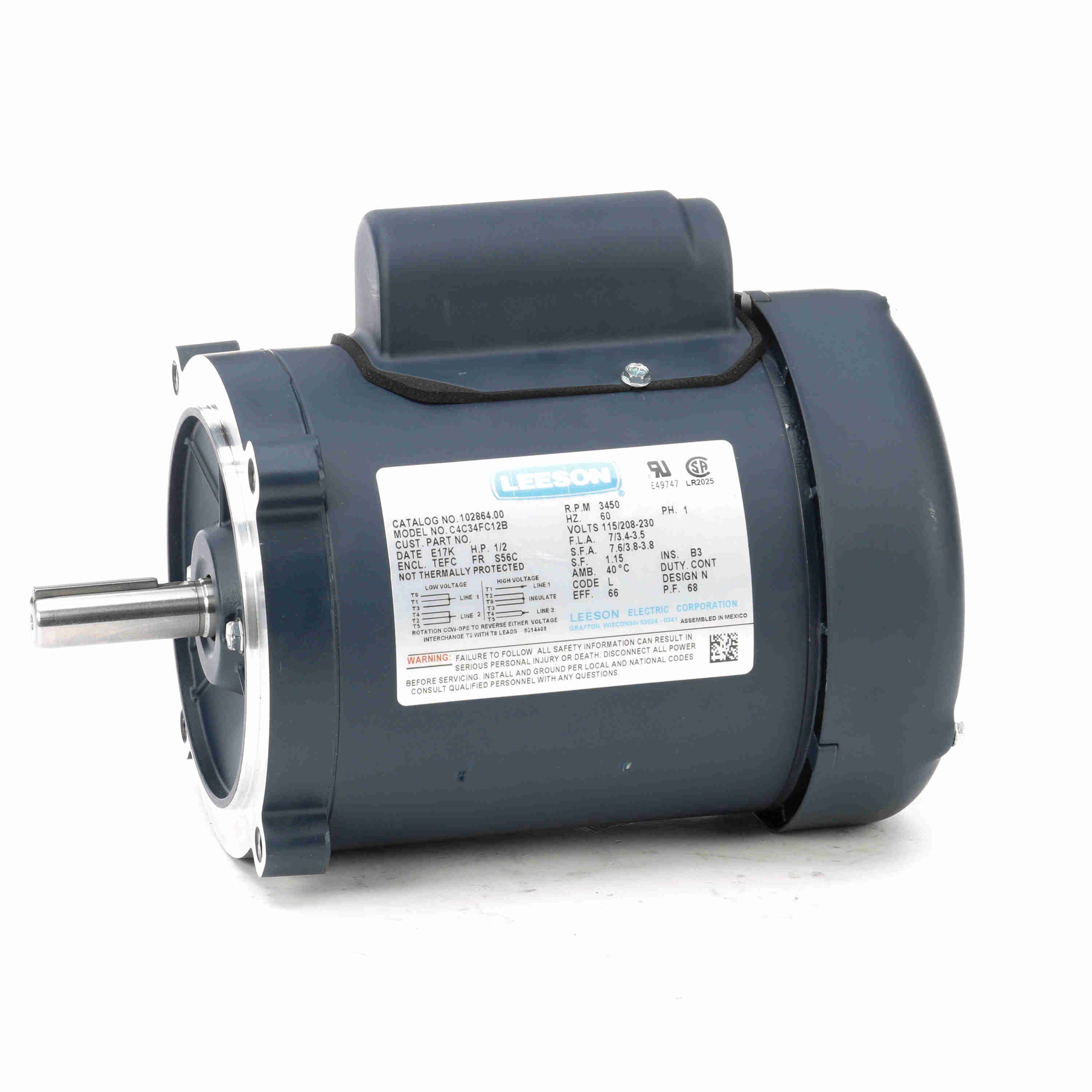

| C | 102864.00 | 115/208-230V | 1/2 hp | 7/3.4-3.5A | Face | 1.15 | 3450 RPM | Capacitor Start | S56C | $421.30 | |

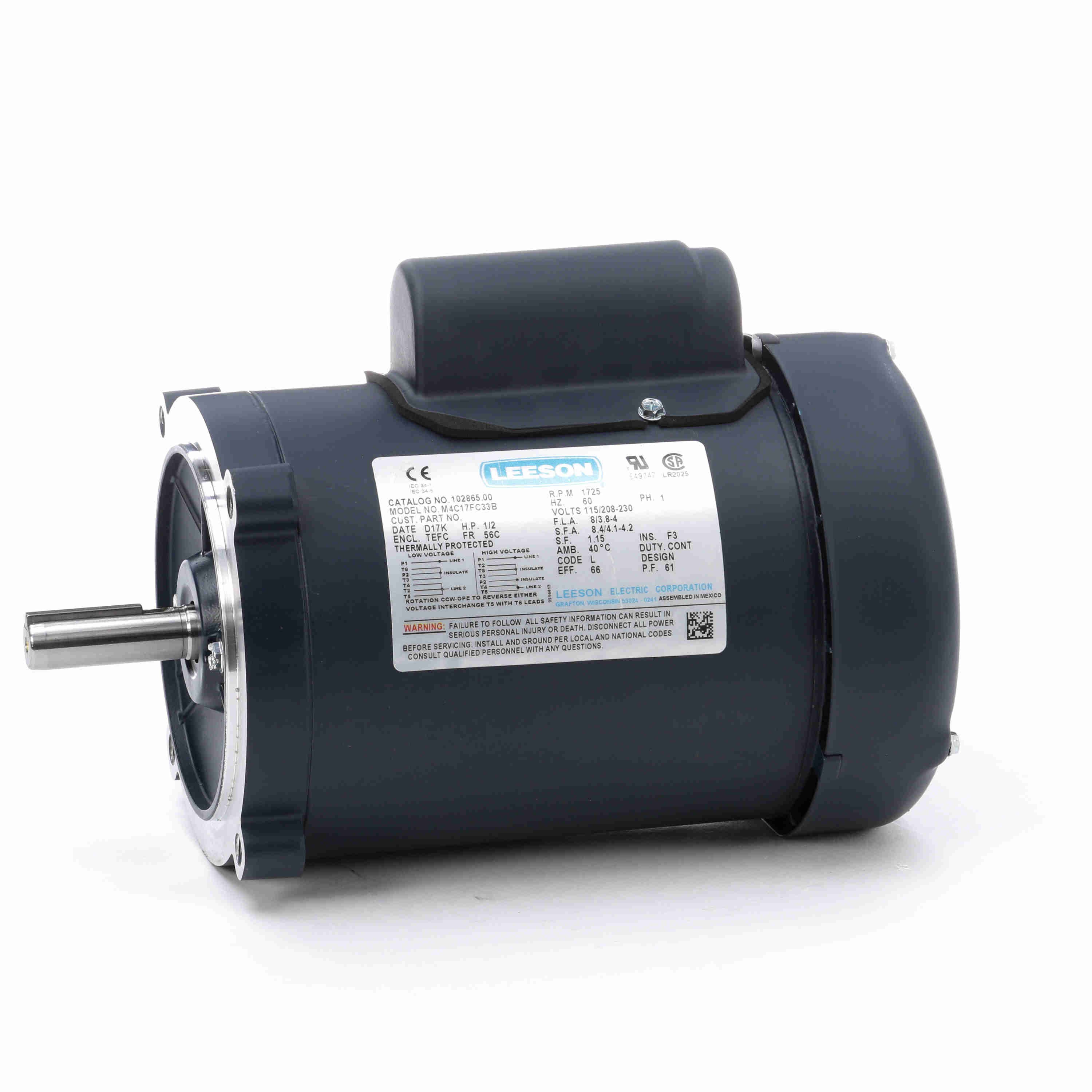

| D | 102865.00 | 115/208-230V | 1/2 hp | 8/3.8-4A | C Face, Footless | 1.15 | - | - | 56C | $829.91 | |

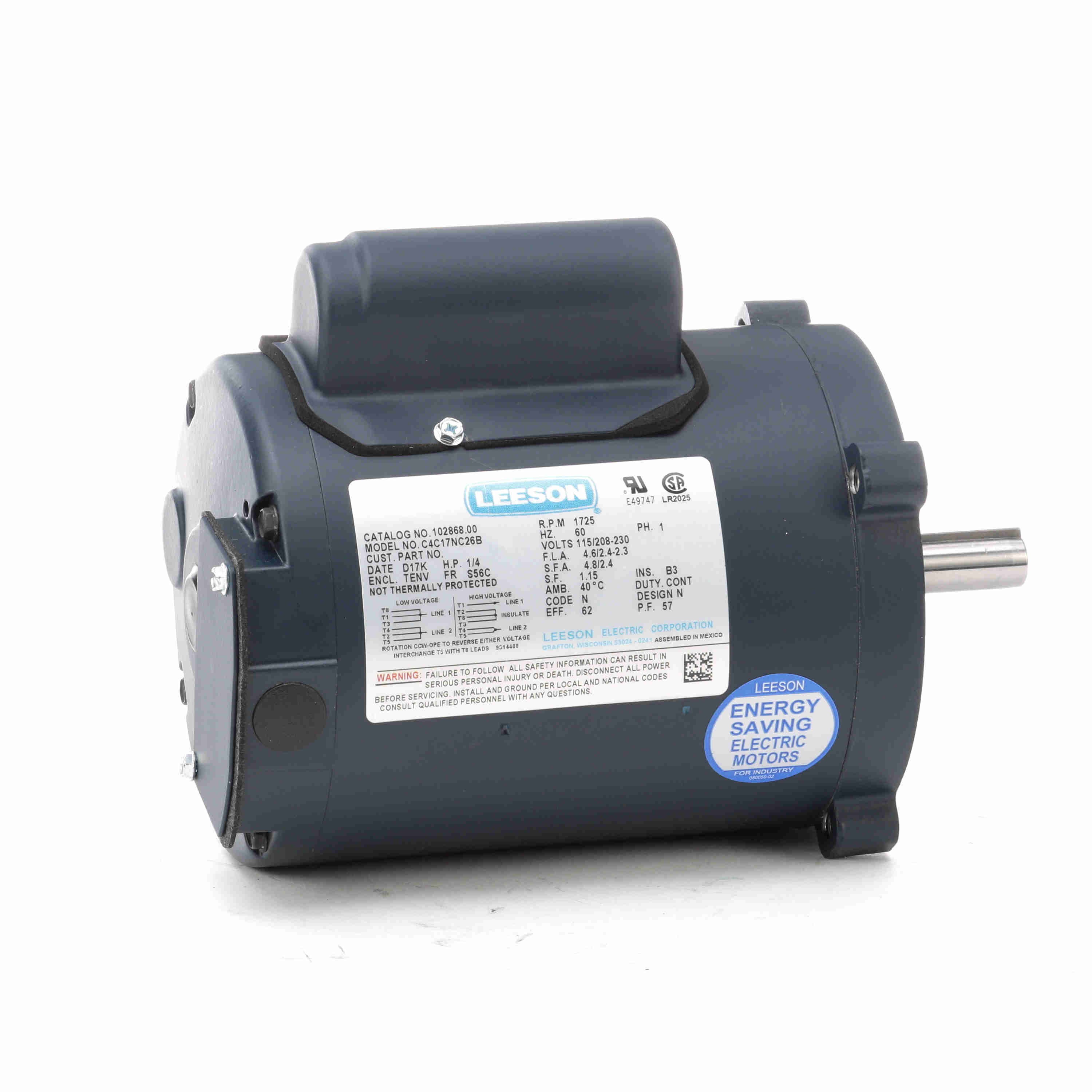

| E | 102868.00 | 115/208-230V | 1/4 hp | 4.6/2.4-2.3A | C Face, Footless | 1.15 | 1800 RPM | Capacitor Start | S56C | $437.07 | |

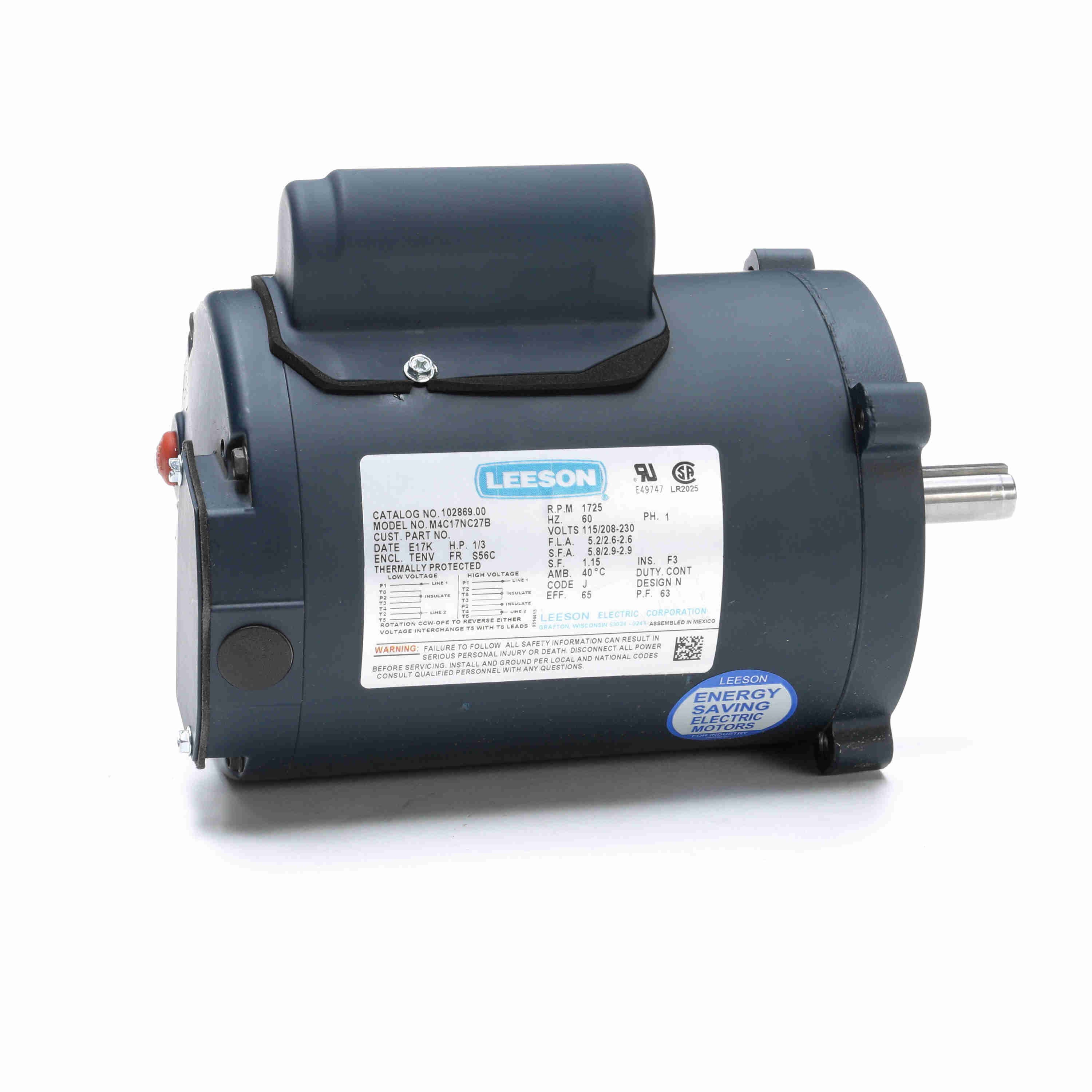

| F | 102869.00 | 115/208-230V | 33/100 hp | 5.2/2.6A | C Face, Footless | 1.15 | 1800 RPM | - | S56C | $493.96 | |

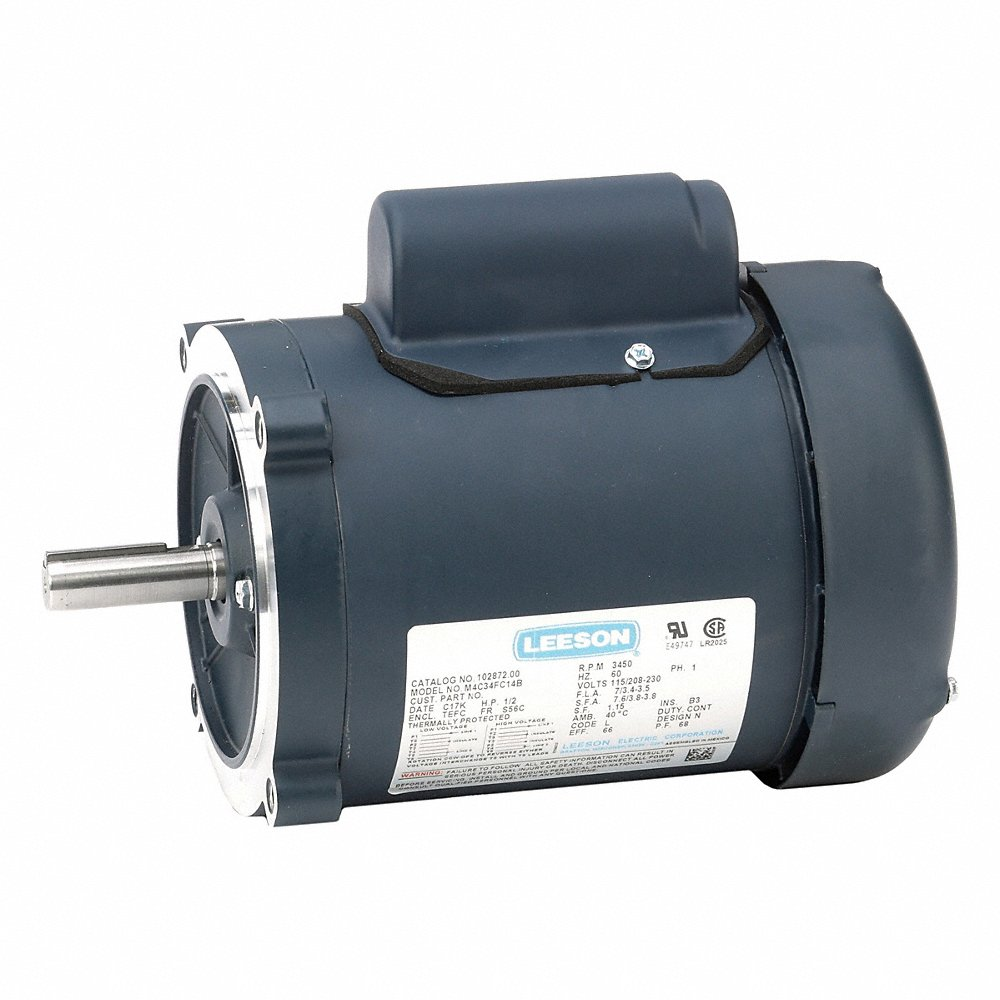

| G | 102872.00 | 115/208-230V | 1/2 hp | 7/3.4-3.5A | C Face, Footless | 1.15 | 3600 RPM | Capacitor Start | S56C | $695.01 |
