| Item | AC Gearmotor |
|---|---|
| Amps | 1.6/0.8A |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Length | 5" |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 1.6/0.8A |
| Gear Ratio | 95:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Includes | Conduit Box |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.33 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 15/79" |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11.42" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 18 RPM |
| Maximum Torque | 1089 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
|---|---|
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 7.13" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 18 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230/460V AC |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6 3/5" |
| Overall Length | 12.92" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 700 lbs.-ft. |
| Packaging | B |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 18 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 1089 lbs.-in. |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
| Brake Type | None |
| Thermal Protection | None |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 15.3 |
| Style | Model | Rotation | Overhung Load Capacity | Gear Ratio | Rpm | Insulation Class | Enclosure Type | Frame | Full Load Amps | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

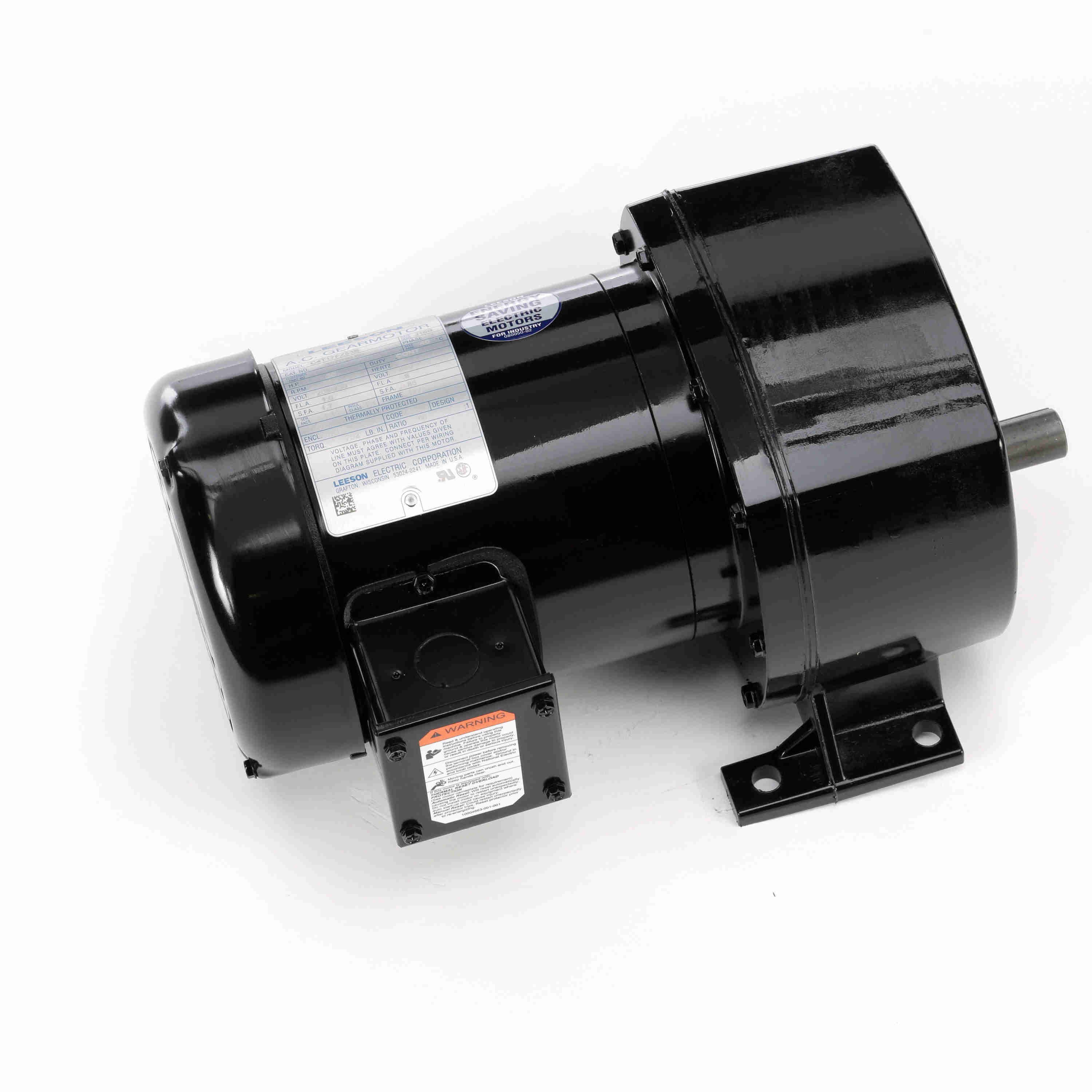

| A | 107026.00 | CW/CCW | 650 lbs.-ft. | 66:1 | 26 RPM | Class F | Tefc | 48Y | 1.6/0.8A | $1,547.49 | |

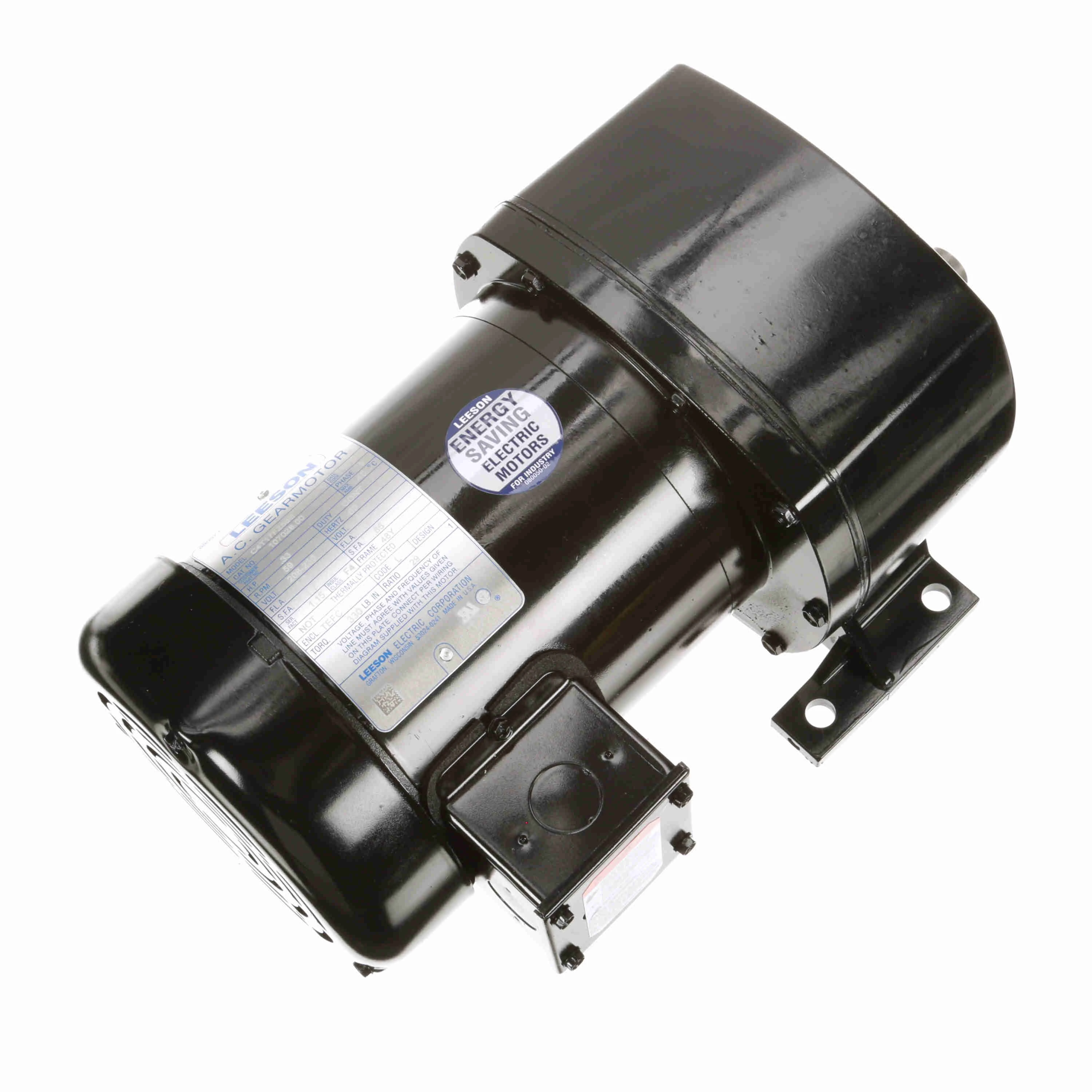

| B | 107028.00 | Reconn | - | - | 59 RPM | Class F4 | Totally Enclosed Fan Cooled | 48Y | - | - | RFQ
|

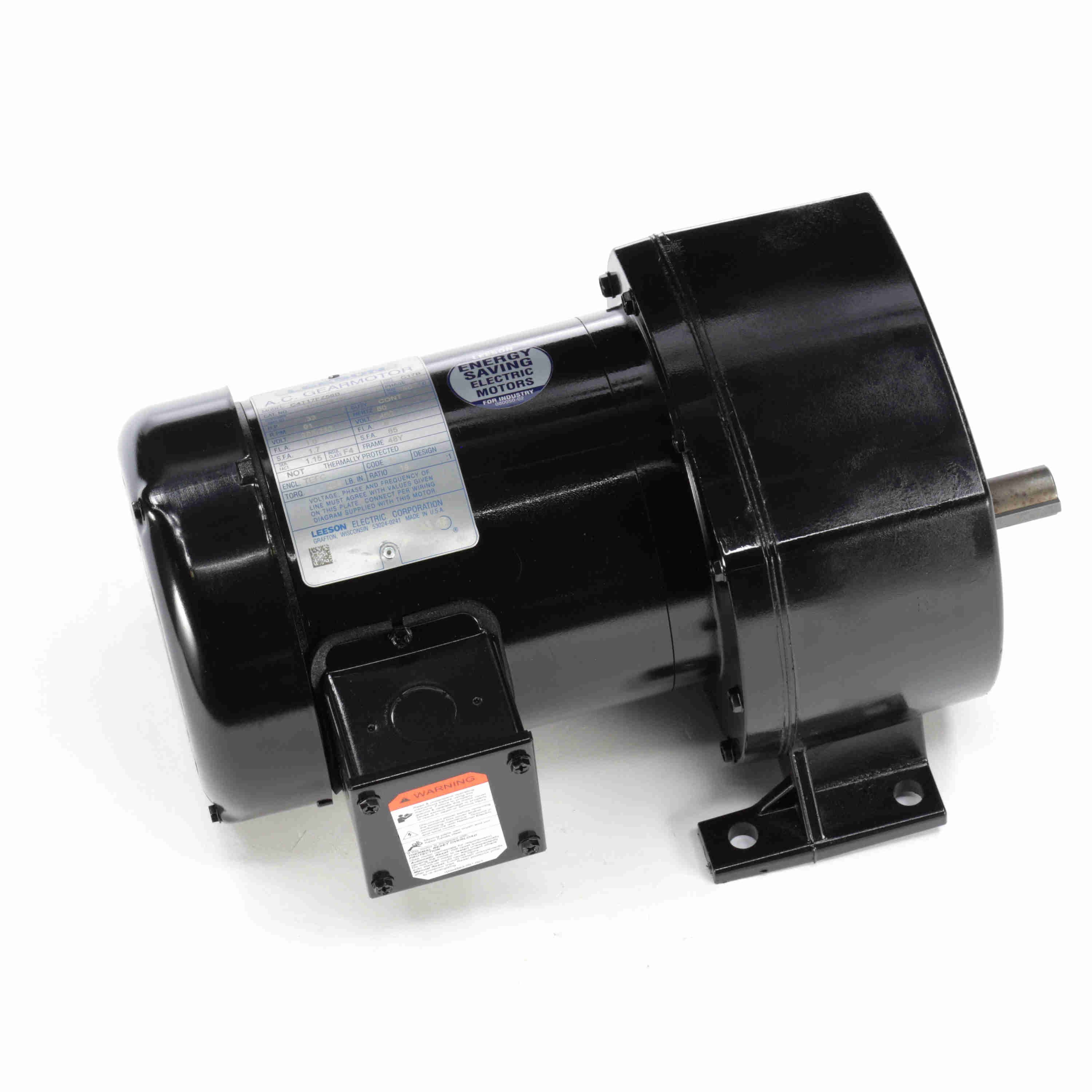

| C | 107029.00 | CW/CCW | 575 lbs.-ft. | 19:1 | 91 RPM | Class F | Tefc | 48Y | 1.6/0.8A | $2,050.74 | |

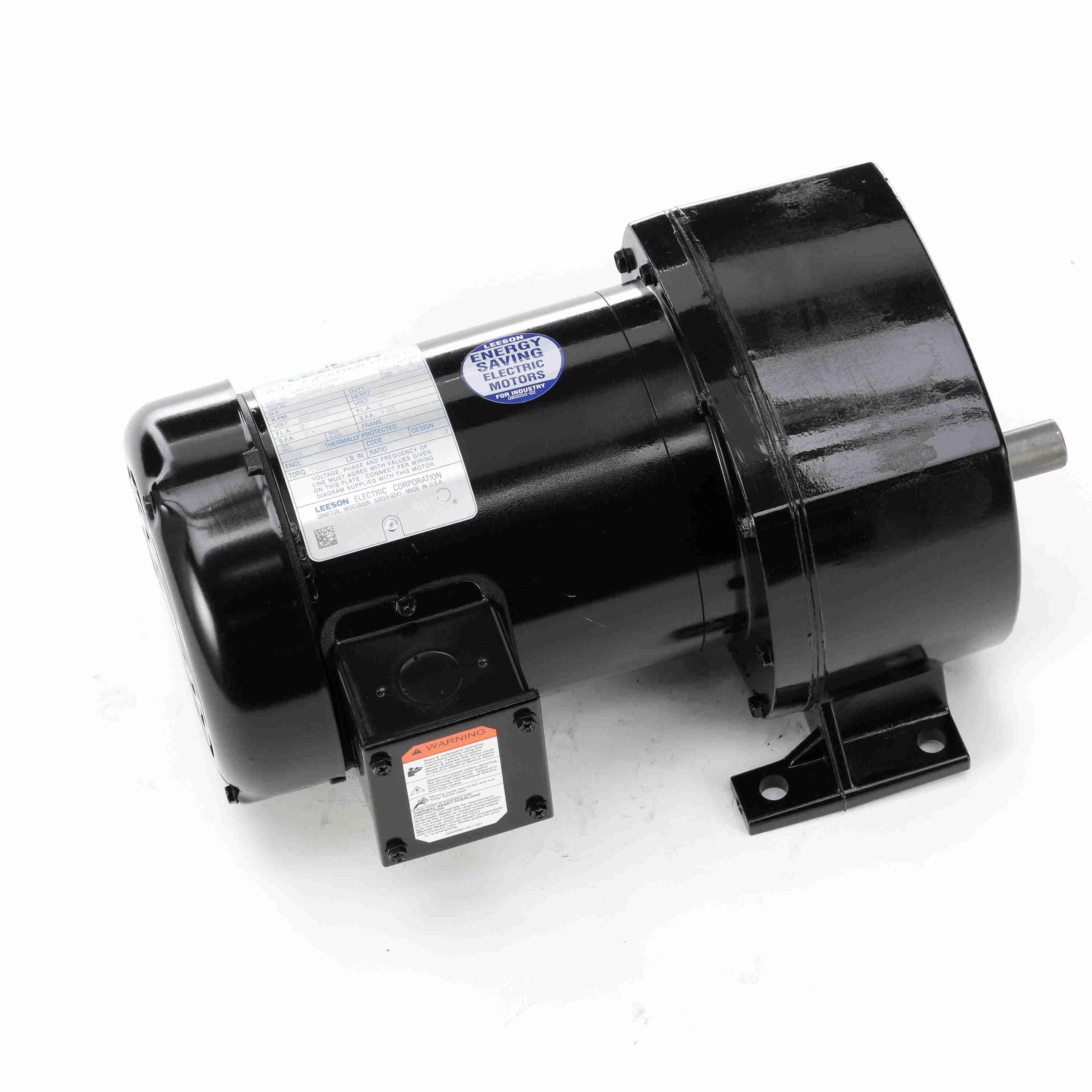

| D | 107032.00 | Reconn | - | - | 22 RPM | Class F | Tefc | 48Y | 1/2A | $1,633.46 | |
| E | 107033.00 | CW/CCW | 650 lbs.-ft. | 42:1 | 41 RPM | Class F | Tefc | 48Y | 2/1A | $2,268.45 | |

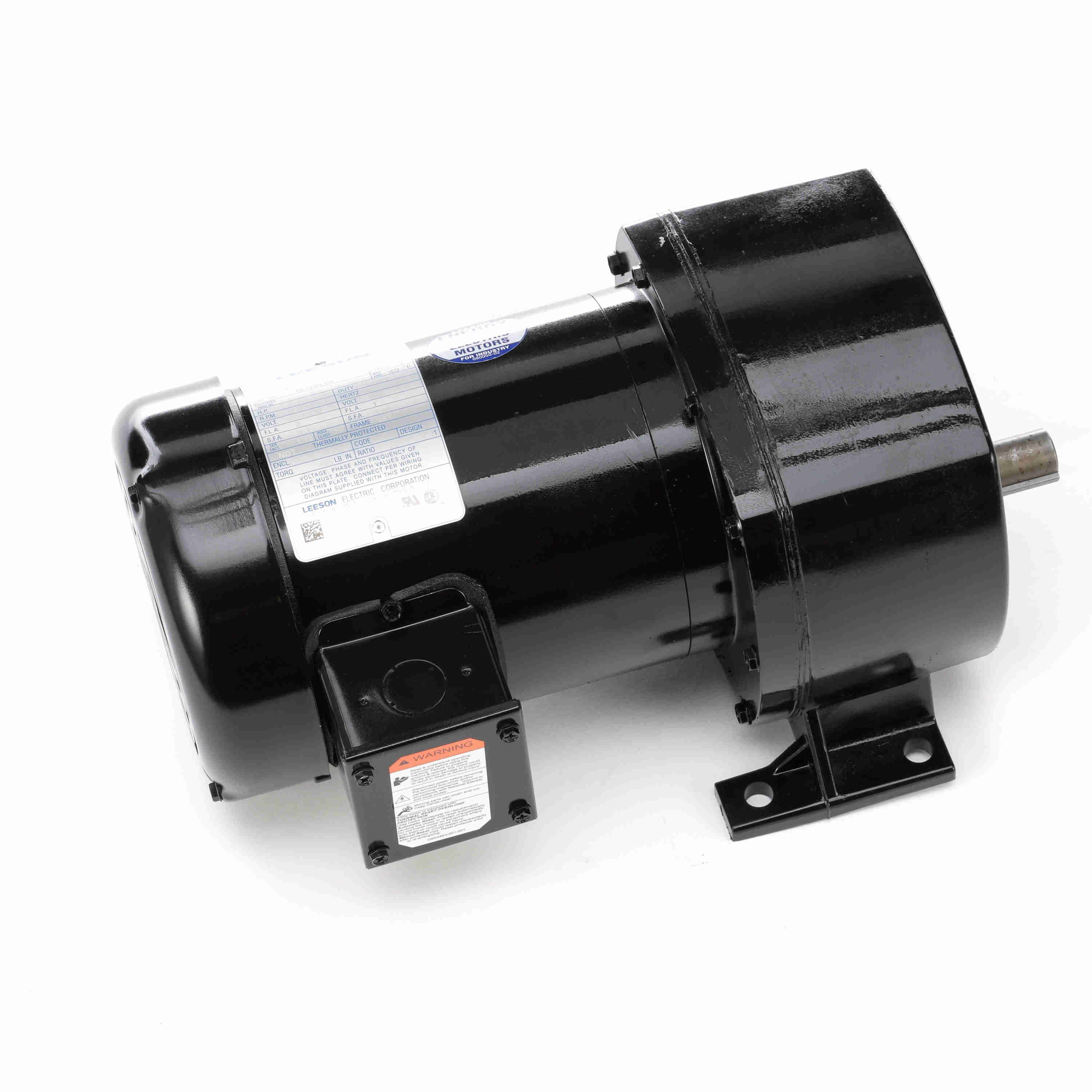

| F | 107034.00 | CW/CCW | 625 lbs.-ft. | 29:1 | 59 RPM | Class F | Tefc | 48Y | 2/1A | $1,609.41 | |
| G | 107035.00 | CW/CCW | 575 lbs.-ft. | 19:1 | 91 RPM | Class F | Tefc | 48Y | 2/1A | $1,609.41 |
