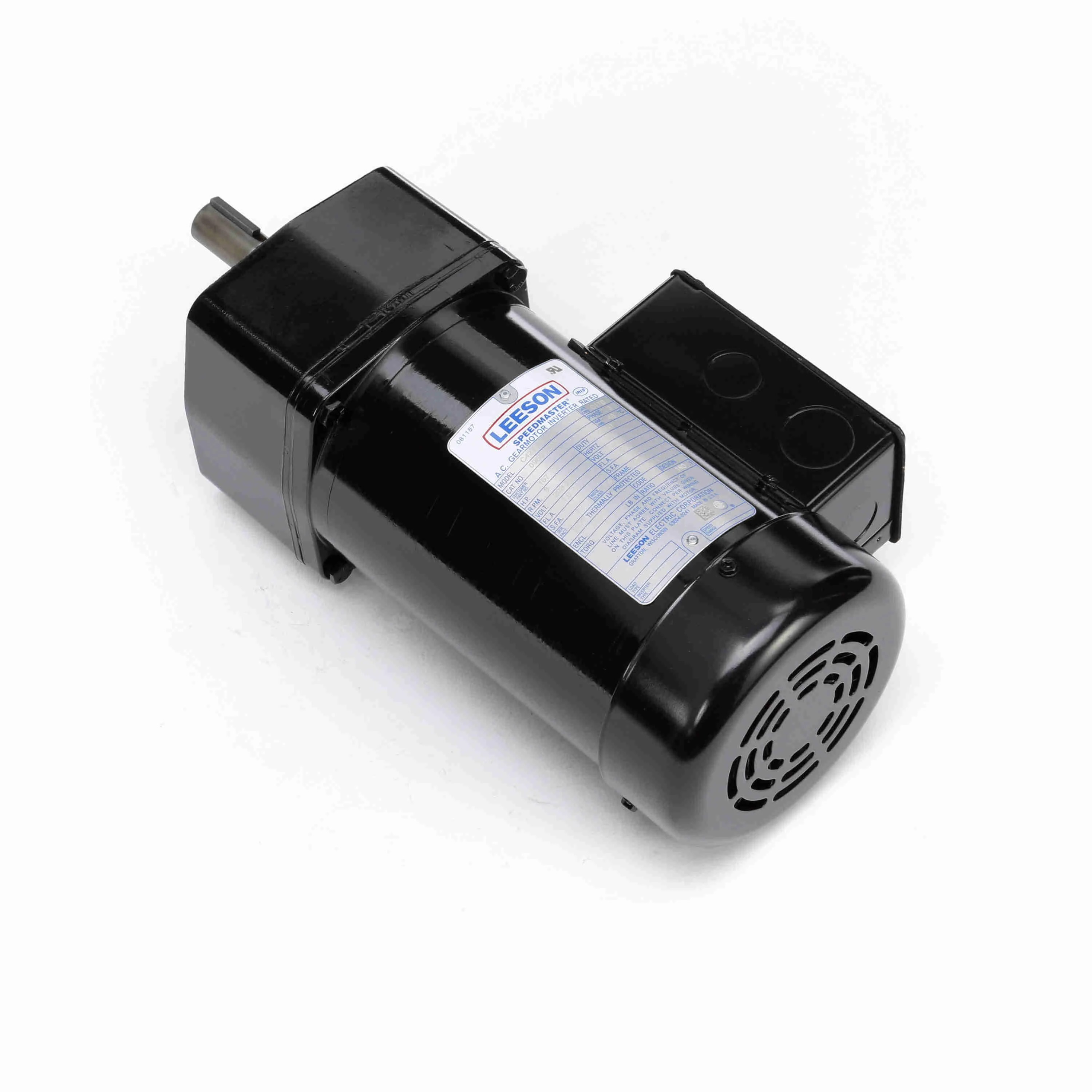

| Item | AC Gearmotor |
|---|---|
| Agma Gear Class | Class 9 |
| Amps | 1.2-1.4/0.6A |
| Application | Inverter Duty |
| Bearing Type | Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66.2% |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame Length | 6" |
| Frame Type | 42Y |
| Frequency | 60 Hz |
| Full Load Amps | 1.2/0.6A |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Precision Machined And Hardened |
| Gear Ratio | 58:1 |
| Height | 10 22/25" |
| Housing Material | Rolled Steel |
| Housing Material Finish | Black High Gloss Enamel |
| Hp | 1/4 hp |
| Input Hp | 1/4 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Keyway Size | 0.18" x 1" |
| Keyway Type | 0.18 Sq. in. x 1" |
| Kva Code | L |
| Kw | 0.19 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11.45" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 29 RPM |
| Maximum Torque | 300 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
|---|---|
| Motor Frame Designation | 42Y |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Nameplate Rpm | 29 RPM |
| No Load Rpm | 31 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230/460V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 4.97" |
| Overall Length | 13.07" |
| Overall Width | 4.29" |
| Overhung Load | 327 lbs. |
| Overhung Load Capacity | 327 lbs.-ft. |
| Phase | 3 |
| Power Factor | 56.7 |
| Rotation | CW/CCW |
| Rpm | 29 RPM |
| Rpm Range | 16-30 RPM |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Ce Y, Csa Y, Ul |
| Thermal Protection | No Protection |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
| Brake Type | None |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| HS Code | 8501514020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 12.15 |
| Style | Model | Gear Ratio | Rpm | Full Load Amps | Overhung Load | Rpm Range | No Load Rpm | Maximum Output Speed | Power Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 096065.00 | 180:1 | 9 RPM | 1/0.5A | 491 lbs. | 0-15 RPM | 10 RPM | 9 RPM | 55 | $1,308.38 |
