| Item | Pressure Switch |
|---|---|
| Application | Fan Cycling |
| Closing Pressure | 565 psi |
| Contact Form | SPST |
| Control Type | High Cutout |
| Electrical Connection Type | Hardwired |
| Element Type | Diaphragm |
| Function | High Pressure Applications |
| Input Sensor Type | Pressure Sensor |
| Max. Pressure Range | 665 psi |
| Maximum Operating Temperature | 150°F |
| Min. Pressure Range | 565 psi |
| Minimum Operating Temperature | -20°F |
| Mounting | Direct |
| Open Pressure | 665 psi |
| Overall Depth | 2 1/2" |
| Pressure Connection Gender | Female |
|---|---|
| Pressure Connection Size | 1/4" |
| Pressure Connection Type | Flare |
| Pressure Range Adjustability | Fixed |
| Pressure Setting | High Or Low |
| Process Connection | 1/4" Female Flare |
| Product Type | Single Pressure Control |
| Rated Voltage | 120/240V AC |
| Rated Voltage Range | 12-120/208-240V AC |
| Reset | Auto |
| Reset Type | Automatic Reset |
| Series | P100 Series |
| Switch Type | SPST |
| Time Delay Setting | Not Applicable |
| Type | High Pressure |
| Standards | C-UL: FILE SA516, CCN SDFY8, US-UL: FILE SA516, CCN SDFY2 |
| Height (cm) | 3.56 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 10.67 |
| HS Code | 8536509065 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.045 |
| Style | Model | Switch Action | Reset | Mounting | Differential Pressure | Application | Type | Open Pressure | Closing Pressure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P100AP-332C | Open On Fall | Auto | Direct Schrader Valve | 100 psi | Fan Cycling | Low Pressure | 300 psi | 400 psi | $64.33 | |

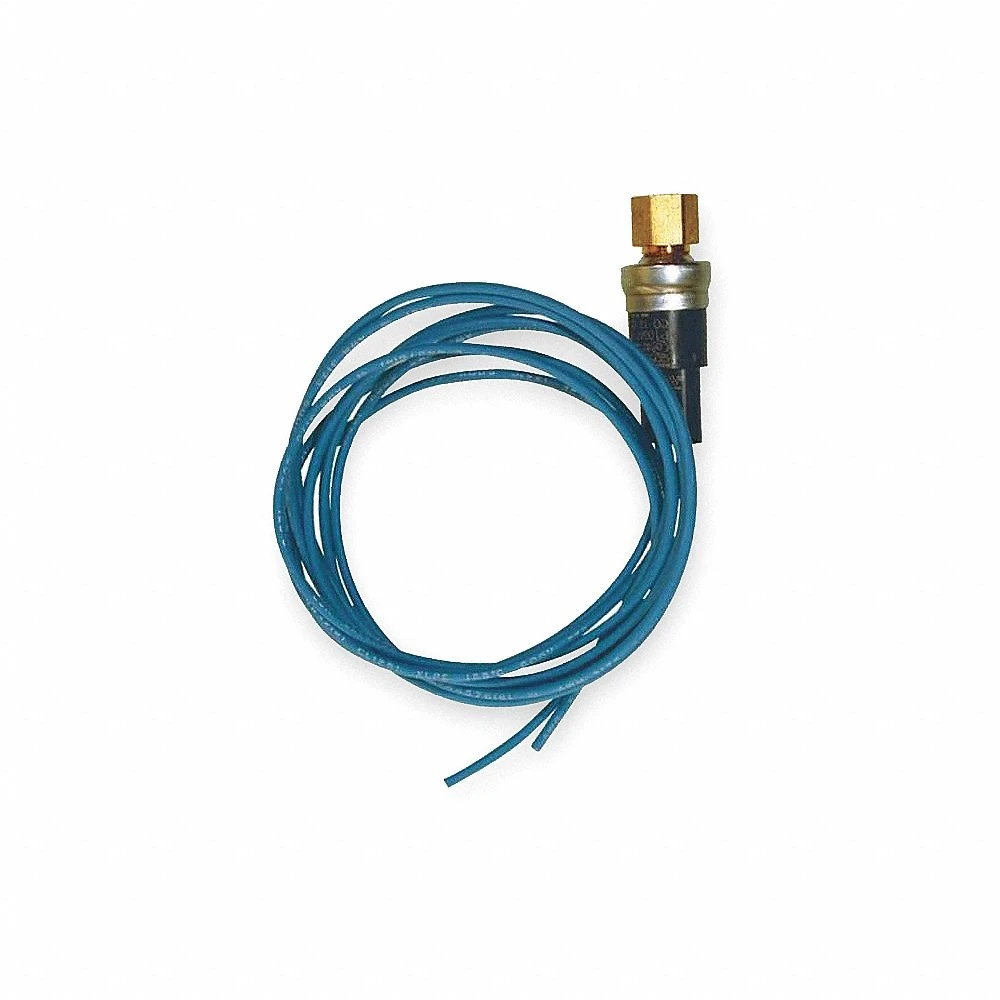

| B | P100AP-201C | Open On Fall | Auto | Direct Schrader Valve | 22 psi | Fan Cycling | Low Pressure | 10 psi | 32 psi | $63.70 | |
| B | P100DA-81C | Open On Rise | Manual | Direct Schrader Valve | - | Fan Cycling | High Pressure | 630 psi | - | $92.93 | |
| C | P100AA-2C | Opens On Low Pressure | Auto | Direct | - | Fan Cycling | Low Pressure | 35 psi | 60 psi | $93.46 | |
| C | P100AA-3C | Open On Fall | Auto | Direct | - | Fan Cycling | Low Pressure | 150 psi | 225 psi | $140.53 | |
| C | P100AC-1C | Open On Fall | Auto | Direct | - | Low Limit | Low Pressure | 5 psi | 20 psi | $66.61 | |
| C | P100AC-2C | Open On Fall | Auto | Direct | - | Fan Cycling | Low Pressure | 15 psi | 30 psi | $71.16 |
