| Item | Flush Mount Receptacle |
|---|---|
| Afci | No |
| Amps | 50A |
| Color | Black |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired Screw Terminals |
| Cover Type | No Cover |
| Current Rating | 50A |
| Duty | Heavy Duty |
| Face Diameter | 2.1" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 2.23" |
| Horsepower Rating | 3 hp |
| Housing Color | Black |
| Housing Material | Composite, Thermoplastic |
| Ip Rating | IP20 |
| Length | 3 7/25" |
| Material | Composite, Thermoplastic |
| Max. Hp | 3 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 4 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Hole Center-to-center Width | 1.3" |
|---|---|
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 6-50R |
| Nema Receptacle Configuration | NEMA 6-50R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 2.2" |
| Phase | 1 |
| Polarized | Yes |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified, Federal Specification, Ul Listed |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250V |
| Voltage Rating | 250V AC |
| Wattage | 12500 W |
| Width | 2 1/4" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 4 AWG |
| Wiring Method | Back And Side |
| Height (cm) | 5.66 |
|---|---|
| Length (cm) | 8.33 |
| Width (cm) | 5.72 |
| HS Code | 8536698000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.2025 |
| Style | Model | Current Rating | Nema Rating | Wattage | Max. Hp | Nema Receptacle Configuration | Amps | Mount Hole Center-to-center Width | Receptacle Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

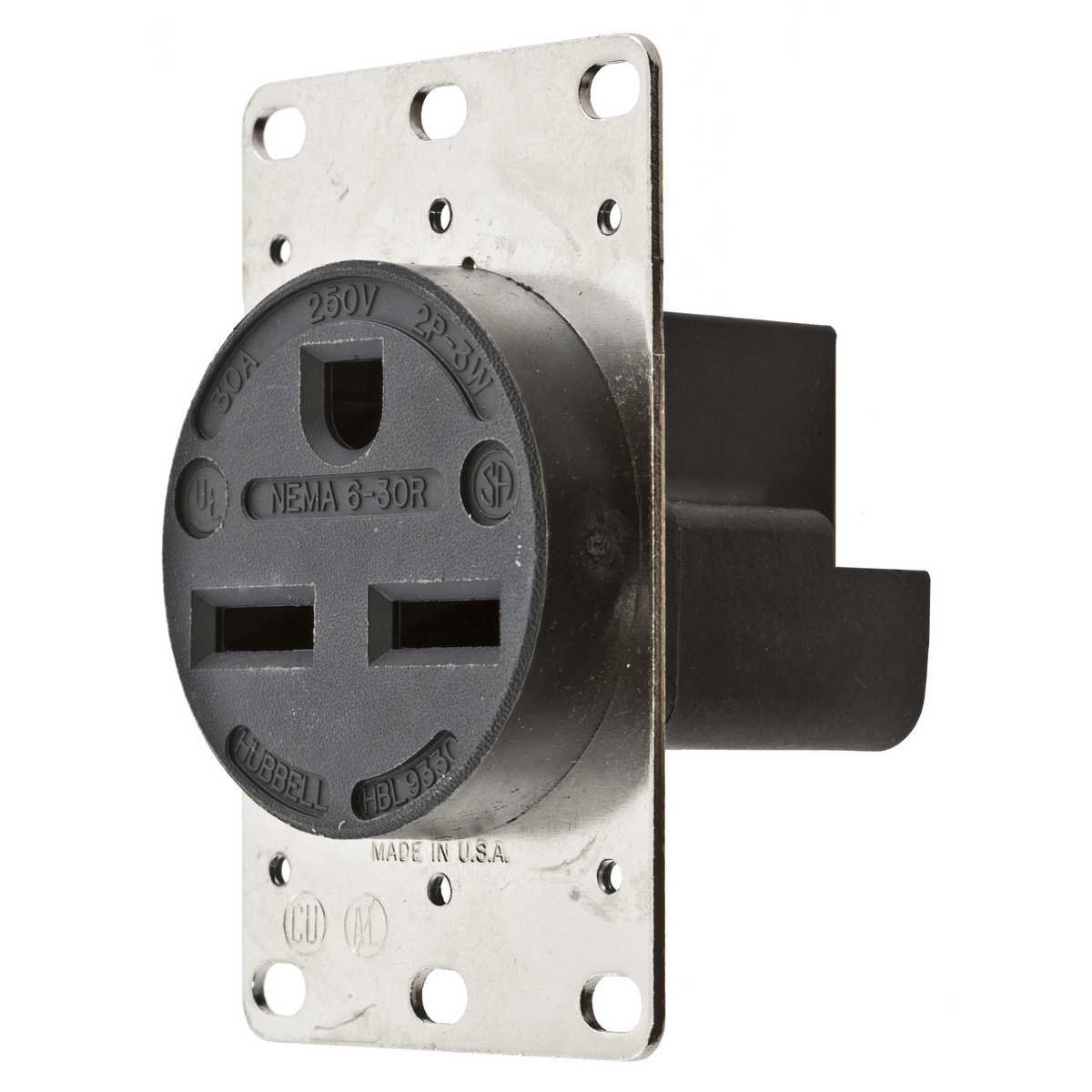

| A | HBL9330 | 30A | NEMA 6-30R | 7500 W | 2 hp | NEMA 6-30R | 30A | 1.8" | Single | $89.47 |
