| Item | Premium Miniature Snap Switch |
|---|---|
| Ac Contact Rating | 21A @ 277V |
| Actuation Type | Pin Plunger |
| Actuator Length | Not Applicable |
| Actuator Style | Plunger |
| Actuator Type | Pin Plunger |
| Actuator Type - Snap Action Switch | Pin, Plunger |
| Amps Rating | 21A |
| Body Depth | 0.4" |
| Body Height | 0.63" |
| Body Material | Polyester |
| Body Width | 1.14" |
| Center Mounting Hole Distance | 0.88" |
| Depth | 2/5" |
| Depth - Snap Action Switch | 2/5" |
| Differential Travel | 0.002" to 0.01" |
| Differential Travel - Maximum | 0.01" |
| Differential Travel - Minimum | 0.002" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Height | 0.63" |
| Height - Snap Action Switch | 0.63" |
| Length | 1.14" |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
|---|---|
| Max. Operating Force | 7.9 ozf |
| Max. Pretravel | 0.047" |
| Maximum Operating Force | 7.9 ozf |
| Mounting Dimension | 0.41" x 0.87" |
| Mounting Hole Diameter | 1/8" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 7.9 oz. |
| Operating Temp. | -40°F to +180°F |
| Operating Temperature - Maximum | 365°F |
| Operating Temperature - Minimum | -40°F |
| Over Travel | 0.05" |
| Overall Depth | 0.4" |
| Overall Height | 0.63" |
| Overall Width | 1.14" |
| Pre-travel | 0.047" |
| Release Force | 0.7 ozf |
| Series | V7 Series |
| Terminal Type | Quick Connect |
| Voltage | 277V AC |
| Watertight | No |
| Standards | CSA, ENEC, ROHS, UL LISTED |
| Height (cm) | 3.05 |
|---|---|
| Length (cm) | 10.67 |
| Width (cm) | 9.91 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.0045 |
| Style | Model | Ac Contact Rating | Release Force | Max. Pretravel | Over Travel | Actuator Length | Differential Travel | Amps Rating | Body Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | V7-1B17D8 | 11A @ 250V | 0.86 ozf | 0.047" | 0.115" | Not Applicable | 0.002" to 0.01" | 3A | Polyester | $6.81 | |
| B | V7-1B37D8 | - | 0.86 oz. | 1.19 mm | 1.27 mm | 1.14" | 0.01" | 3A | PCT Polyester Thermoplastic | $5.77 | |
| C | V7-1C17D8 | 15A @ 125V | 0.86 ozf | 0.047" | 0.05" | Not Applicable | 0.002" to 0.01" | 15A | Polyester | $7.26 | |
| D | V7-1C27E9 | 15A @ 250V | 0.86 ozf | 1.19 mm | 0.05" | 1.14" | 0.01" | 15A | Polyester | $8.83 | |
| E | V7-1S17D8 | 0.1A @ 125V | 0.86 ozf | 0.047" | 0.05" | 1.14" | 0.002" to 0.01" | 0.1A | Polyester | $10.60 | |
| F | V7-1V29E9 | 21A @ 277V | 0.7 ozf | 1.19 mm | 0.05" | 1.14" | 0.01" | 21A | Polyester | $15.70 | |

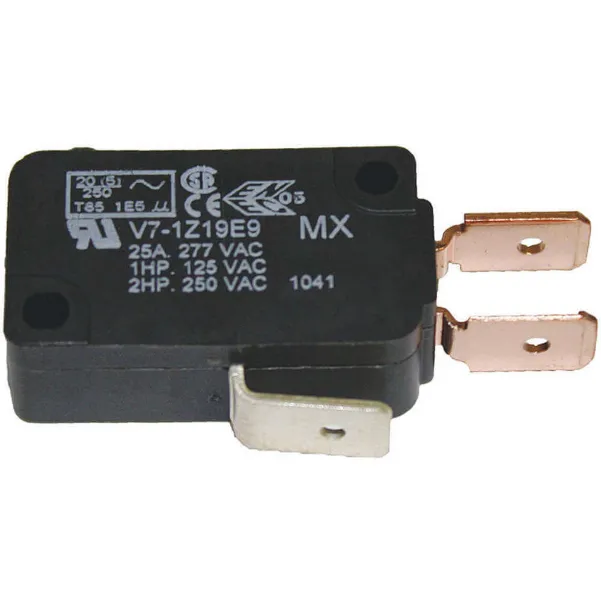

| G | V7-1Z19E9 | 25A @ 125V | 0.7 ozf | 0.047" | 0.05" | Not Applicable | 0.01" | 25A | Polyester | $10.43 |
