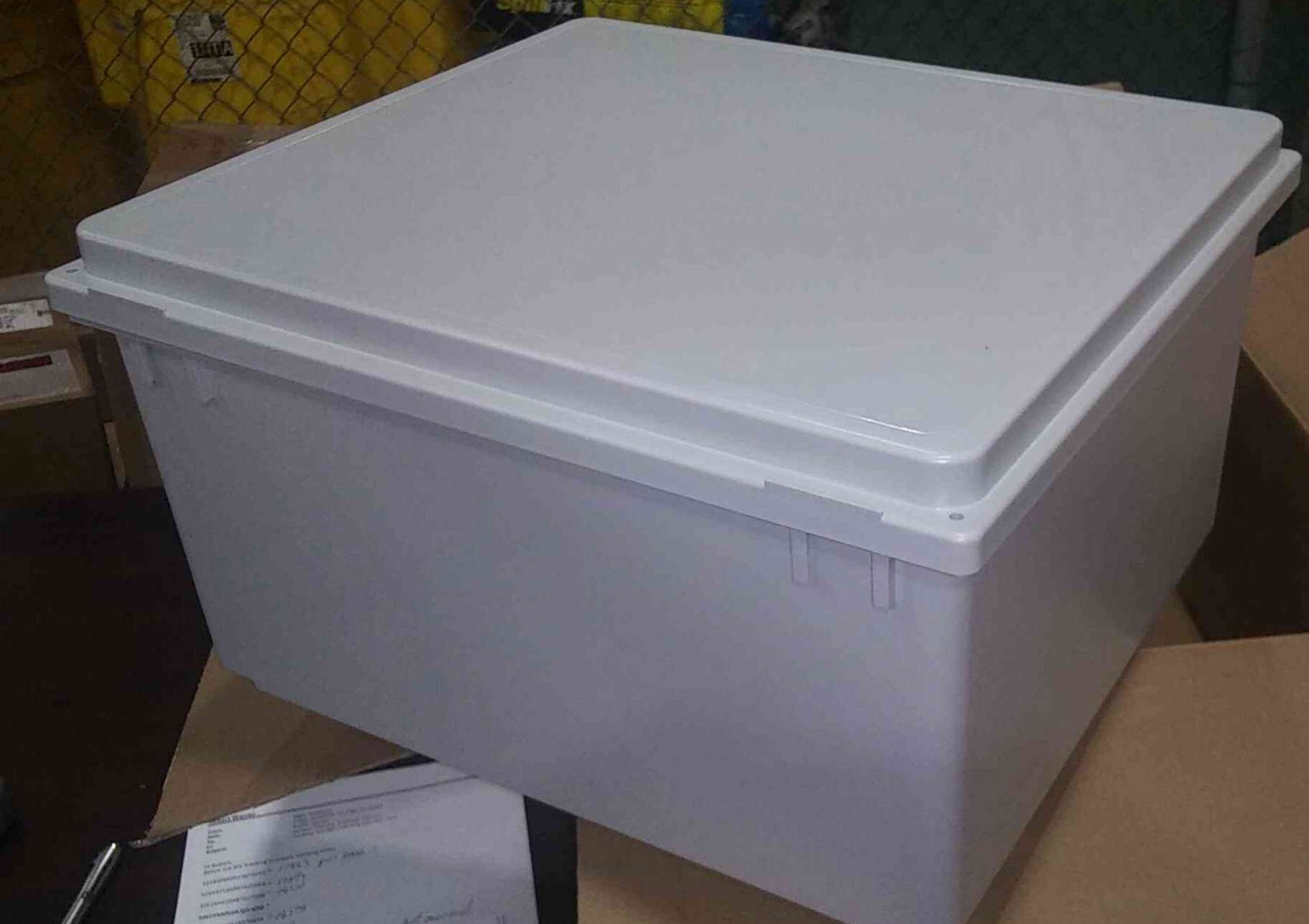

| Item | Enclosure |
|---|---|
| Basic Material | Non Metallic |
| Body Material Thickness | 0.13" |
| Closure Method | Quick Release Latch |
| Color | Light Gray |
| Compatible Panel Model Number | A16P14AL |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Cover Type | Hinged |
| Depth | 8.35" |
| Enclosure Cover Features | Quick Release Latches |
| Enclosure Height | 16.02" |
| Enclosure Material | Polyester |
| Enclosure Width | 14.01" |
| Environment | Washdown And Corrosion Resistant |
| Finish | Smooth Matte |
| Gasket | Polyurethane |
| Gasket Material | Polyurethane |
| Includes | Clamp, Mounting Feet |
|---|---|
| Ip Rating | IP66 |
| Knockouts | Not Included |
| Knockouts / No Knockouts | No Knockouts |
| Mounting | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nominal Depth | 8" |
| Nominal Height | 16" |
| Nominal Width | 14" |
| Overall Depth | 8.35" |
| Overall Height | 16.58" |
| Overall Width | 14.58" |
| Panel Height | 14.75" |
| Panel Width | 12.88" |
| Product Type | Enclosure |
| Standards | CUL LISTED PER CSA C22.2 NO 94, ENCLOSURE FLAMMABILITY EVALUATED PER UL 508A, FILE NO E61997, IEC 60529, MOUNTING BRACKETS REQUIRED TO MEET UL/CSA EXTERNAL MOUNTING REQUIREMENTS, NEMA/EEMAC TYPE 4, 4X, 12, 13, TYPE 4, 4X, 12, 13, UL 508A LISTED, WINDOW FLAMMABILITY EVALUATED PER UL 508A |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 43.82 |
| Width (cm) | 40.64 |
| HS Code | 8538906000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 4.41 |
| Style | Model | Enclosure Width | Enclosure Height | Depth | Cover Type | Enclosure Material | Mounting | Color | Knockouts / No Knockouts | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | A10106PHC | 10.05" | 10.05" | 6.38" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $245.44 | |
| A | A1084PHC | 8 3/25" | 10 3/25" | 4.38" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $225.54 | |
| A | A12106PHC | 10 2/25" | 12 2/25" | 6.35" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $257.20 | |
| A | A14128PHC | 12.01" | 14.02" | 8.35" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $295.21 | |
| A | A181610PHC | 15.94" | 17.95" | 10.35" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $403.49 | |
| A | A664PHC | 6 3/25" | 6 3/25" | 4.38" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $173.56 | |
| A | A864PHC | 6 3/25" | 8 3/25" | 4.38" | Hinged | Polyester | Wall | Light Gray | No Knockouts | $180.56 |
